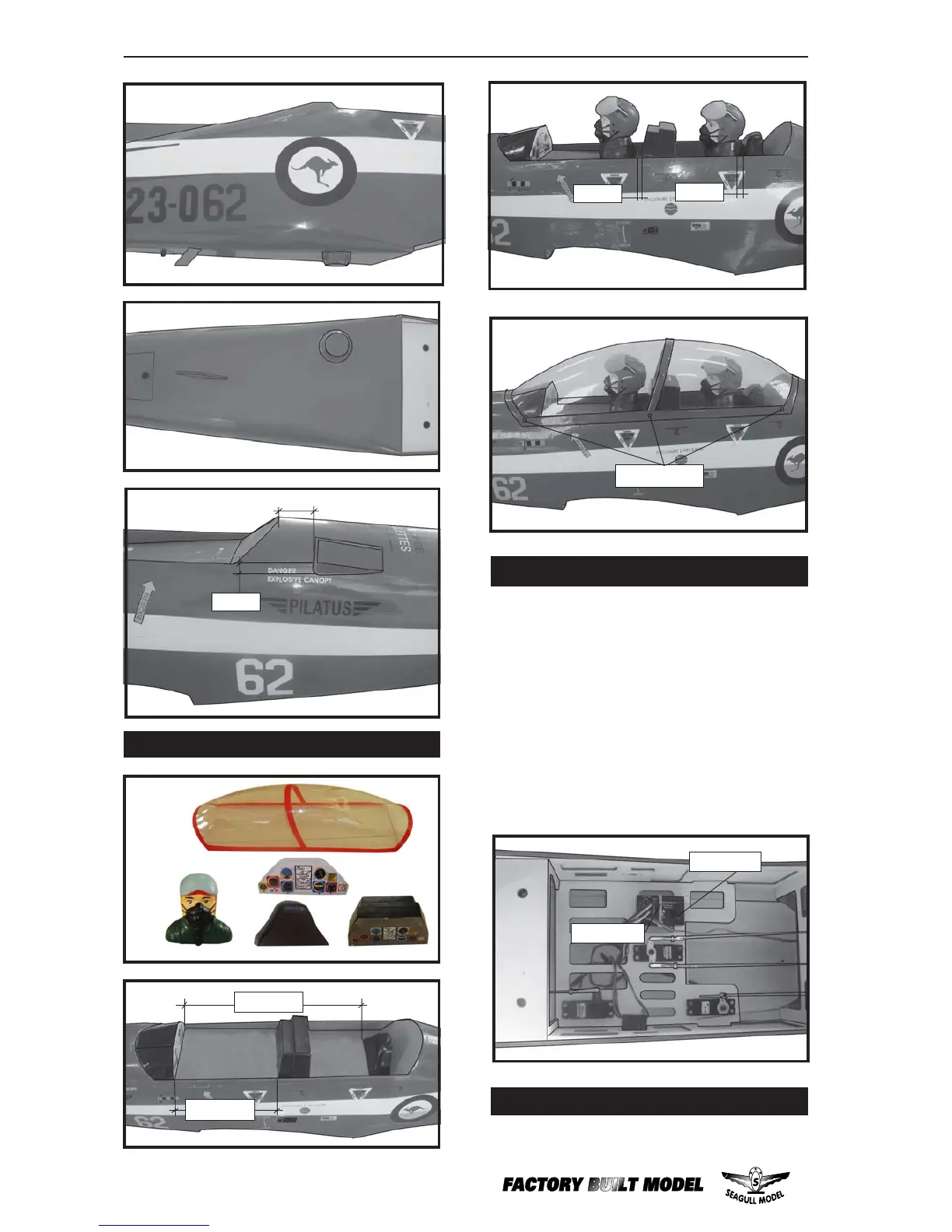

PC-9. Instruction Manual.
20
 3) Route the antenna in the antenna tube
inside the fuselage and secure it to the bot-
tom of fuselage using a plastic tape. See pic-
ture below.
 1) Plug the servo leads and the switch
lead into the receiver. Plug the battery pack
lead into the switch also.
 2) Wrap the receiver and battery pack in
the protective foam rubber to protect them
from vibration.
INSTALLING THE RECEIVER.
Receiver.
Tie Wrap.
Bolt the wing to fuselage.
ATTACHMENT WING - FUSELAGE.
INSTALLTION PILOT.
45mm.
363mm.
5mm.
180mm.
5mm.
5mm.
M2 x 6mm.
