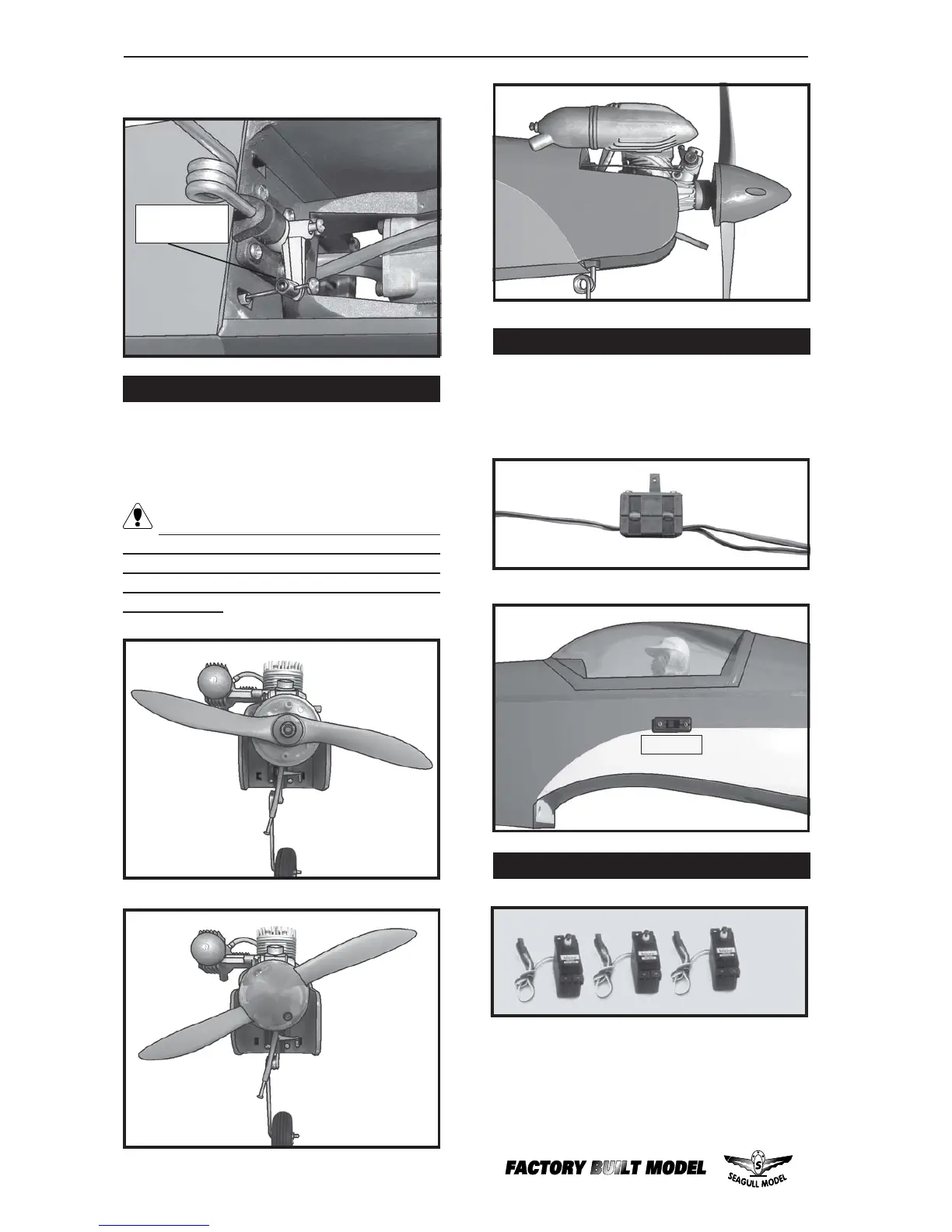

SEAGULL 40 LOW WING TRAINER. Instruction Manual.
10
1) Install the rubber grommets and brass
collets onto the elevator, rudder and throttle
servos. Test fit the servos into the preinstalled
servo tray. Because the size of servos dif-
fer, you may need to adjust the size of the
precut openings in the tray.
INSTALLING THE FUSELAGE SERVOS.
1) Install the switch into the precut hole
in the fuselage side. Use the two screws pro-
vided with the switch to secure it in place.
INSTALLING THE SWITCH.
Switch.
Install the pushrod wire as shown.
INSTALLING THE SPINNER.
Install the spinner backplate, propeller and
spinner cone. The spinner cone is held in
place using two 3 x 15mm wood screws.
The propeller should not touch any part
of the spinner cone. If it does, use a sharp
modeling knife and carefully trim away the
spinner cone where the propeller comes in
contact with it.
Adjustable
Connector.
