SEAGULL 40 LOW WING TRAINER. Instruction Manual.
14

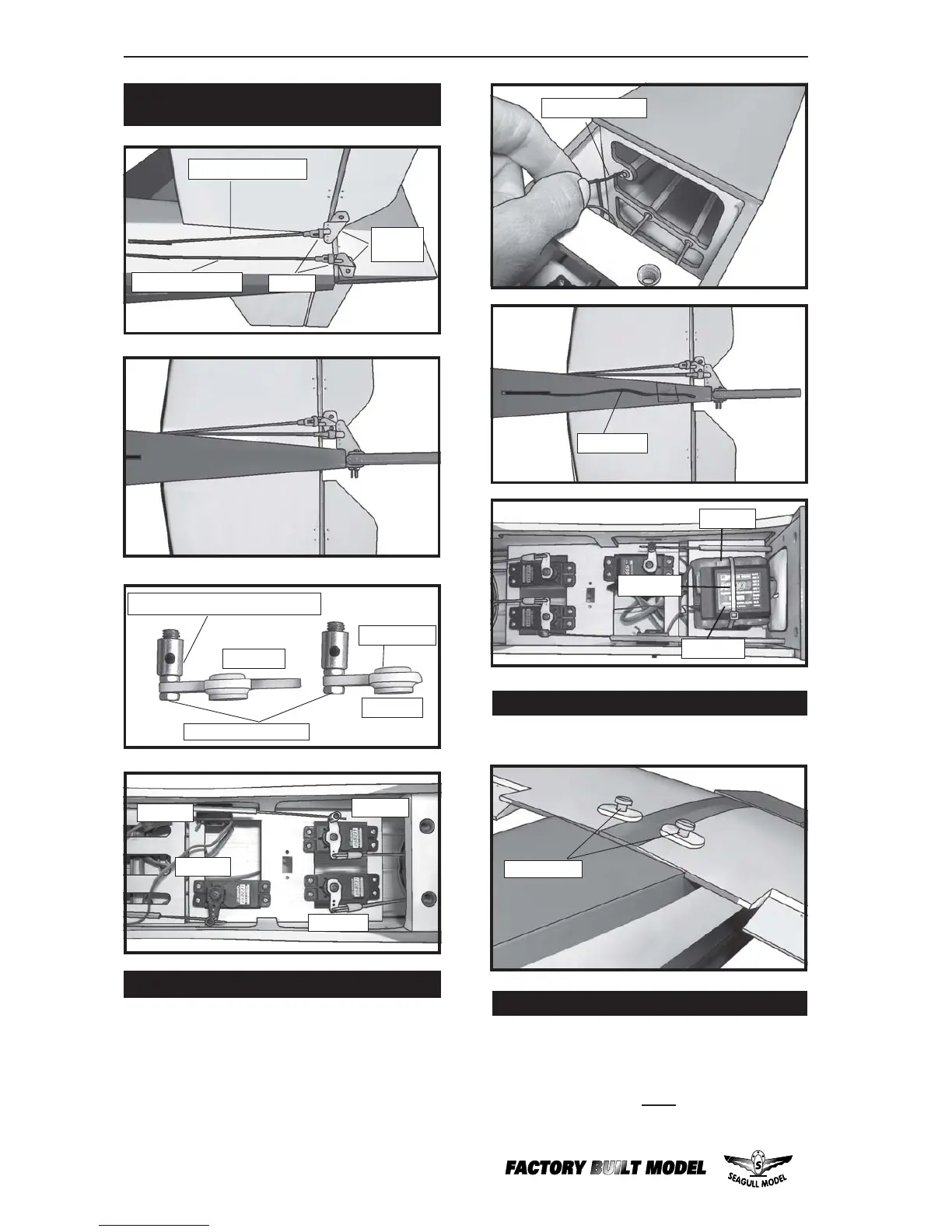

ATTACHMENT WING - FUSELAGE.
See picture below:
BALANCING.
1) It is critical that your airplane be bal-
anced correctly. Improper balance will cause
your plane to lose control and crash. The cen-
ter of gravity is located
9cm back from the lead-
ing edge of the wing, measured at the wing
tip.
1) Plug the five servo leads and the switch
lead into the receiver. Plug the battery pack
lead into the switch also.
2) Wrap the receiver and battery pack in
the protective foam rubber to protect them
from vibration
ELEVATOR-RUDDER PUSHROD
INSTALLATION.
Elevator pushrod.
Rudder pushrod.
Clevis.
Control
horn.
Antenna.
Antenna wire.
Receiver.
Battery.
Tie wrap.
Throttle.
Elevator.
Rudder.
Switch.
Wing bolt.
INSTALLING THE RECEIVER AND BATTERY.
Adjustable Servo connector.
Servo arm.
(1 PCS).
(2 PCS).
Thread locker glue.
