Installation Instructions and Owner's Manual
6. Using a torque wrench, tighten the nuts to the manufacturer’s
recommended torque.
Record the torque values here for future reference.
ft-lbs. Nm.
4 X WASHER
JACKPLATE TRANSOM
BRACKET
4 X BOLT
4 X WASHER OR TRANSOM
STIFFENER
NOTE
ALL HARDWARE TO BE SUPPLIED
OR APPROVED BY THE OUTBOARD
ENGINE MANUFACTURER
TRANSOM
4 X NUT WITH NYLON
LOCKING FEATURE
6 X WASHER
JACKPLATE TRANSOM
BRACKET
6 X BOLT
6 X WASHER OR TRANSOM
STIFFENER
NOTE
FOR INSTALLATIONS OF 10" OR 12"
SETBACK JACKPLATES, OR AN
OUTBOARD ENGINE WITH OUTPUT
GREATER THAN 250 HP
TRANSOM
6 X NUT WITH NYLON
LOCKING FEATURE

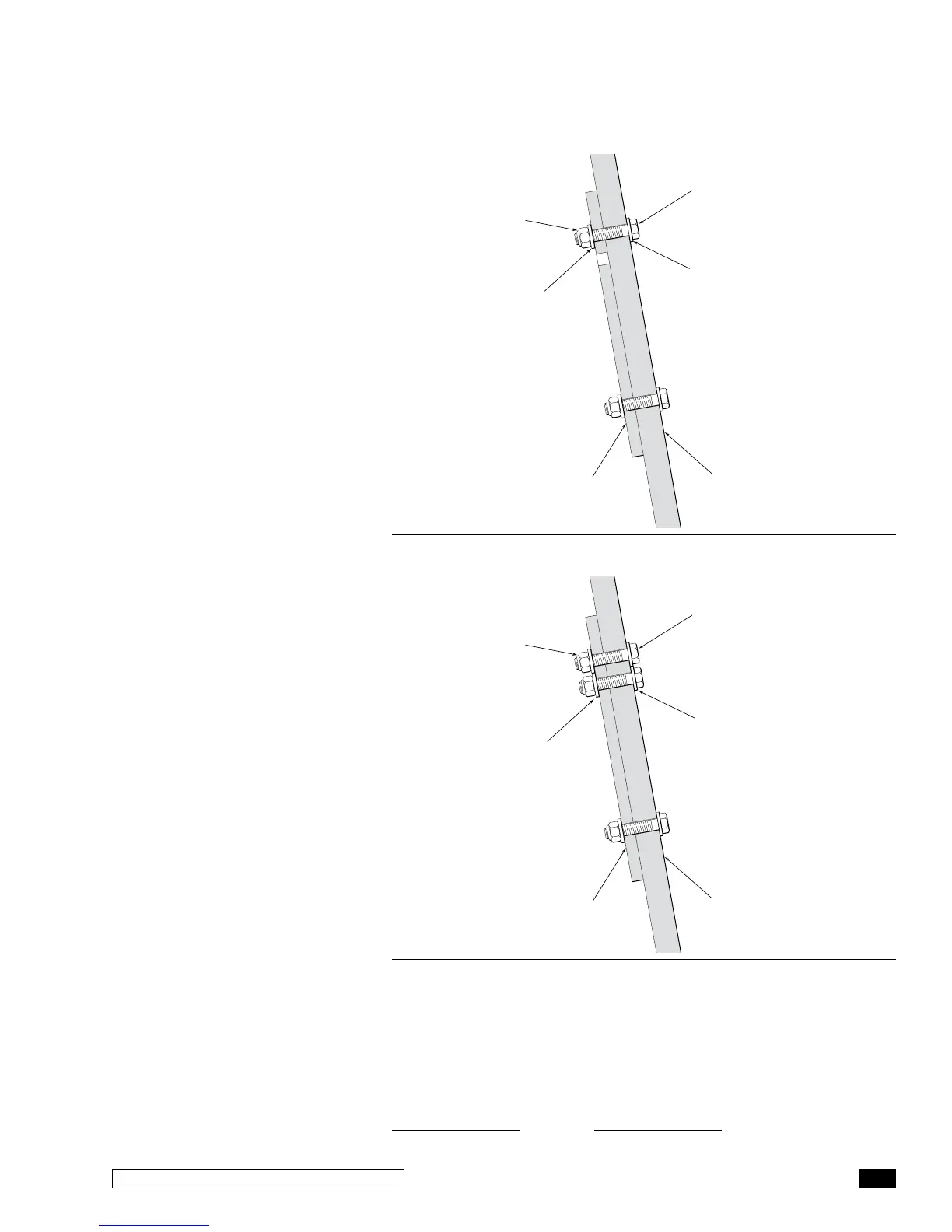

Figure 7. Jackplate to transom connection.
Figure 8. Jackplate to transom connection for 10” or 12” setbacks, or for outboards
greater than 250 HP.
