– Check that the seal is seated correctly on the bulb holder.
– Position the bulb holder on the tail light and align it so that it is
securely seated.
– Press the bulb holder into the tail light until it engages.
– Check that all four retaining tabs ⇒ page 283, fig. 229 -arrows-
have engaged.
– Re-install the tail light unit ⇒ page 284.
Fitting the tail light unit
The tail light unit is easy to fit.
– First place the tail light unit in ⇒ fig. 230 arrow in the
housing.
– Gently press the tail light unit against the housing, first in posi-
tion and then in position , until that the clips engage firmly
in the rubber mountings.
– Apply gentle pressure to the front side of the tail light unit and
secure using the screwdriver, from the luggage compartment
⇒ fig. 231 .
– Try to move the tail light sideways to ensure it is correctly fitted.
– Fit the cover back onto the screw, with the notch pointing to the
rear .
– Put the screwdriver back into the tool kit.
– Make sure that all bulbs for the tail lights are working.

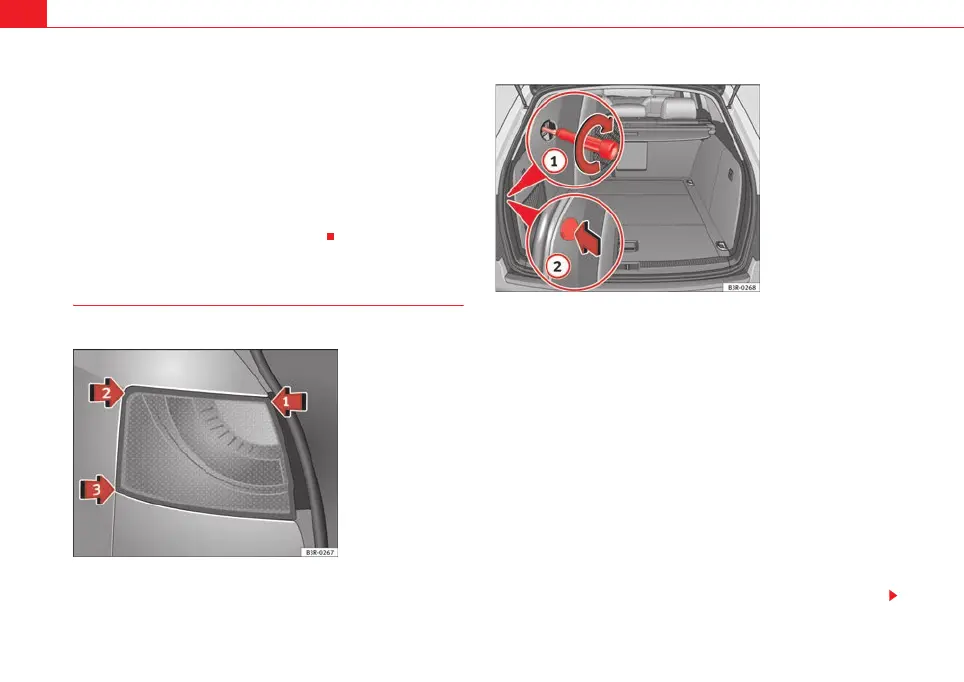

Fig. 230 Fitting the tail
light unit
Fig. 231 Luggage
compartment: Location of
the bolt securing the tail
light unit
1
2
3
1
2
