♦ Tensioning strap - T10038-
♦ Assembly tool - T10263-
♦ Assembly tool - T10356-
♦ Hydraulic press - VAS 6178- and thrust piece - T10205/13-
♦ Air hydraulic foot pump - VAS 6179-

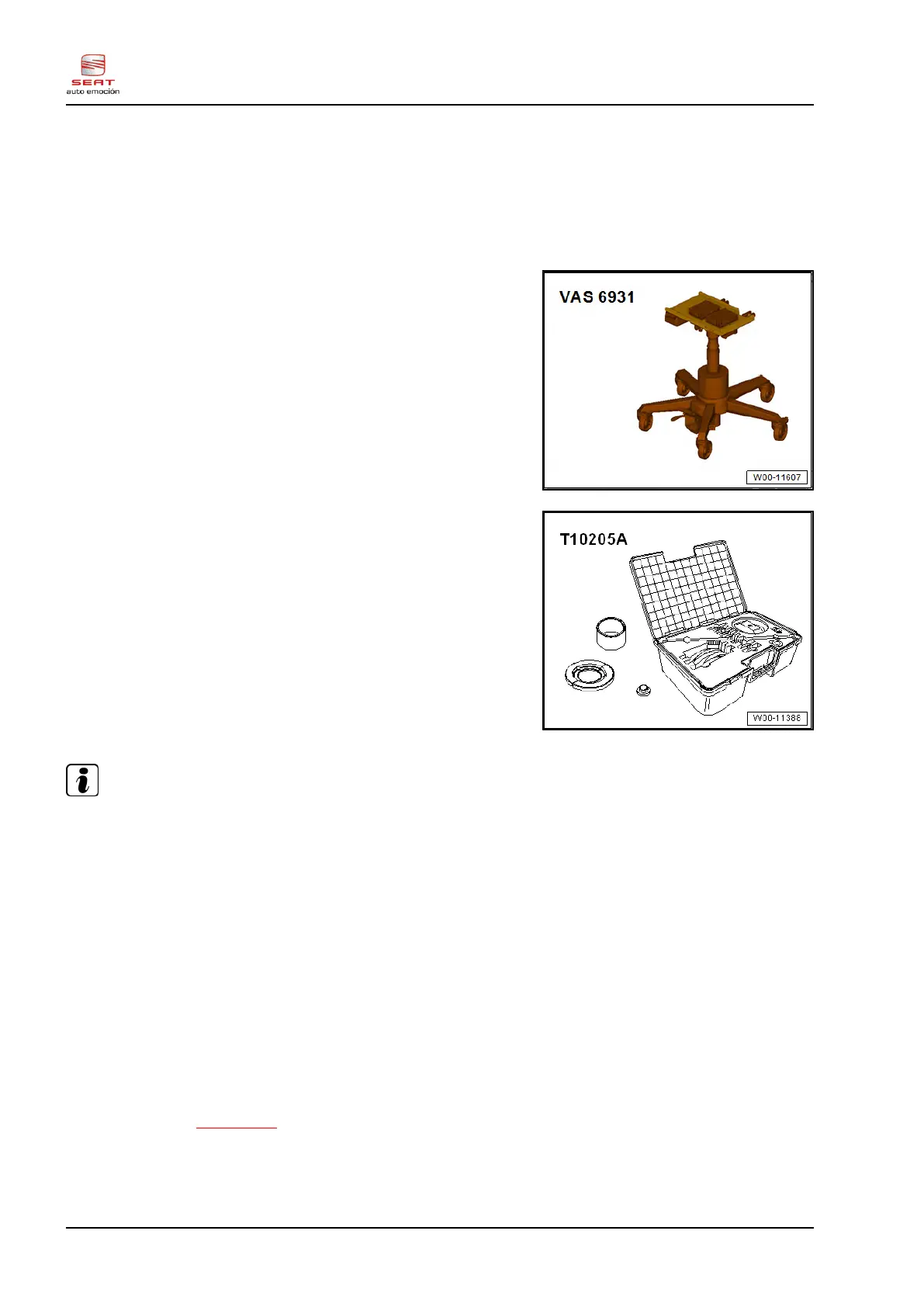

♦ Engine and gearbox jack - VAS 6931-
♦ Assembly tool - T10205 A-
Note
♦
When a bonded rubber bush is defective, the bonded rubber
bush on the opposite side must also be renewed, allocation ⇒
Electronic Parts Catalogue “ETKA” .
♦
Before replacing a defective bonded rubber bush, check the
other bonded rubber bushes.
♦
If cracks or other damage are visible these bushes must also
be renewed.
♦
The front or rear part of the subframe is lowered in order to
renew the bonded rubber bushes. The subframe does not
have to be removed.
♦
Mark the position of the bonded rubber bushes in relation to
the subframe before removing them.
Pressing out bonded rubber bushes (rear)
– Remove rear wheels.
– Remove spring ⇒ page 215 .
– Remove rear silencer of exhaust system ⇒ Rep. gr. 26 ; Ex‐
haust pipes/silencers; Assembly overview - silencers .
León 2013 ➤ , León ST 2013 ➤
Running gear, axles, steering - Edition 06.2018
184 Rep. gr.42 - Rear suspension
