GETTING TO KNOW YOUR INSTRUMENT

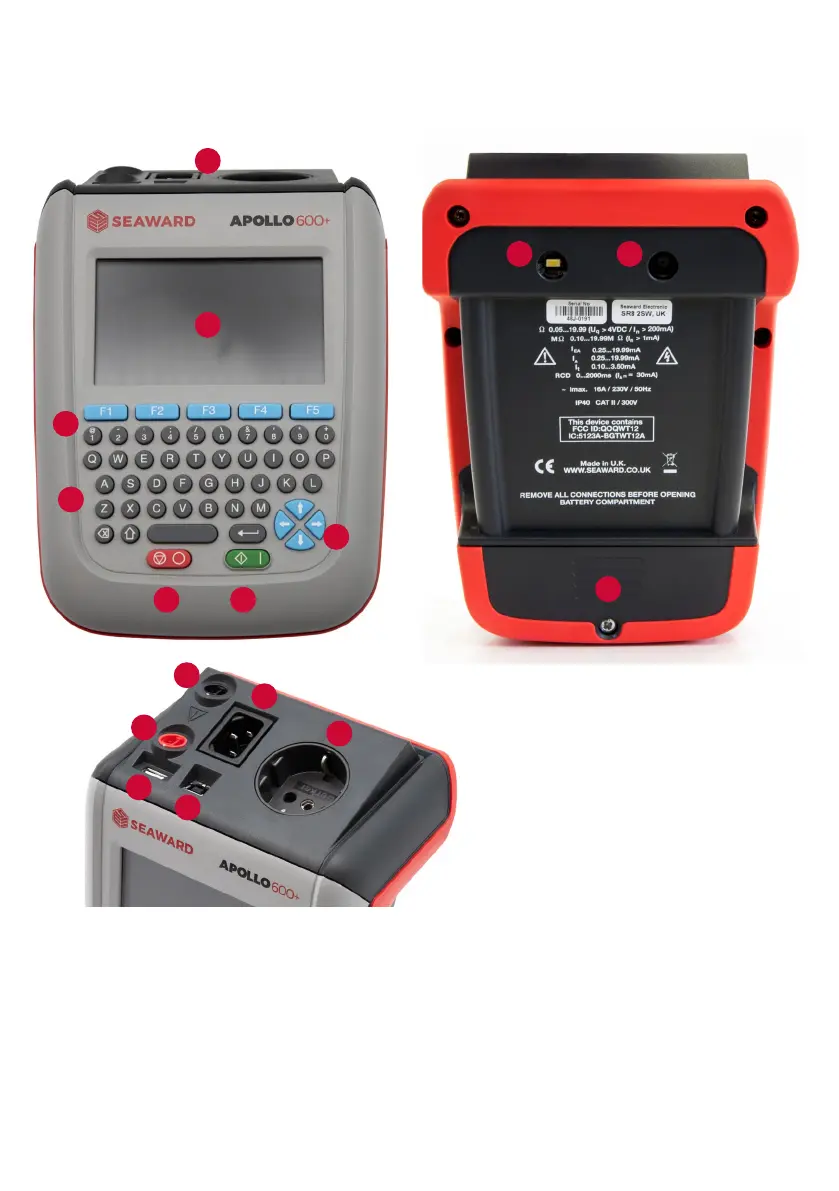

1. Test Terminals
2. Screen
3. Function Keys F1 - F5
4. Keyboard
5. Power Off / Stop Key
6. Power On / Start Key
7. Arrow Keys
8. EUT Socket
9. IEC Inlet
10. Probe Socket 1
11. Mains Inlet / Probe Socket 2
12. USB B Port for PC Connection
13. USB Flash Drive Port for Data
Backup
14. Flash
15. Camera
16. Battery Compartment
1.
6.
2.
7.
3.
4.
5.
8.
9.
10.
11.
12.
13.
14.
15.
16.
