• The unit will proceed with the Insulation and
Leakage tests.
Note: The power switch on the appliance under
must be in the ON position to perform an

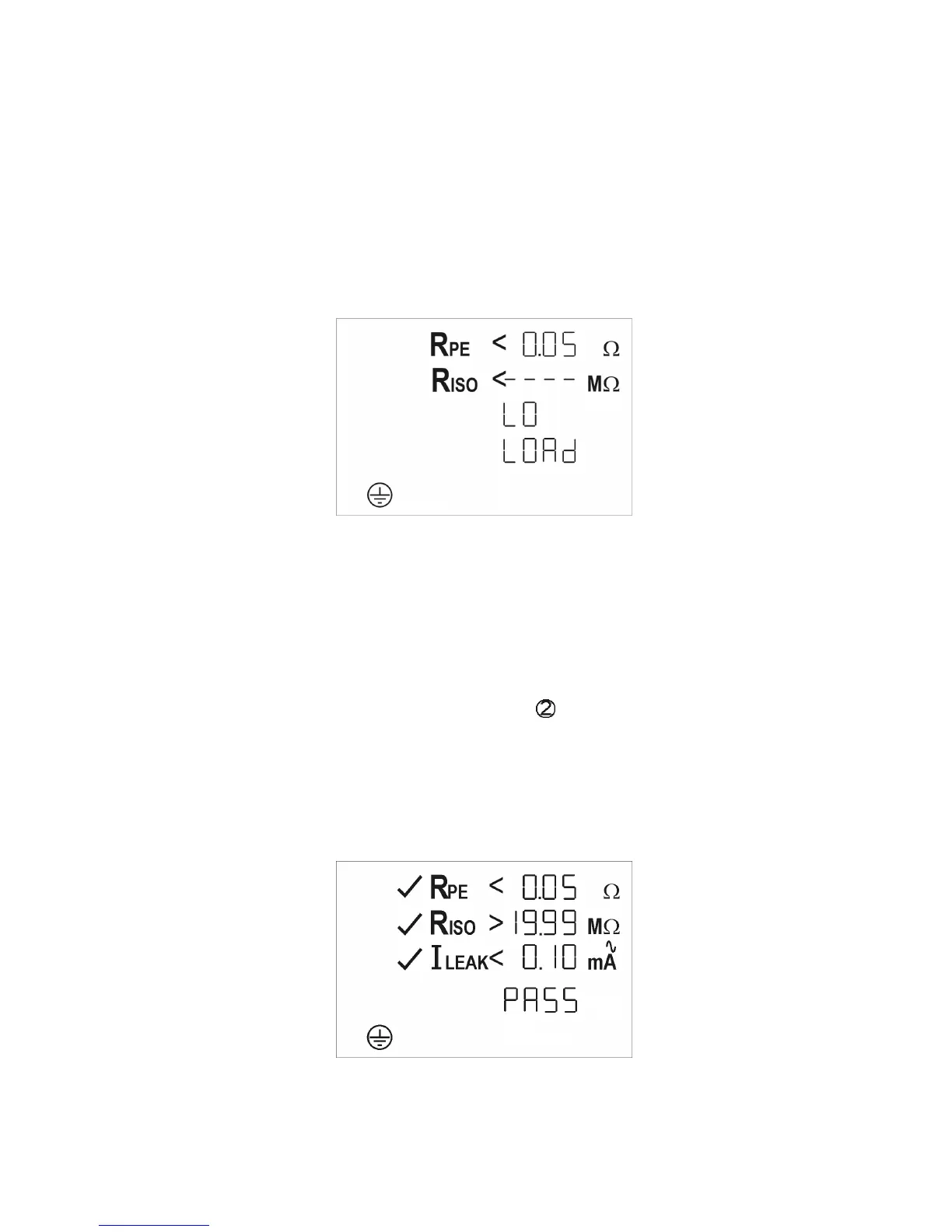

insulation test. If no appliance is detected
the PrimeTest 100 will display the
following.
• Check that the appliance power switch is in the
ON position. The test will automatically proceed
if the appliance power switch is placed in the ON
position.
• If the LO LOAd enunciator remains on the
display, the load presented by the appliance may
be too small for the PrimeTest 100 to detect. In
this case, press the test key to continue.
• If the Insulation Resistance is greater than the
factory set limit a tick is placed next to the Riso
enunciator. If the Leakage current is less than
the factory set limit a tick is placed next to the
I
LEAK
enunciator.
• The PASS enunciator is illuminated.
