26
Wiring
Resistors
Connectors
(Tyco Electronics)
24.

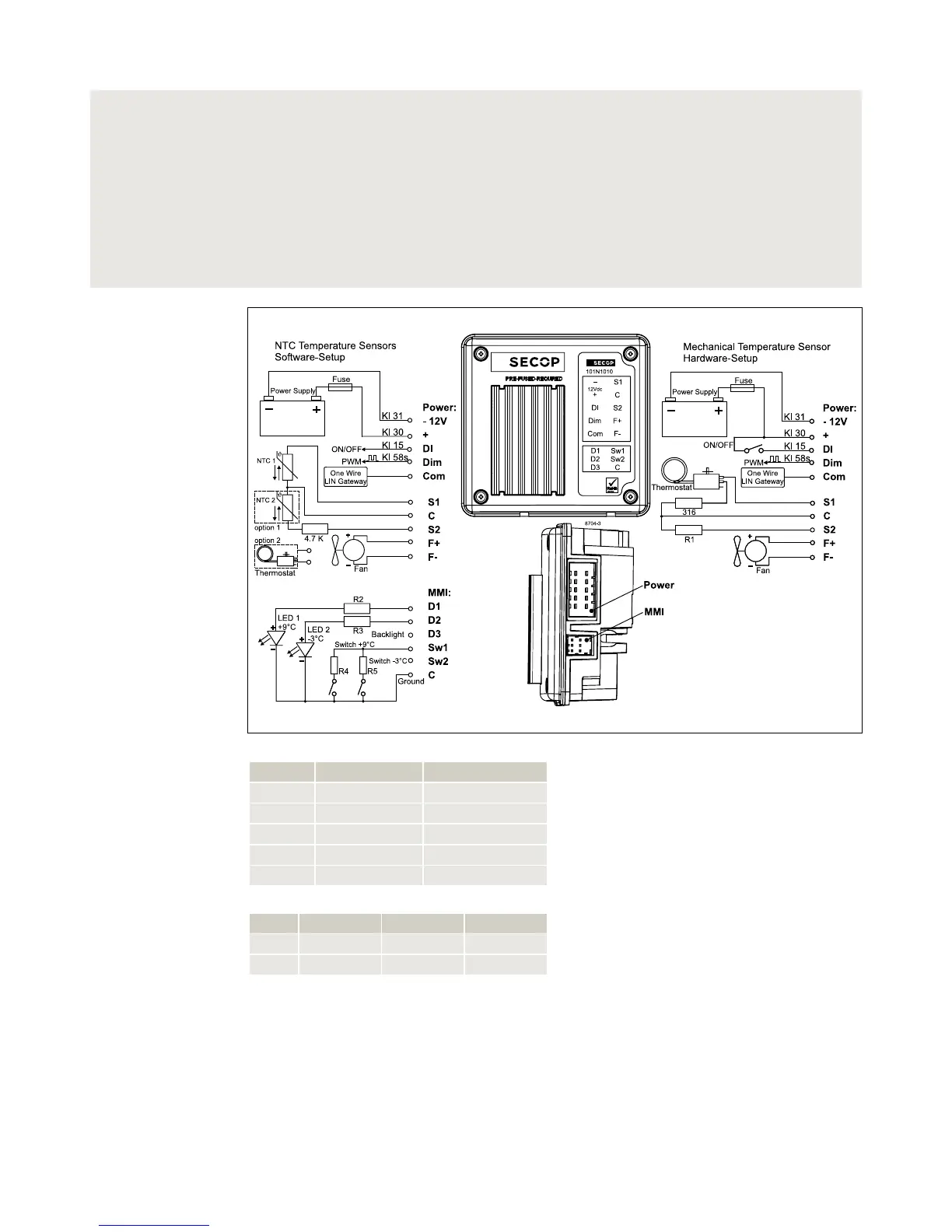

WIRING
Marking Value [Ω] Function
R1 see page 27 battery protection
R2 750 resistor LED 1
R3 750 resistor LED 2
R4 1500 coding resistor S1
R5 330 coding resistor S2
Code no Male Female Crimp
Power 178305-5 178289-5 1-175218-20
MMI 1376136-1 1-1318119-3 1-318108-1
