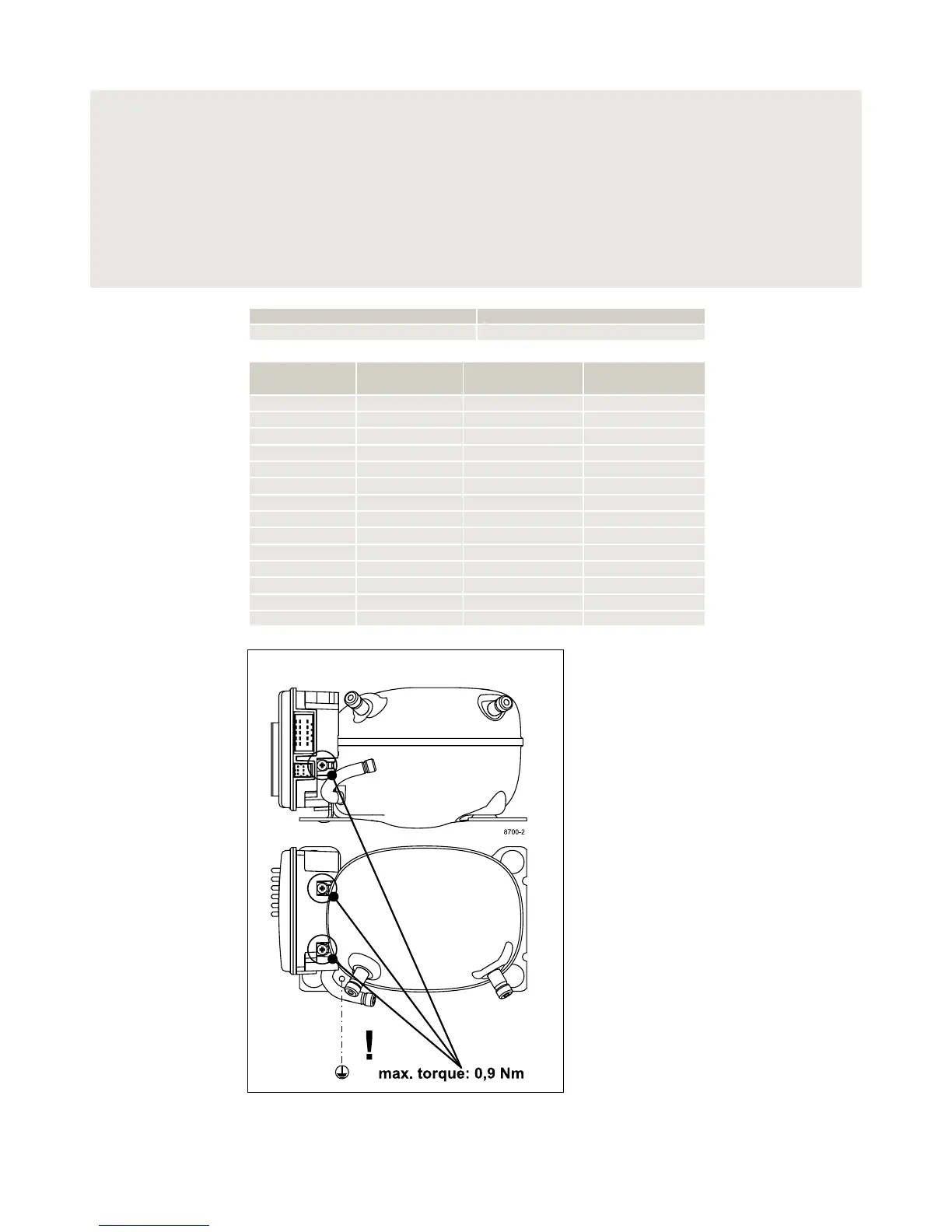

SECOP 101N1010 - 25. INSTRUCTIONS; Standard battery protection settings; Optional battery protections setting (calculated)

27
Standard battery
protection settings
Optional battery
protections setting
(calculated)
25.
INSTRUCTIONS
12 V cut-out [V] 12 V cut-in [V]
8.5 9.0
Resistor (R1)
[kΩ]
12 V cut-out
[V]
12 V cut-in
[V]
12 V max.
Voltage [V]
0 9.60 10.90 17.0
0.17 9.73 11.03 17.0
0.34 9.86 11.16 17.0
0.54 10.00 11.30 17.0
0.75 10.12 11.42 17.0
0.97 10.25 11.55 17.0
1.23 10.38 11.68 17.0
1.50 10.52 11.82 17.0
1.81 10.65 11.95 17.0
2.15 10.78 12.08 17.0
2.53 10.91 12.21 17.0
2.96 11.04 12.34 17.0
3.44 11.17 12.47 17.0
3.99 11.30 12.60 17.0
