SEDEMAC GC1100 User Manual

GC1100 SEDEMAC
Page | 6
2.6 Digital Inputs
Following table gives a brief overview of digital inputs
Table 9: Digital inputs
Controller's terminal number
10, 11, 12, 21, 22
Number of inputs
5
Type
Negative sensing (connect switch to ground.)
Open circuit voltage
(V
BATT
– 1) V-DC
Software configurable options
Low Lub Oil Pressure (LLOP) Switch, High Engine Temperature
switch and many more. Please refer Table 21
2.7 Analog Resistive Sensor Inputs
Following table gives a brief overview of analog resistive sensor inputs
Table 10: Analog resistive sensor inputs
Controller's terminal number
24, 25, 26 (Eng_temp, Fuel_Level sensor, LOP respectively)
Number of inputs
3
Type
Ratio-metric sensing
Range
0 to 1000 Ω
Open circuit detection
Above 5.5 KΩ
Accuracy
±2 % of FSD up to 1000 Ω
Connection method
One should connect the sensor output terminals between the
genset controller terminal and the battery ground terminal.

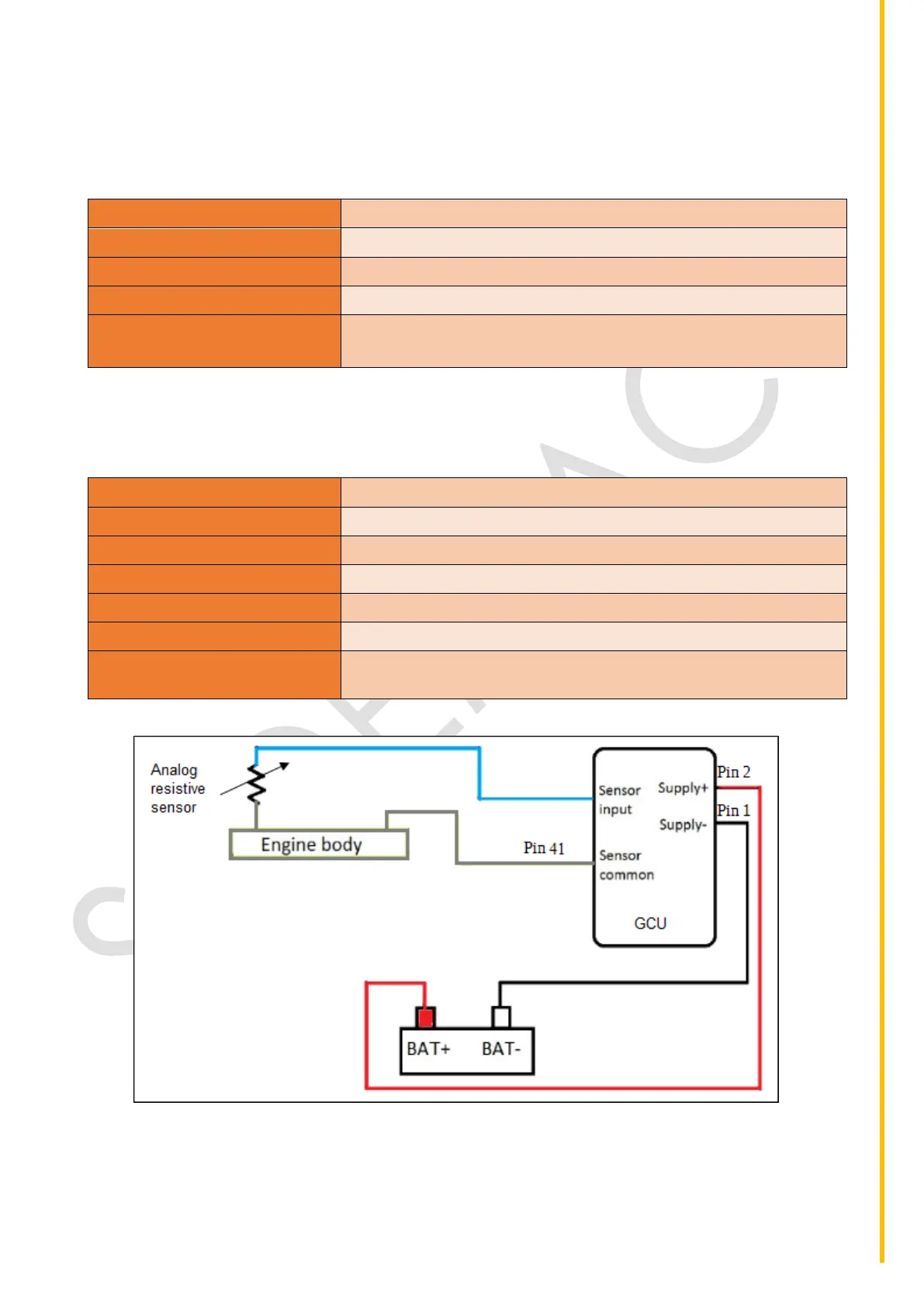

Figure 5: SCP connection
