1) Genset & mains contactor latching relays should be compiled against 4kV
surge as per IEC-61000-4-5 standard.
2) Wiring drawing is for representation purpose only. Please refer wiring as per
given genset application drawing.
3) Relay cards that used with controller should have protection against
reverse battery voltages.
Module Display
Following section describes the layout of screens.
5.1 Monitoring Mode
In monitoring mode, screens will scroll automatically after a configurable time which can be configured in
configuration menu or you can use the “Navigation UP/DOWN Keys” to scroll/browse the screens.

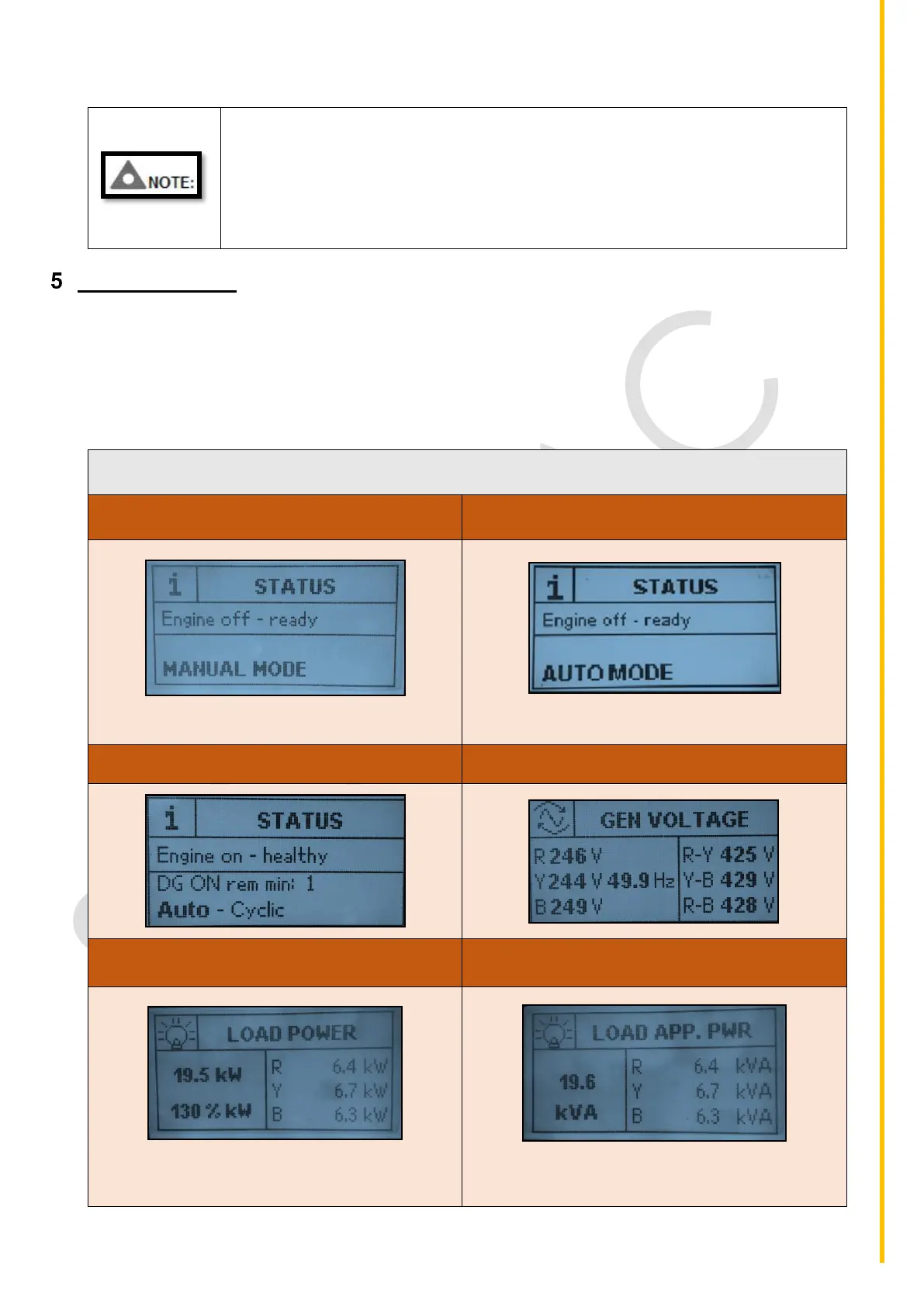

Table 18: Screens of engine status and operating mode
Engine status and operating mode
(This screen will be visible in Manual mode)
(This screen will be visible in Auto mode)
(The “Y” and “B” phase will be visible only if
configured for 3 phase genset)
(The “Y” and “B” phase will be visible only if
configured for 3 phase genset)
