GC1100 SEDEMAC
Page | 34

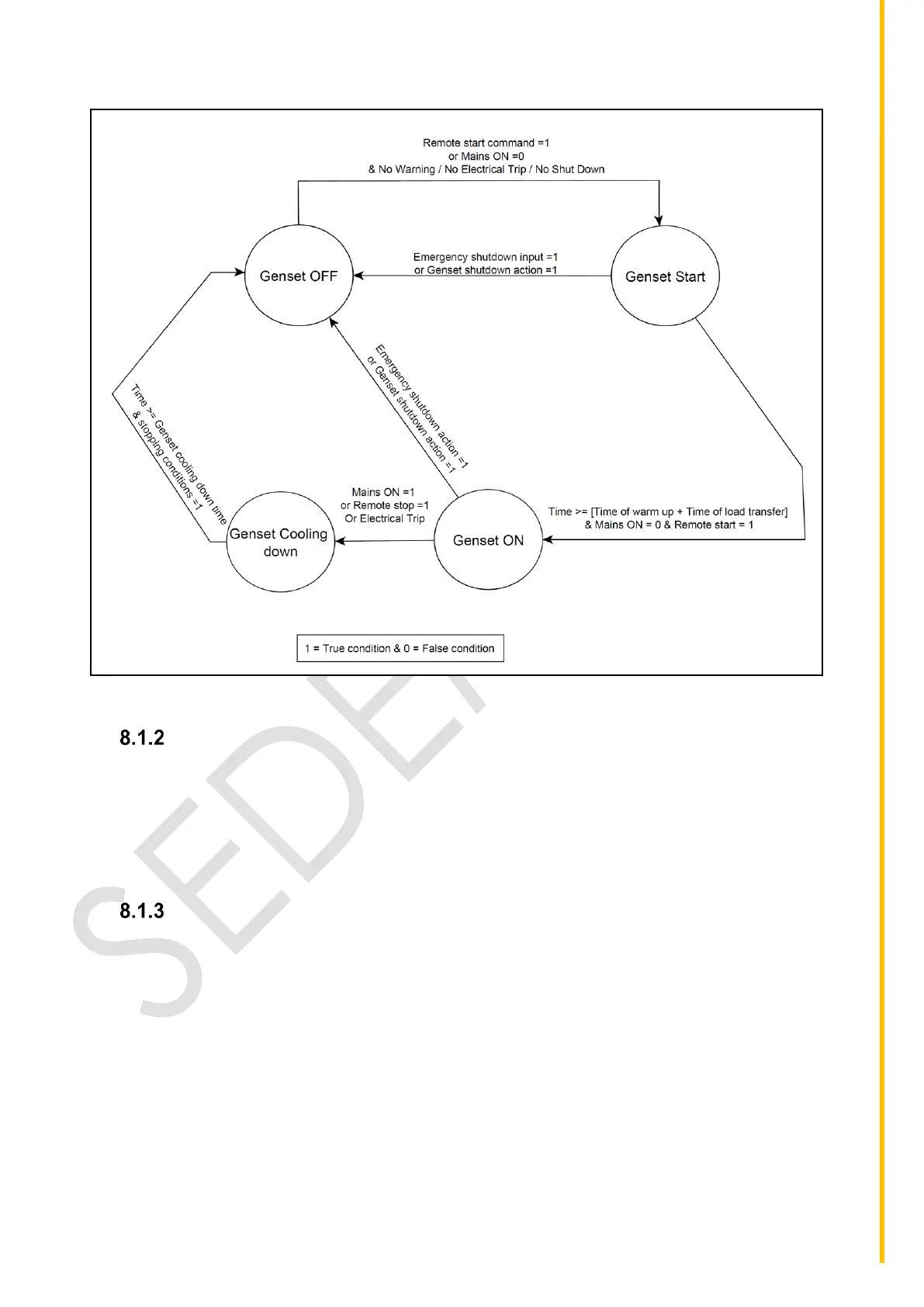

Figure 16: SMD for AMF mode
Remote start/stop
To use the Remote start/stop mode of the controller, first configure one of the digital input as Remote
start/stop and put the controller in the Auto mode provided mains monitoring should be disabled.
In this mode, the genset can be commanded to start and stop by continuously activating/deactivating
the preconfigured Remote start/stop input. The controller will latch genset contactor when controller
confirms that all the engine and genset parameters are within the configured thresholds. When the
preconfigured input is deactivated the controller will open the genset contactor.
Auto Exercise Mode
GC1100 controller allows to configure two scheduled sequences to start and stop the genset on
preconfigured time.
The Exercise will occur when the controller is in the Auto mode with no shutdown, electric trip or
warning alarms. The genset will run for pre-set DG ON DURATION. In this mode, load transfer on
mains/genset is configurable. Scheduled sequences can be configured to repeat daily, weekly or
monthly.
