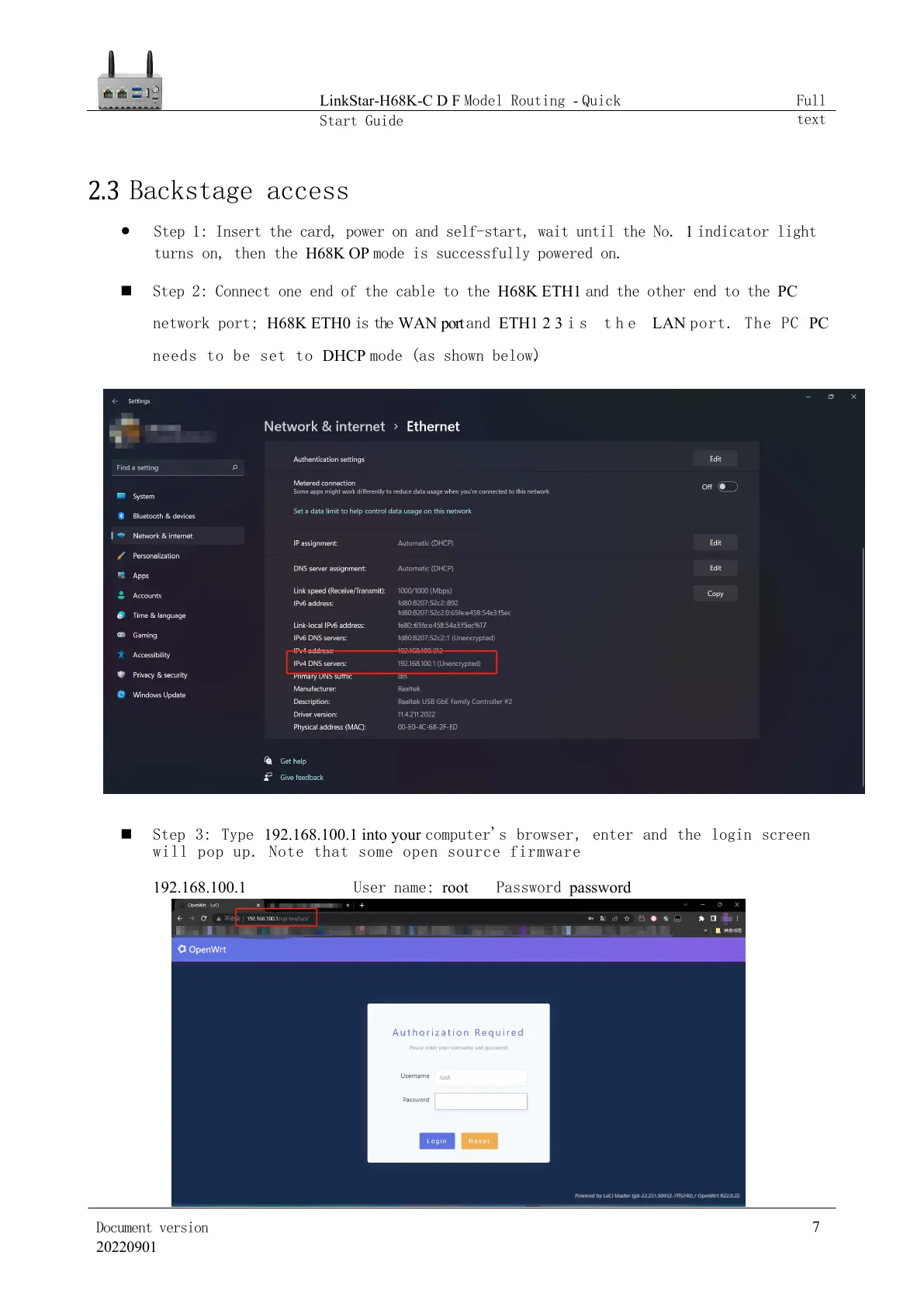

2.3
Backstage access
⚫
Step 1: Insert the card, power on and self-start, wait until the No. 1 indicator light
turns on, then the H68K OP mode is successfully powered on.
◼ Step 2: Connect one end of the cable to the H68K ETH1 and the other end to the PC
network port; H68K ETH0 is the WAN port and ETH1 2 3 i s t h e LAN port. The PC PC
needs to be set to DHCP mode (as shown below).
◼ Step 3: Type 192.168.100.1 into your computer's browser, enter and the login screen
will pop up. Note that some open source firmware
192.168.100.1 User name: root Password password
