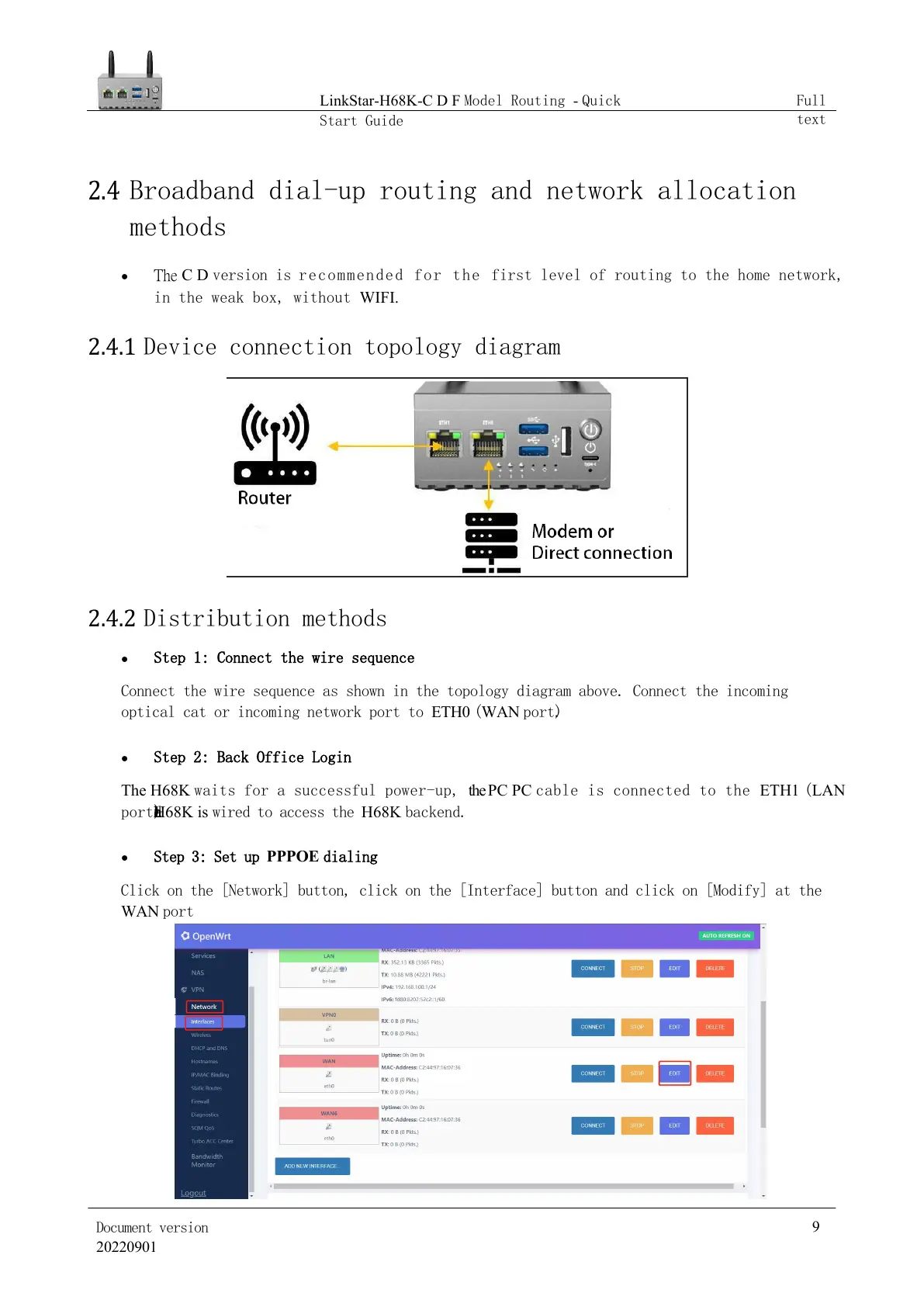

2.4
Broadband dial-up routing and network allocation
methods
● The C D version is recommended for the first level of routing to the home network,
in the weak box, without WIFI.
2.4.1
Device connection topology diagram
2.4.2
Distribution methods
● Step 1: Connect the wire sequence
Conne
ct the wire sequence as shown in the topology diagram above. Connect the incoming
optical cat or incoming network port to ETH0 (WAN port).
● Step 2: Back Office Login
The H68K wa
its for a successful power-up, the PC PC cable is connected to the ETH1 (LAN
port) and the H68K is wired to access the H68K backend.
●
Step 3: Set up PPPOE dialing
Click
on the [Network] button, click on the [Interface] button and click on [Modify] at the
WAN port
