36
TO SET - MAX NITROGEN BAR GRAPH ALARM
(while in the Surface Mode)
Factory set for DECO (all 8 segments), the Maximum
Nitrogen Bar Graph (NiBG) Alarm can be set to values be-
tween DECO (8 segments) and 1 segment.
• Press Both buttons simultaneously, release when SET:
2 appears.
• Press and release the Advance (Front) button, the Units
screen appears with the set point flashing.
• Press the Advance (Front) button 8 more times.
• The graphic ndc and Alarm icon appear with the full
Nitrogen Bar Graph flashing (Fig. 33).
• Press and release the Select (Side) button to decrease
the number of segments one at a time.
• Press the Advance (Front) button to accept the setting
and advance to Set Dive Time Remaining Alarm, or press
and hold Both buttons for 2 seconds to revert to Surface
Mode.

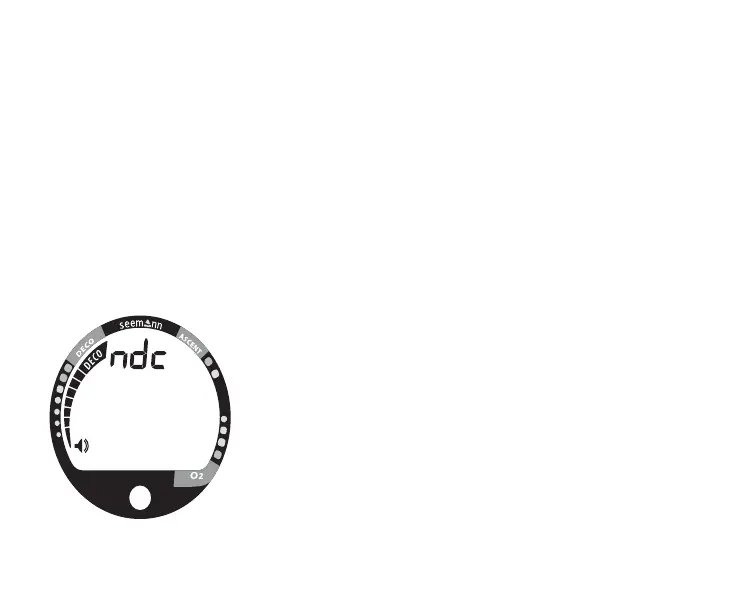

Fig. 33 - Set Max Nitrogen Bar
Graph Alarm
