CONTROL PANEL
9
3

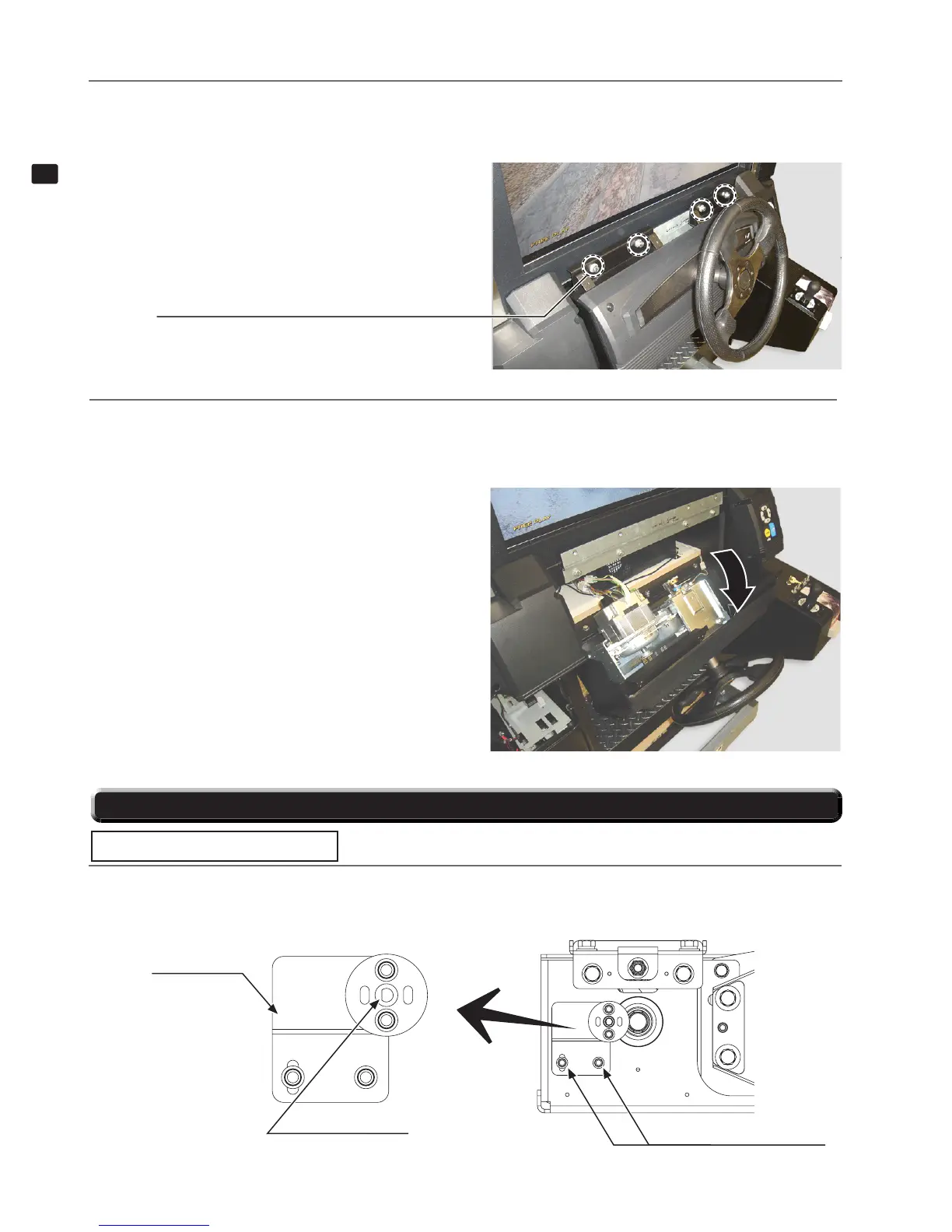

Remove all four hexagonal bolts that secure the control panel. Do this carefully, as the control panel will open
when the bolts are removed.
9-1 FIG. 03
4
Slowly open the control panel, making sure it is fully supported as you do so. Be careful that your hands or
feet do not get caught between the panel and game unit. Also, do not support the steering wheel portion of the
panel, as this may deform or damage the wheel.
9-1 FIG. 02
HEX BOLT (4)
Adjustment Procedure
1
Loosen the two screws that secure the VR bracket, and adjust the gear and the angle of engagement by moving
the VR bracket.
9-2 FIG. 01
9-2 ADJUSTING/REPLACING THE VOLUME
VR BRACKET
SCREW (2)
M4x10, w/fl at & spring washers
D-CUT FLAT EDGE
