40

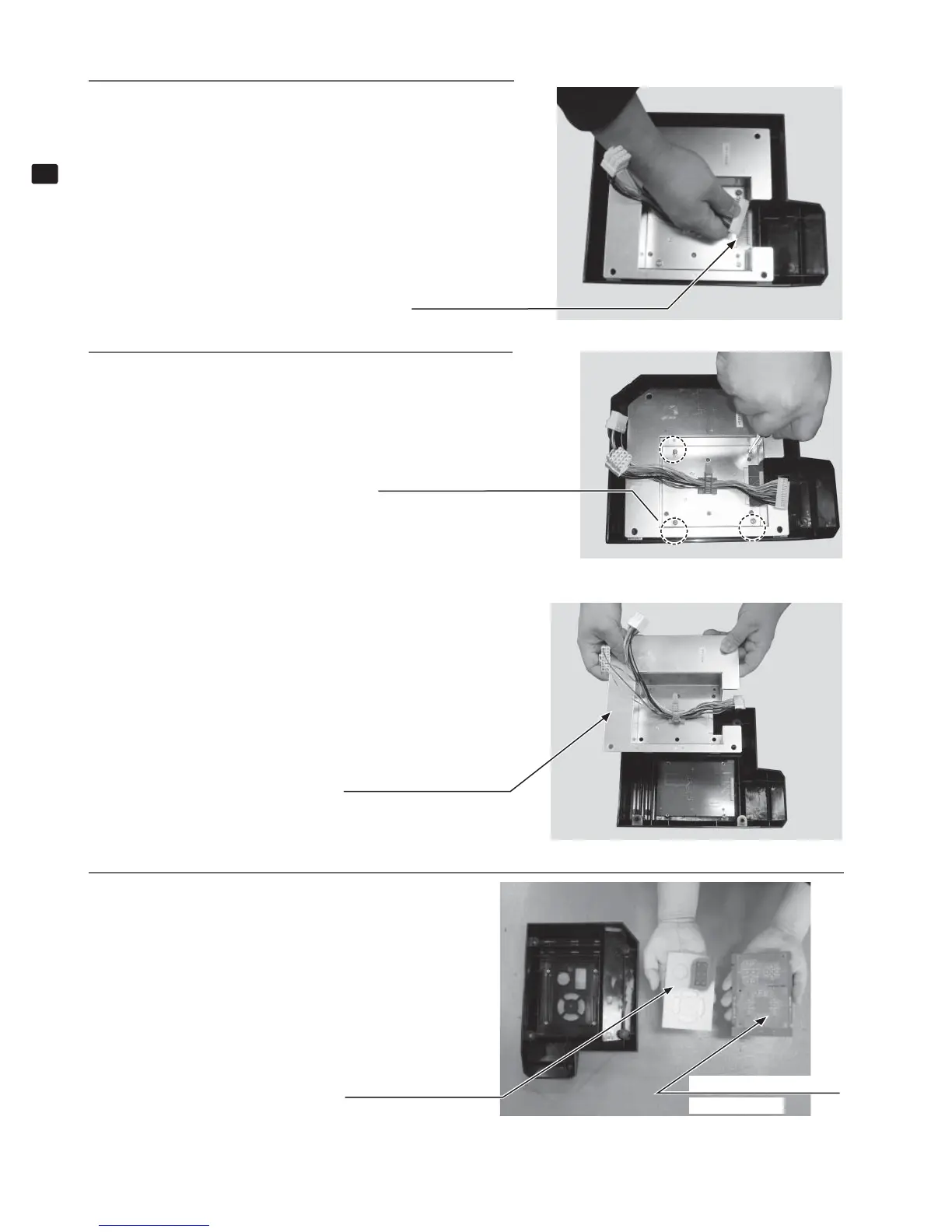

CONTROL PANEL
9
3
Detach
connector.
9-5 FIG. 03
4
Remove the four screws and lift the input switch base.
9-5 FIG. 04
9-5 FIG. 05
SCREW (4)
M4x10, w/
fl
at & spring washers
INPUT SWITCH BASE
5
Remove the input switch rubber and board.
9-5 FIG. 06
INPUT SWITCH RUBBER
TFF-1502
INPUT SWITCH BOARD
838-14707
Detach connector.
46
48
Table of Contents
Default Chapter
4
Table of Contents
4
Introduction
6
Specifications
6
1 Handling Precautions
8
2 Precautions Regarding Installation Location
9
Limitations of Usage
9
Operation Area
10
3 Precautions Regarding Product Operation
10
Before Operation
10
During Operation (Paying Attention to Customers)
11
Precautions When Moving the Amchine
11
4 Part Description
12
5 Accessories
13
6 Assembly and Installation
14
Installing the Cabinet
15
Attaching the Pop
15
Securing in Place
15
Refilling the Cards
16
Connecting Network Cables
18
Turning on the Power
19
Installation Settings
23
7 Card Reader/Writer
24
Setting Dedicated Cards
24
Cleaning
25
Clearing Card Jams
29
Exchanging the Card R/W Unit
30
Initial D License Restoration Procedure
31
8 Game Description
32
Game Overview
32
Game Flow
33
Mode Overview
37
Initial D License
39
9 Control Panel
42
Opening the Control Panel
42
Adjusting/Replacing the Volume
43
Greasing
45
Stopper Rubber Replacement
45
Replacing the Input Switch Board
46
10 Shift Lever
48
Removing the Shift Lever
48
Greasing
49
11 Accelerator & Brake
50
Adjusting/Replacing the Volume
50
Greasing
51
12 Test Mode
52
Switch Unit
52
System Test Mode
52
Game Test Mode
52
Input Test
53
Output Test
54
Game Assignments
57
Backup Data Clear
65
13 Monitor (Lcd Display)
66
Safety Precautions When Handling the Monitor
66
Cleaning the Screen Surface
66
Adjustment Method
66
14 Fluorescent Light Replacement
68
15 Periodic Inspection
70
16 Troubleshooting
72
Network Message
74
IC Card Message
75
Error Codes for Lindgergh
80
17 Game Board
84
Removing the Game Board
84
Composition of Game Board
85
18 Design-Related Parts
86
19 Parts List
87
20 Wire Color Code Table
95
