82

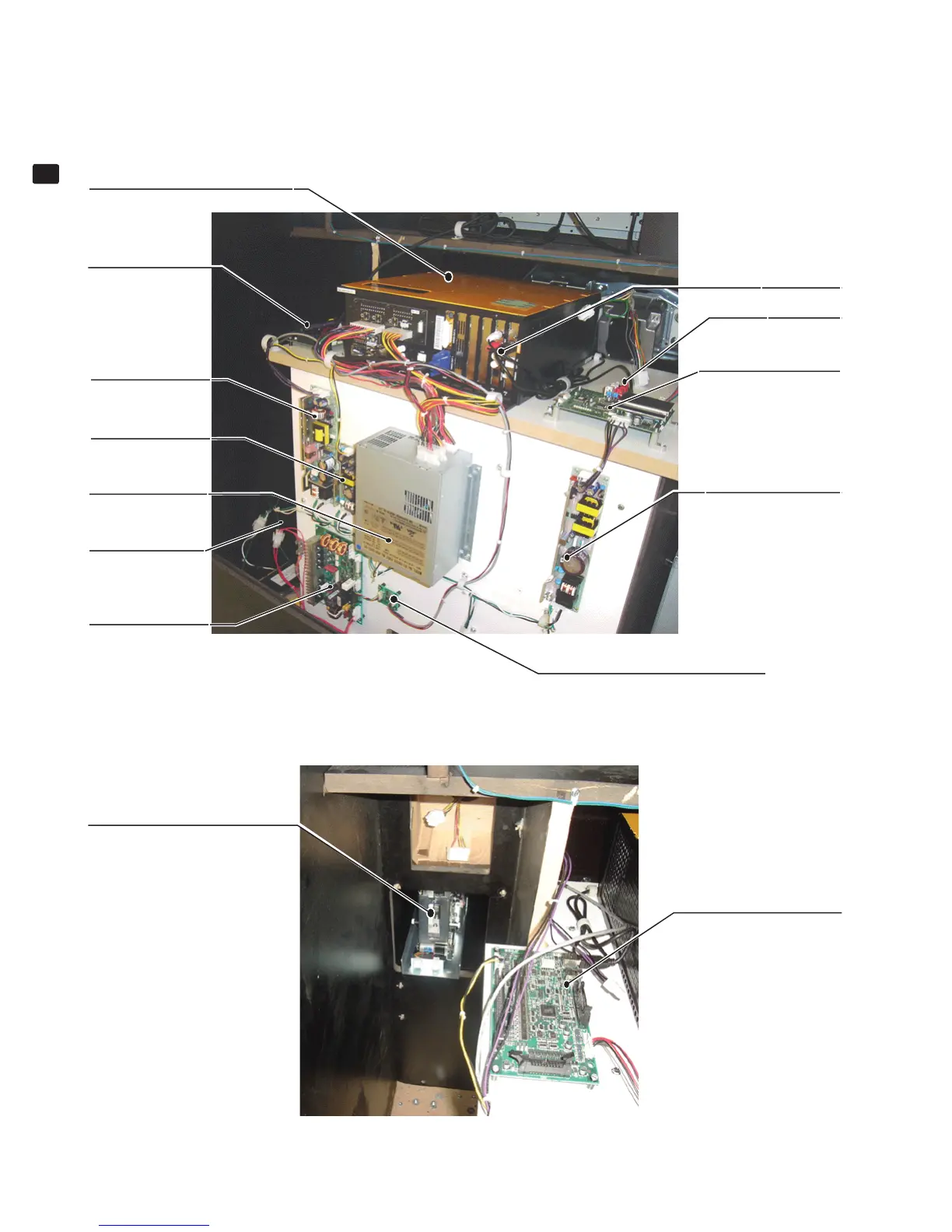

PARTS LIST
19
MAIN PCB
AND OTHERS
SOUND AMP ANALOG IN
838-14515-A0191
ASSY CASE LBG 1GB 7800 USA
844-0001D-92-11
SW REGU ATX/JVS
400-5457-91
CONVERT BD RS232C/RS422
838-14578
I/O CONTROL BD 3
FOR JVS COM
838-14572
SERVO MOTOR
DRIVE BD SER EMI
838-14592-01
JVS CABLE
515-60-682
RCA
515-60-680
TRANSFORMER
120V-100V 8 AMP
99-60-215
POWERSUPPLY DC24V
LCA75S-24
400-5421-07524
24V POWER SUPPLY
100S-24-H
400-5421-10024H
12V POWER SUPPLY
998-0247
I/O CONTROL BD 3
FOR JVS COM
838-14572
IC CARD RW W/WATER GUARD V
610-0791-01
> Back view
