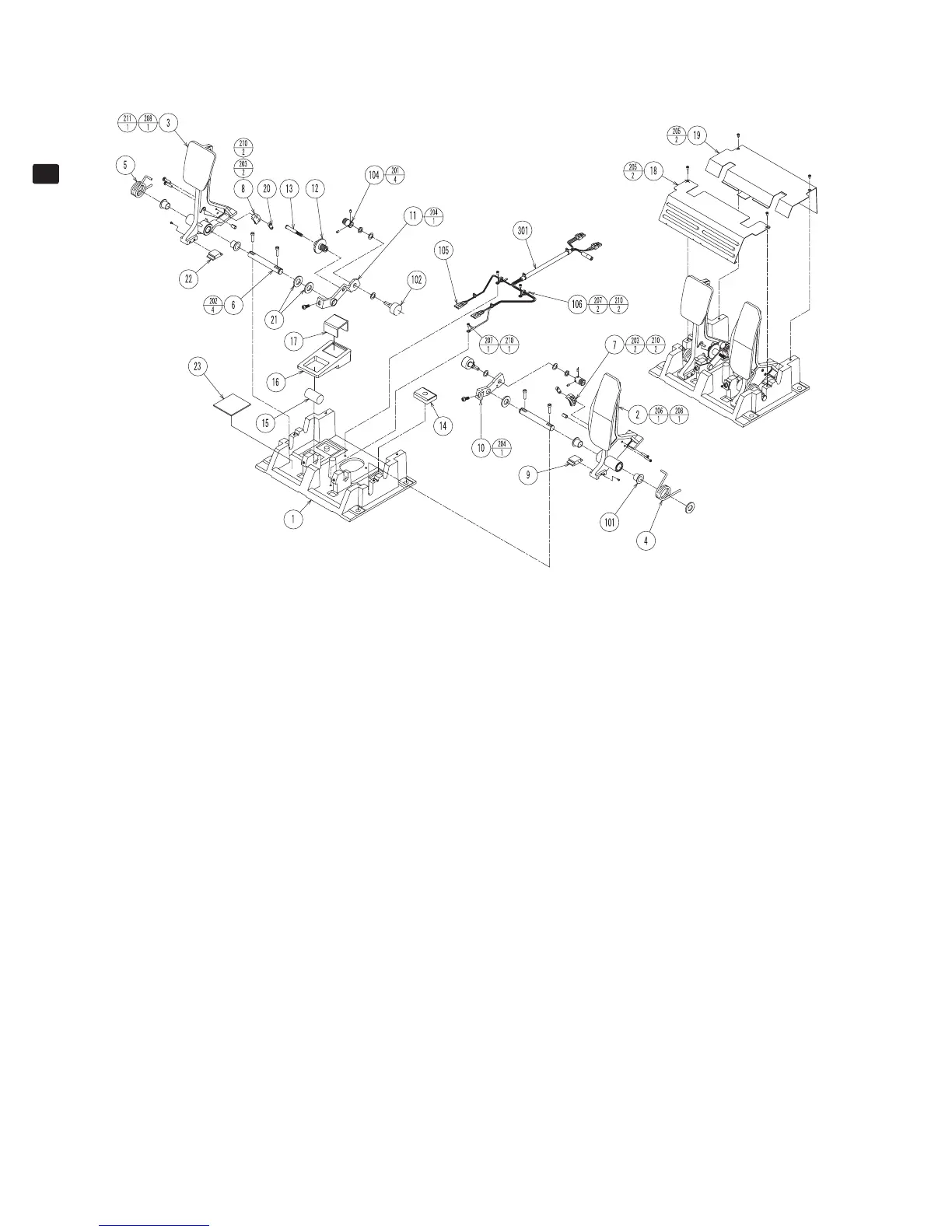

PARTS LIST
19
ITEM NO. PART NO. DESCRIPTION NOTE
1 SPG-2201 BASE
2 SPG-2202 ACCEL PEDAL
3 TFF-2203 BRAKE PEDAL
4 SPG-2204 ACCEL SPRING
5 TFF-2205 BRAKE SPRING
6 SPG-2206 SHAFT
7 SPG-2207 ACCEL GEAR
8 TFF-2208 BRAKE GEAR
9 SPG-2209 NEUTRAL STOPPER
10 SPG-2210 VR PLATE ACCEL
11 TFF-2211 VR PLATE BRAKE
12 TFF-2212 AMPL GEAR
13 SPG-2213X GEAR SHAFT
14 SPG-2214 STOPPER
15 TFF-2223 BRAKE CUSHION
16 TFF-2222 BRAKE STOPPER
17 TFF-2224 STOPPER ANGLE
18 SPG-2216 COVER
19 AFT-2804 VR COVER AFT
20 SPG-2219 GEAR STAY
21 SPG-2220 WSHR
22 SPG-2221 NEUTRAL STOPPER D
23 TFF-2225 NEUTRAL SPACER B
101 100-5263 BEARING 12(OILES 80F-1212)
102 220-5484 VOL CONT B-5K OHM
102 220-5753 VOL CONT B-5K OHM (TOCOS)
104 601-7944 GEAR 15
105 310-5029-F15 SUMITUBE F F 15MM
106 280-0419 HARNESS LUG
201 028-A00304-P SET SCR HEX SKT CUP P M3X4
202 020-000520-0Z HEX SKT H CAP SCR BLK M5X20
203 000-P00420 M SCR PH M4X20
204 000-P00512-W M SCR PH W/FS M5X12
205 000-T00408-0C M SCR TH CRM M4X8
206 FAS-450005 SPR PIN BLK OZ 6X10
207 000-P00405 M SCR PH M4X5
208 FAS-000001 M SCR TH CRM M3X6
210 060-F00400 FLT WSHR M4
211 FAS-450025 SPR PIN BLK OZ 8X10
301 600-6840-01 WIRE HARN ACCEL&BRAKE YL
ASSY ACCEL&BRAKE (TFF-2200)
