2
LINDBERGH SPECIFICATIONS
8

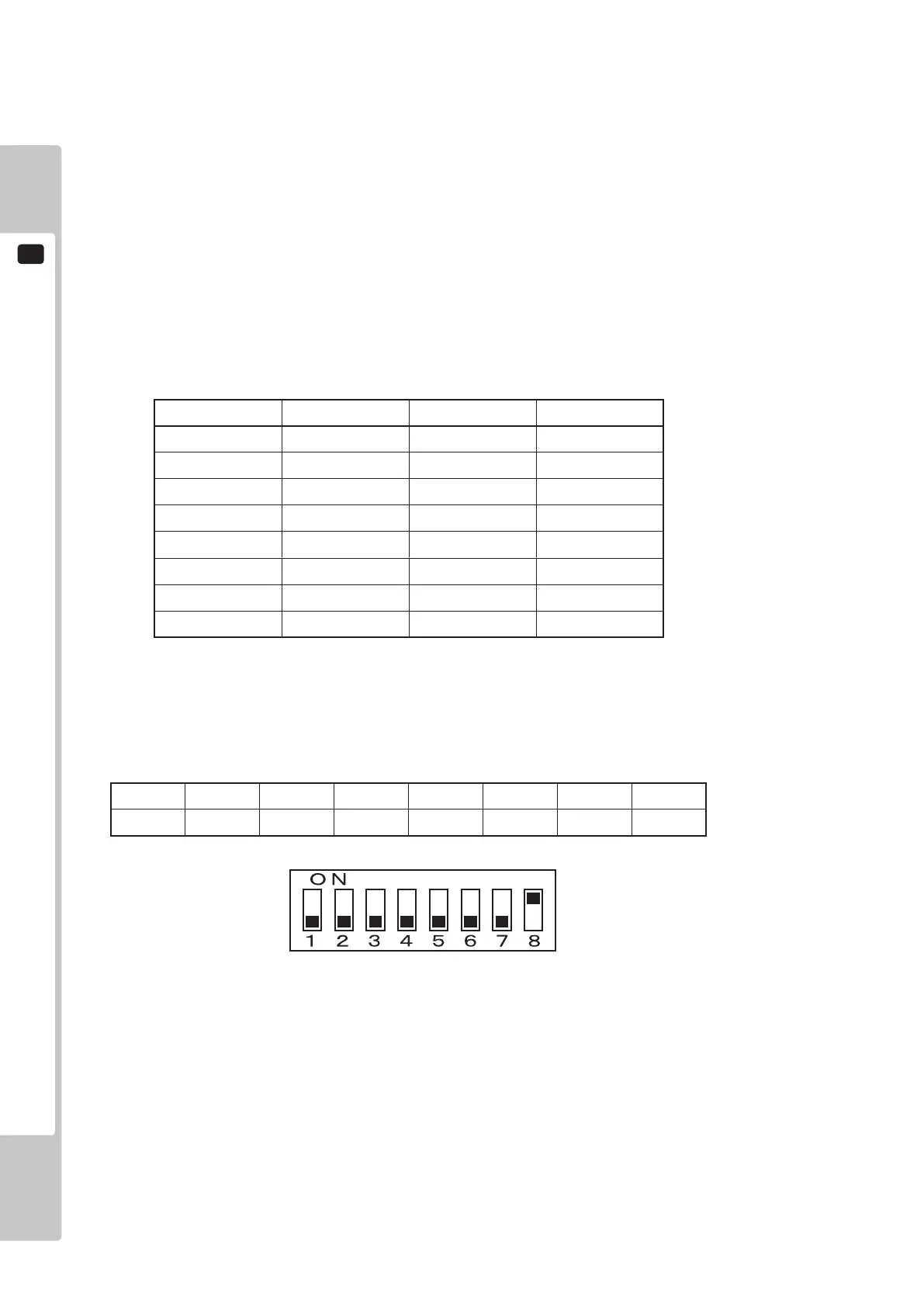

(18) DIP SW
No. 1, No. 2: Use differs depending on game software. Set according to the service manual provided with the game
software itself.
No. 3: Changes the facing of the monitor. Use differs depending on game software. Set according to the service
manual provided with the game software itself. If no specic directions are given set to horizontal display
(OFF).
OFF: Horizontal display
ON: Vertical display
No. 4, No. 5 and No. 6: Set the resolution of the video output.
Resolution No. 4 No. 5 No. 6
640
x
480 OFF OFF OFF
800
x
600 OFF OFF ON
1024
x
768 OFF ON OFF
1280
x
1024 OFF ON ON
800
x
480 ON OFF OFF
1024
x
600 ON OFF ON
1280
x
768 ON ON OFF
1360
x
768 ON ON ON
No. 7, No. 8: Use differs depending on game software. Set according to the service manual provided with the game
software itself.
The factory settings when a game board (LINDBERGH RED) is purchased as a stand-alone unit.
No. 1 No. 2 No. 3 No. 4 No. 5 No. 6 No. 7 No. 8
OFF OFF OFF OFF OFF OFF OFF ON
