LINDBERGH SPECIFICATIONS
6
(1) Power connector 1
(2) Power connector 2
(3) DVD Drive power connector
(4) Video output 0
(5) Video output 1
(6) JVS I/O
(7) LAN port 2
(8) Serial port 3
(9) LAN port 1
(10) USB Port 1 - 4 (USB Mini A)
(11) Front lineout
(12) Rear lineout
(13) Centre/Woofer lineout
(14) Serial port 2 (RS232C)
(15) Serial port 1 (RS232C)
(16) Key chip socket
(17) Serial port 2 (MIDI) …used instead of (14) Serial port 2 (RS232C)
(18) DIP SW (Dip switches)
(19) Service button
(20) Test button
(5)(4)(3)(2)(1)
(15) (14) (13) (12) (11) (10) (9)
(6)
(7)
(8)
(20)
(19)
(18)
(17)
(16)

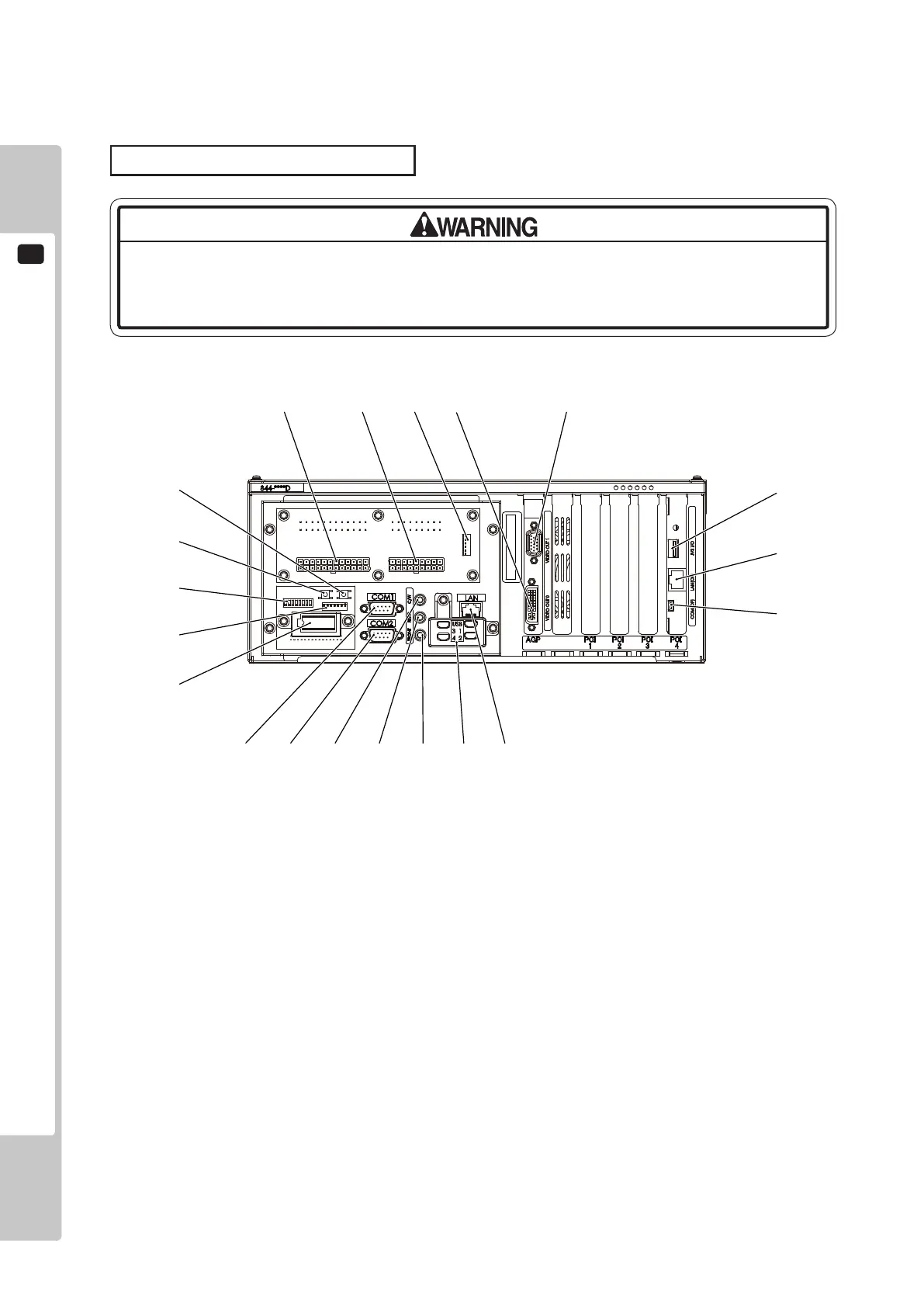

CONNECTORS AND SWITCHES
Do not connect components to (6) JVS I/O or (8) Serial port 3 that are not
designated by SEGA. Connecting unspecified components could cause an
accident such as an electric shock or re.
