GAME BOARD
16
16-1 CONTROL BOARDS - LOCATION
1
The machine is tted with Game Board Unit(s) and several other Ancilliary Boards which are mainly tted
inside the Base Box. Each machine contains the its own Europa Game Unit and set of Boards allowing
them to run independantly of each other. Only qualied Personnel should attempt to Service these Units and
before gaining access to the machine, it should be isolated from the mains supply.
●Whenreturningthegameboardaftermakingrepairsorreplacements,
makesure that thereare no errors inthe connection ofconnectors. Erroneous
connectionscanleadtoelectricalshock,shortcircuitsorres.
●Whenconnectingaconnector,checkthedirectioncarefully.Connectorsmust
beconnectedinonlyonedirection.Ifindiscriminateloadsareappliedinmaking
connections,theconnectororitsterminalxturescouldbedamaged,resultingin
electricalshock,shortcircuitsorres.

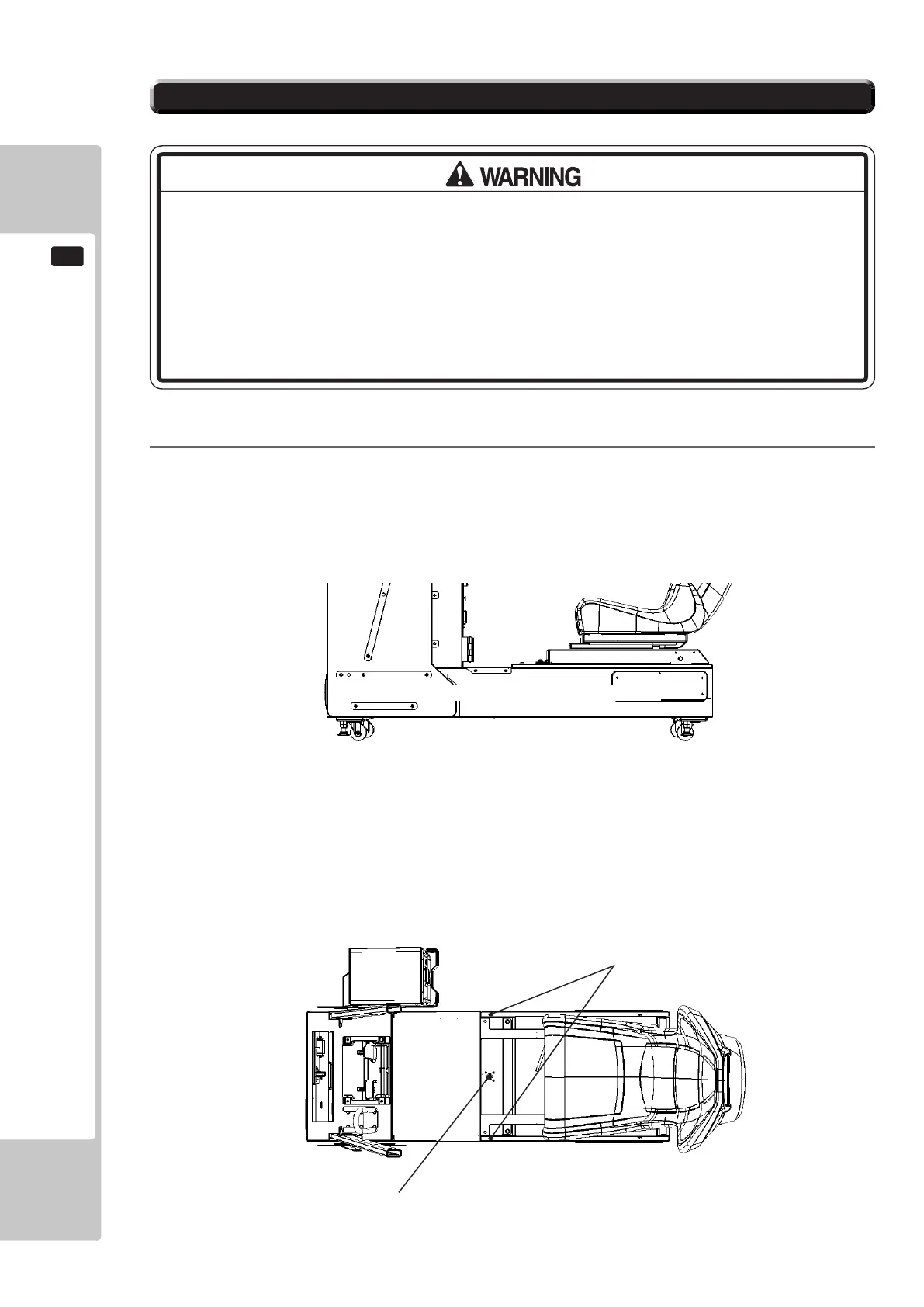

The Game Board Unit is located under the Player Seat, and to gain access the following procedure
should be carried out.
Unlock the Seat Lid and then remove the Security Bolt located on each edge of the Lid.
Control PCB's located inside Base Box
M6 Hex Bolt (2)
Lock (J9117)
