60
CONTROL UNIT
10
The exploded diagram below shows the Active Steering Wheel Assy. Each part is tagged with a part number. Please
quote this number when ordering spare parts.

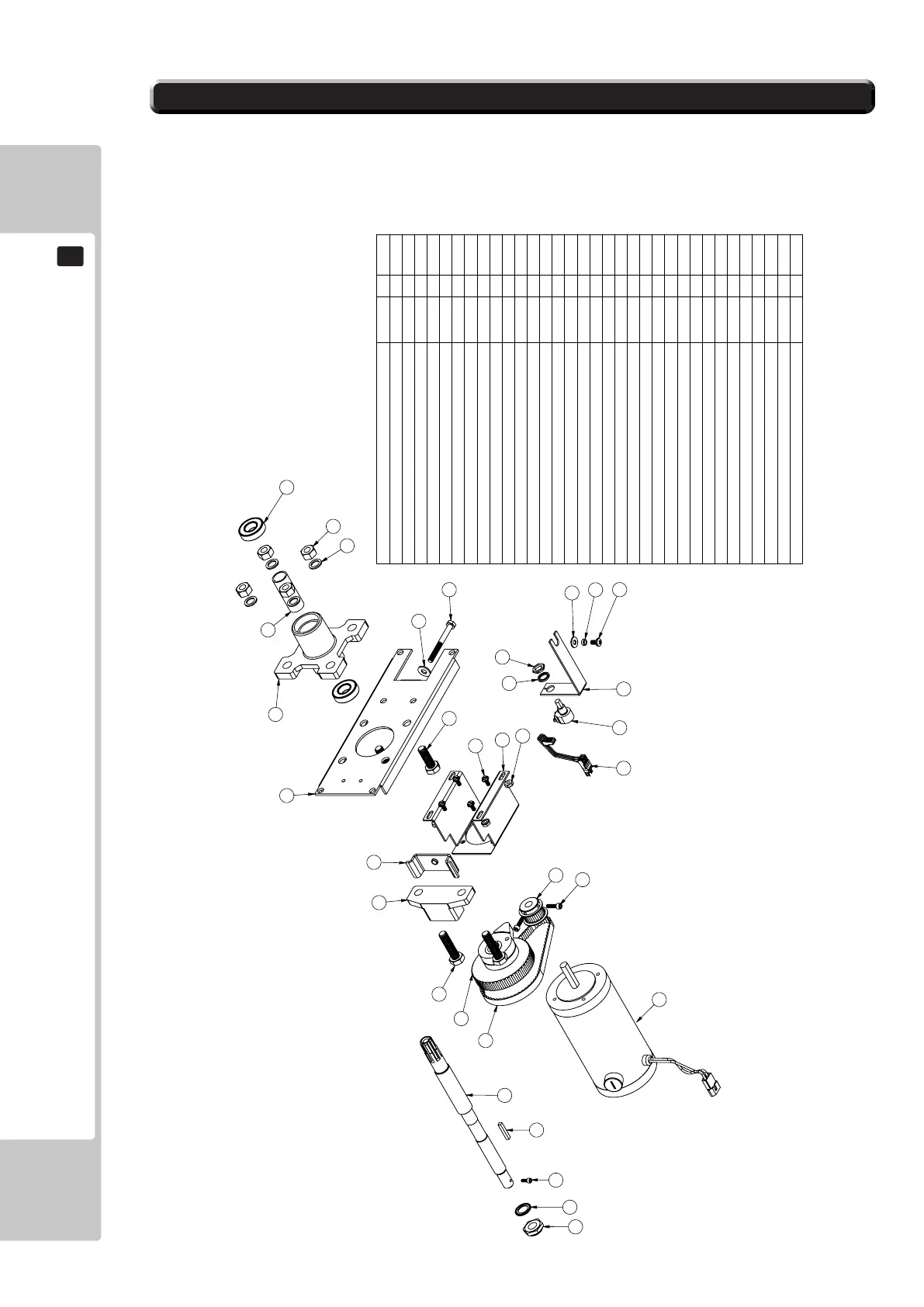

10-1 CONTROLLER - EXPLODED DIAGRAM
27
28
25
22
23
24
11
12
18
19
6
5
3
30
9
21
29
16
14
7
10
13
15
1
2
31
4
17
20
8
26
32
33
ITEM NO.
QTY.
PART NO.
DESCRIPTION
1 1
50-2092-00
KEY, SHAFT 4MM x 4MM x 25MM
2 1
43-1170-00
SCREW, #6-32 x 3/8" SHCS
3 1
50-4043-00
MOTOR & CONNECTOR ASY.
4 1
50-4016-00
WHEEL MTG. BRACKET
5 1
50-8129-00
BEARING HOUSING
6 2
50-8130-00
BEARING, .9843 ID X 1.259 OD x .1575 w
7 1
50-8455-00
MOTOR MTG. BRACKET
8 1
50-2659-00
BEARING SPACER
9 1
50-4040-00
PULLEY, 16T, ALUMINUM
10 4
43-0188-00
SCREW, #8-32 x 3/8" HEX WASHER HD
11 1
43-0576-00
SCREW, M6 x 60MM HHCS
12 1
90-1208-00
5/16 FLAT WASHER .06T ZINC PLT
13 1
50-2545-00
BRACKET, BELT TENSIONER
14 4
42-0093-00
NUT, 10-32 HEX SEMS, ZINC PLTD
15 2
43-0117 00
SCREW M10 X 30MM HHCS
16 2
43-0978-00
SCREW, M10 x 40MM HHCS
17 1
50-8145-00
DIE CAST WHEEL STOP, W/BUMPERS
18 4
43-0034-00
LOCKWASHER M10 RIBBED
19 4
43-0035-00
NUT HEX M10
20 1
50-4045-PL
STOPPER PIE CAM & PLASTIC PULLEY
21 1
50-4041-90
TIMING BELT FOR STEERING WHEEL URETHANE STEEL
22 1
50-2670-00
5K POT, NEI "SENSORCUBE"
23 1
43-0018-00
LOCKWASHER, INT. 3/8" x 9/16"
24 1
43-0014-00
HEX NUT 3/8"-24 X 3/32 THK
25 1
50-4018-00
POT. MTG. BRACKET
26 1
50-4032-00
SPACER, POT MTG. BRACKET
27 1
43-0184-00
SCREW, #10-32 x 3/8" PHPNHD
28 1
43-0995-00
#10 FLAT WASHER
29 1
43-0232-00
NUT, HEX NYLOCK 1/2-20
30 2
43-1059-00
SCREW, #8-32 x 5/8" SHCS
31 1
50-4042-10
HARNESS, FOR NEI POT
32 1
43-1554-00
STAR WASHER M14 EXTERNAL TOOTH
33 1
50-4014-10
SEGA SHAFT 270 DEG ACTIVE WHEEL
