■ External Buzzer Connection
Ensure that the printer is off. (1)
Plug one plug of the modular cable to the connector of external buzzer. (2)

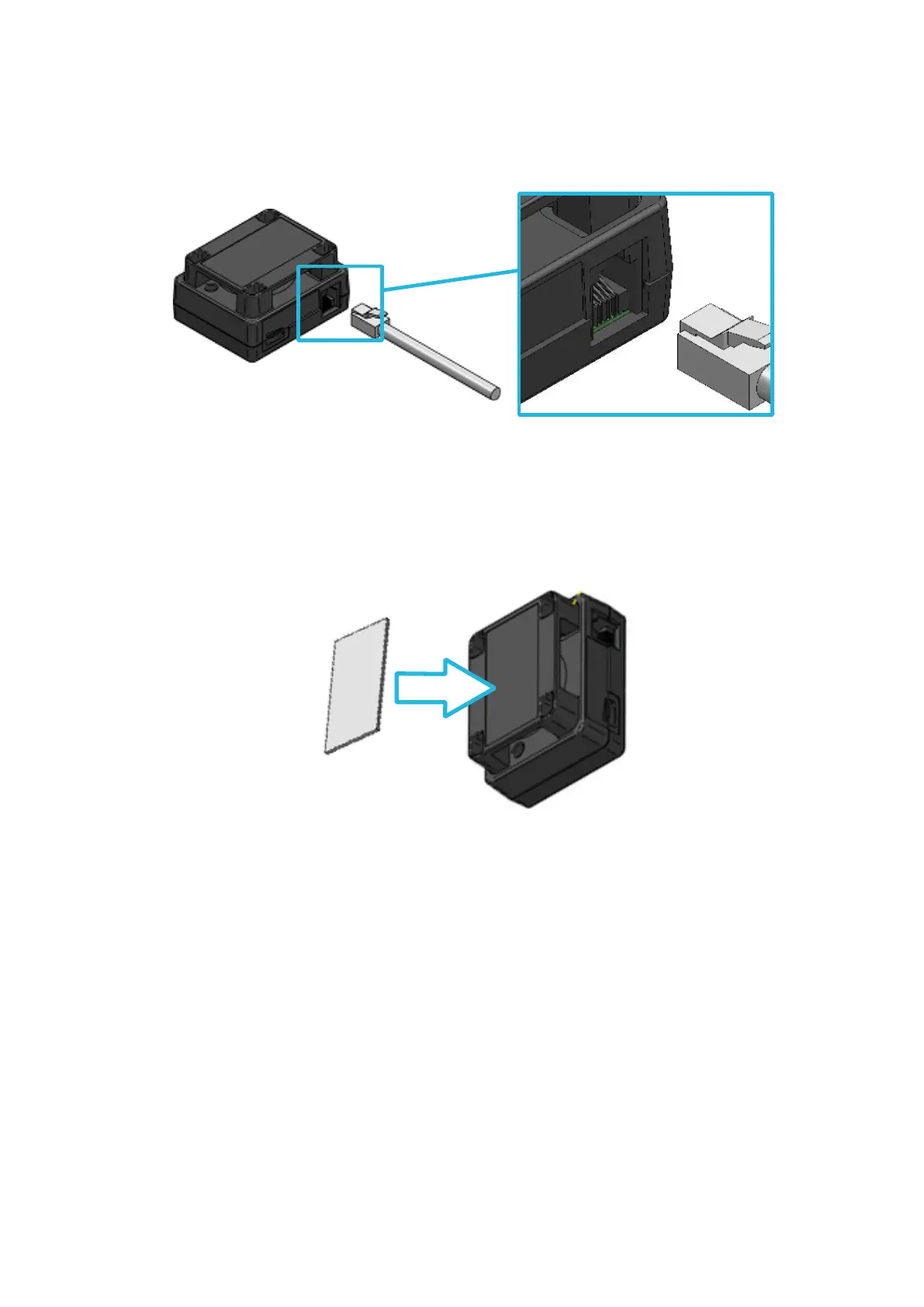

Figure 13-2 External Buzzer and Modular Cable Connection
Plug the other side plug of the modular cable to the drawer kick connector on the back side of the (3)
printer.
Peel off the one release paper of the double-sided tape, and paste it on the bottom of the external (4)
buzzer.
Figure 13-3 Pasting Double-sided Tape to External Buzzer
Peel off the other release paper of the double-sided tape pasted on the buzzer, and paste the (5)
external buzzer to the installing position of the printer.
Turn on the printer. (6)
