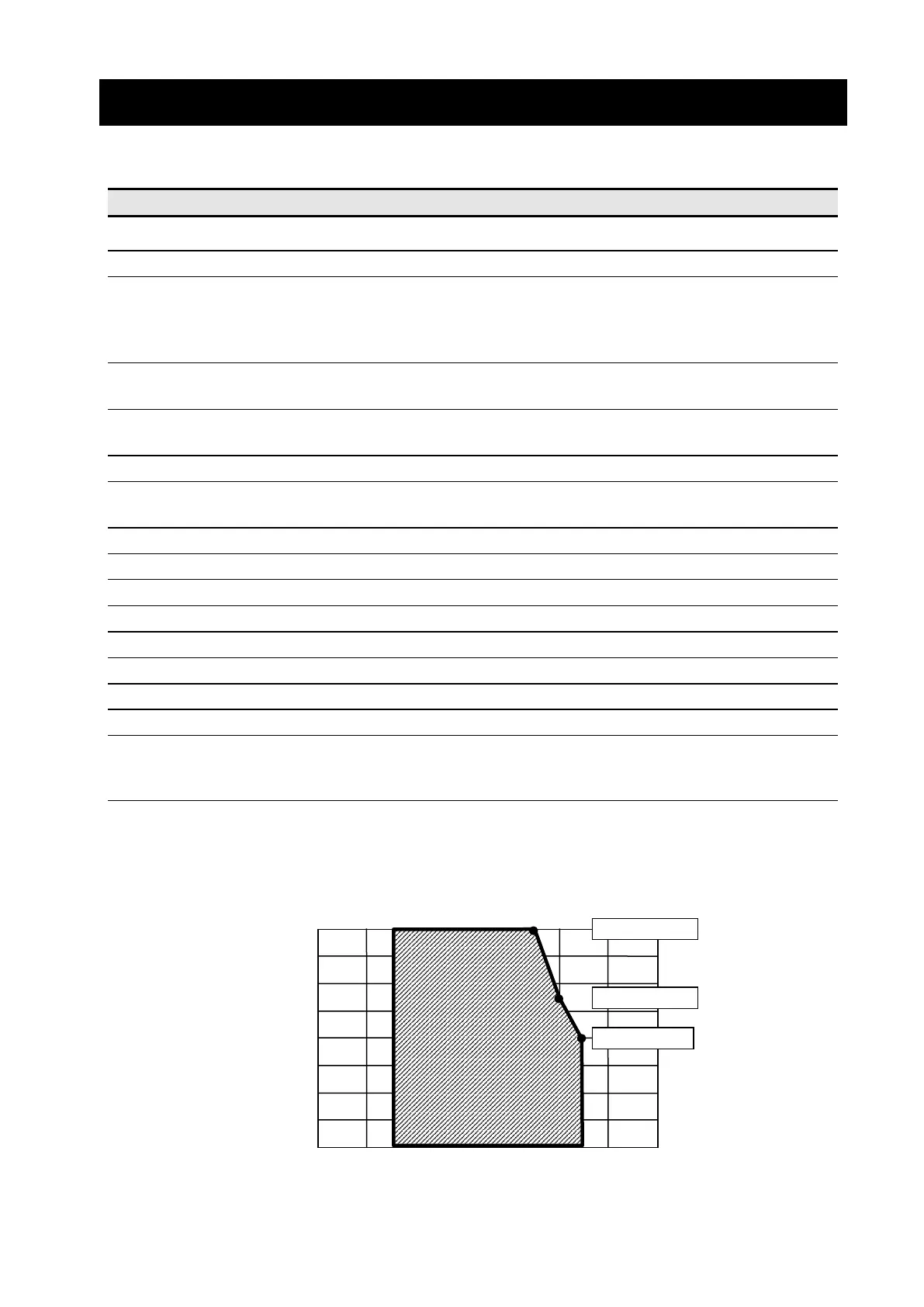

18. SPECIFICATIONS
■ Printer Specifications
Item Specification
Model RP-F10
Printing method Thermal printing
Number of characters per line
*1
Paper width 80 mm: 24 dots × 12 dots 48 digits (42 digits
*2
)
16 dots × 8 dots 72 digits (64 digits
*2
)
Paper width 58 mm: 24 dots × 12 dots 36 digits (30 digits
*2
)
16 dots ×
8 dots 54 digits (45 digits
*2
)
Character size 1-byte: H 24 dots × W 12 dots, H 16 dots × W
8 dots
(H × W) 2-byte: H 24 dots × W 24 dots, H 16 dots × W 16 dots
Number of effective dots Paper width 80 mm: 576 dots (512 dots
*2
)
Paper width 58 mm: 432 dots (360 dots
*2
)
Dot density 8 dots/mm
Paper width / Printing width 80 mm / 72 mm (80 mm / 64 mm
*2
)
58 mm / 54 mm (58 mm / 45 mm
*2
)
Printing speed max. 250 mm/s
Paper cutting method Slide cutting method
Printing cutting type Full cut, Partial cut (tab left at the center)
Operating temperature 5°C to 45°C (41°F to 113°F)
Relative humidity
*3
10%RH to 90%RH
Dimensions (W × D × H) 127 mm × 127 mm × 127 mm
*4
Mass Approx. 840 g (excluding the thermal paper)
Input voltage DC24.0 V ±10%
Current consumption
*5
Waiting : Approx. 20 mA avg.
Printing (print ratio 25%) : Approx. 4.7 A max.
Prinring (print ratio 100%) : Approx. 9.0 A max.
*1: This is the numerical value when character spacing is 0 dots.
*2: When selecting 512/360 dots by MS4-5 (Number of Effective Dots Selection).
*3: The guaranteed humidity at each temperature is within the range shown in Figure 18-1.
*4: Excluding projections
*5: Condition: Dynamic division 288 dots printing
Figure 18-1 Operating Temperature and Humidity Range
10 20 30 40 50
90
80
70
[°C]
[% RH]
Temperature
Humidity
10
20
30
40°C, 65%RH
45°C, 50%RH
34°C, 90%RH
0
60
50
40
