Functional Overview
SV
The SEL-487E subscribes to data streams that are pub-
lished by merging units, such as the SEL-421-7 SV Pub-
lisher or SEL-401 Protection, Automation, and Control
Merging Unit. The SEL-421-7 SV Publisher provides
additional backup protection while the SEL-401 can pro-
vide basic backup protection with phase-overcurrent and
breaker-failure protection in the absence of communica-
tion. The data may be synchronized using Precision Time
Protocol (PTP).

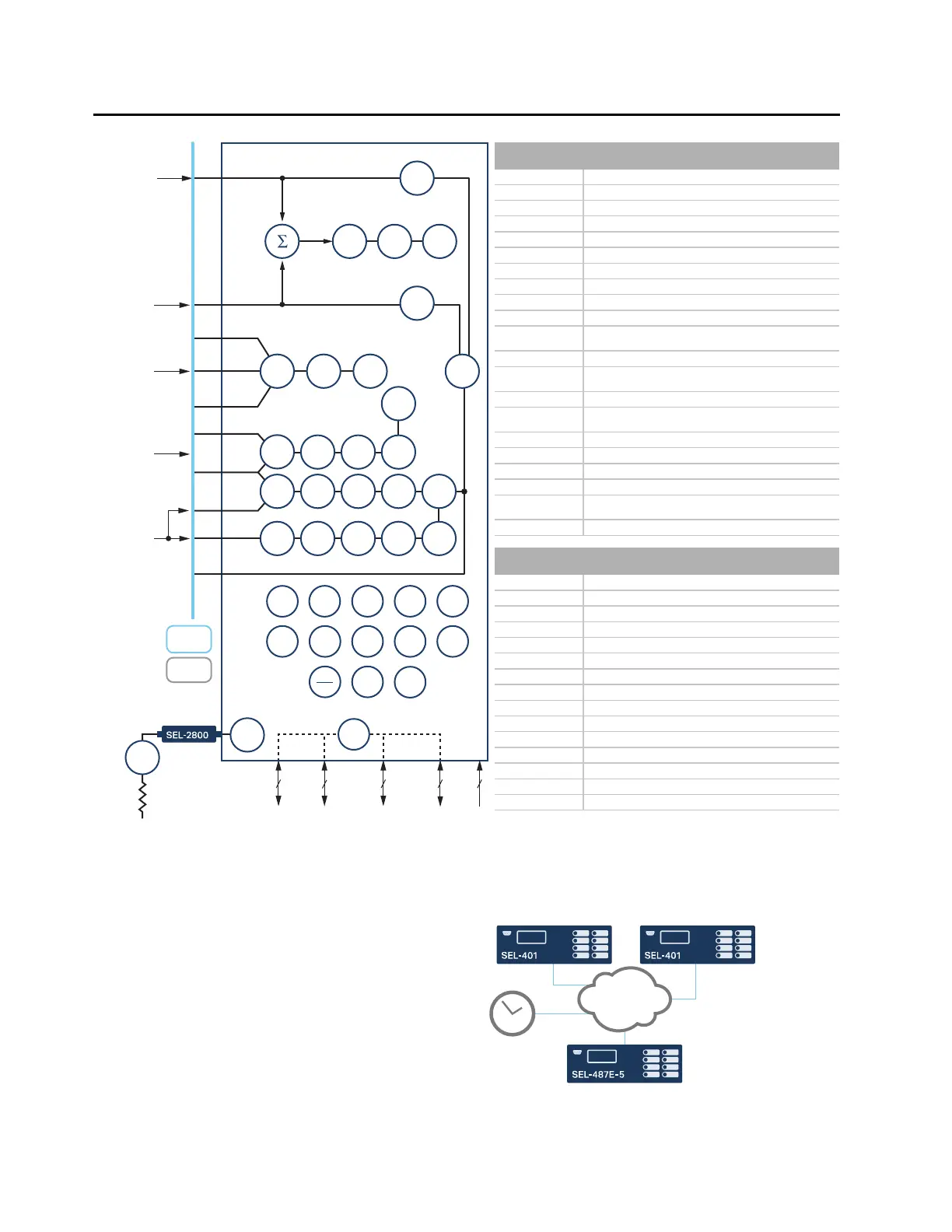

Figure 1 SEL-487E-5 SV Subscriber or TiDL Relay Functional Overview
ENV
49
DSS
Inputs
Process
Bus
Mapped
Breaker
Status and
Currents
Mapped
Breaker
Status and
Currents
Mapped Y
Terminal
Currents
Mapped
Voltages
Mapped
Breaker
Status and
Currents
SEL-487E-5
24
25
51N
50N
27
46
59
50BF
87T
50
50 51 67
REF
50BF
50BF
81
6751
32
21 68
79 87B
BRM
DFR HMI
LGC
MET
PMU
SBMRTU SER
TRM
85
RIO
SIP
HBL
Five-port Ethernet card ordering option depicted.
4
EIA-232
2
Ethernet
Station Bus
(Ports 5C, 5D)
1
IRIG-B
2
Ethernet
Process Bus
(Ports 5A, 5B)
1
Ethernet
Enginnering
Access
(Port 5E)
16
S
E
C
ANSI NUMBERS/ACRONYMS AND FUNCTIONS
16 SEC Access Security (Serial, Ethernet)
21* Phase and Ground Distance
24 Volts/Hertz
25 Synchronism Check
27 Undervoltage
32 Directional Power
46 Current Unbalance
49 IEEE C59.71 and IEC 60255-Compliant Thermal Model
50BF Dual Breaker Failure Overcurrent
50N Neutral Overcurrent
50
Overcurrent
(Phase, Zero-Sequence, and Negative-Sequence)
51N Neutral Time-Overcurrent
51
Time-Overcurrent
(Phase, Zero-Sequence, and Negative-Sequence)
59 Overvoltage
67
Directional Overcurrent
(Phase, Zero-Sequence, and Negative-Sequence)
68* Out-of-Step Block
79* Autoreclosing
81 Over- and Underfrequency
85 RIO SEL M IRRORED B ITS Communications
87T
Transformer Differential
(Unrestrained, Restrained, Neg. Seq.)
87B* Bus Differential (Restrained)
ADDITIONAL FUNCTIONS
BRM Breaker Wear Monitor
DFR Event Reports
ENV SEL-2600 RTD Module*
HBL Harmonic Blocking
HMI Operator Interface
LDP Load Data Profiling
LGC SEL OGIC Control Equations
MET High-Accuracy Metering
PMU Synchrophasors
REF Restricted Earth Fault
RTU Remote Terminal Unit
SBM Station Battery Monitor
SER Sequential Events Recorder
SIP Software-Invertible Polarities
TRM Transformer Monitor
* Optional Feature
Note: Both copper and fiber-optic Ethernet ports are available.
Figure 2 SV Network
q
Process Bus
q
Time synchronization
is required for SV
communications. Time
synchronization can be
done over a process
bus or station bus
