Description of machine parts 87
In the TLH version, the following elements are also present in
addition to the above circuits:
(see fig. 2)
p) H.F. transformer
q) H.F. discharge generation
r) gas solenoid valve
s) cooling unit power supply circuits
Some of these parts are independent, while others are housed
inside the following electronic cards:
G 240 TLH :
F) Card 15.14.254
G) Card 15.14.236
H) Card 15.14.233
I) Card 15.14.240
J) Card 15.14.238
K) Card 15.14.192
n)
m)
k)
a)
o)
q)
r)
l)
c)
b)
i)
p)
j)
d)s) e) f) g) h)e)

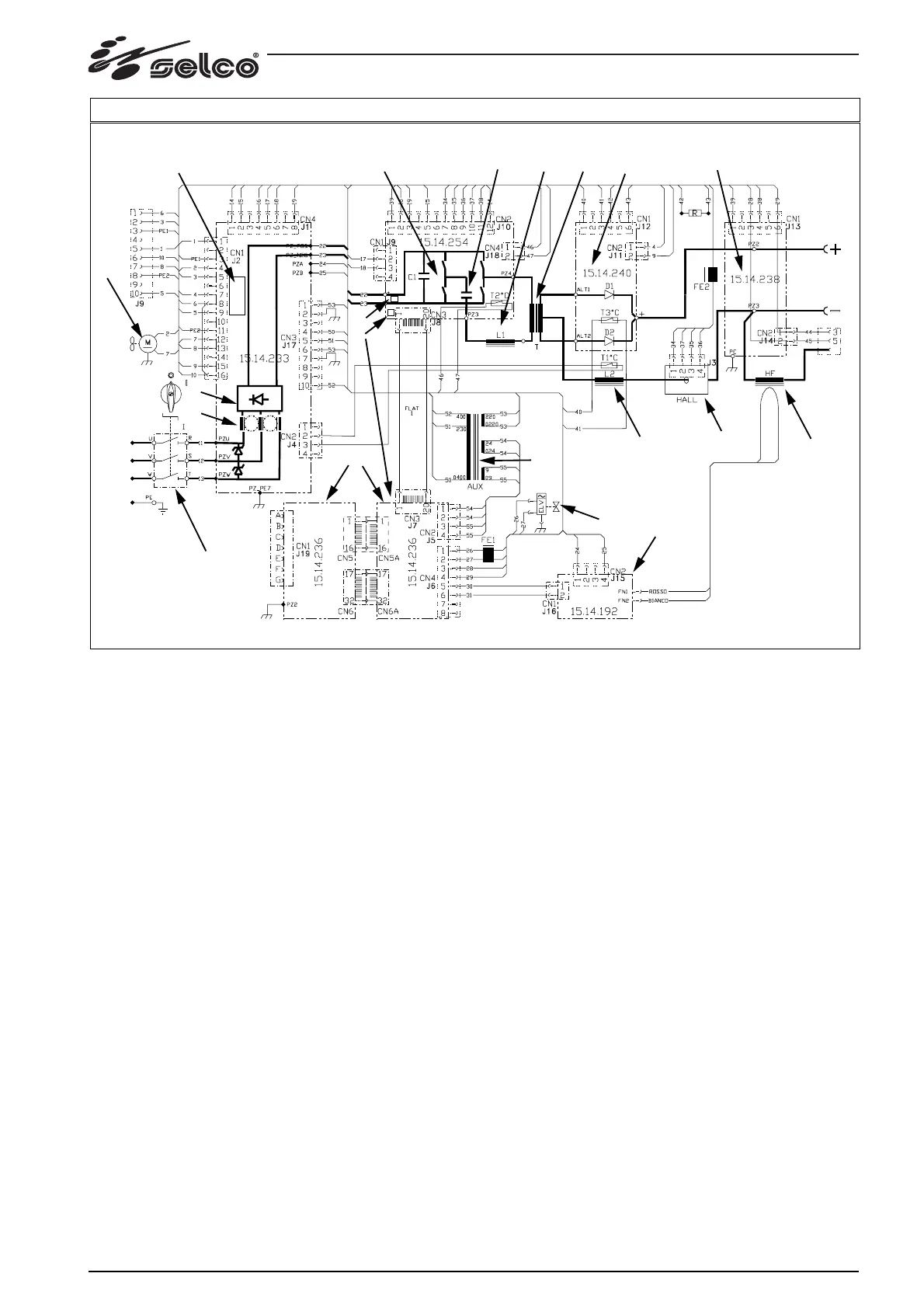

FIG. 2
