22 Wiring and connection diagrams

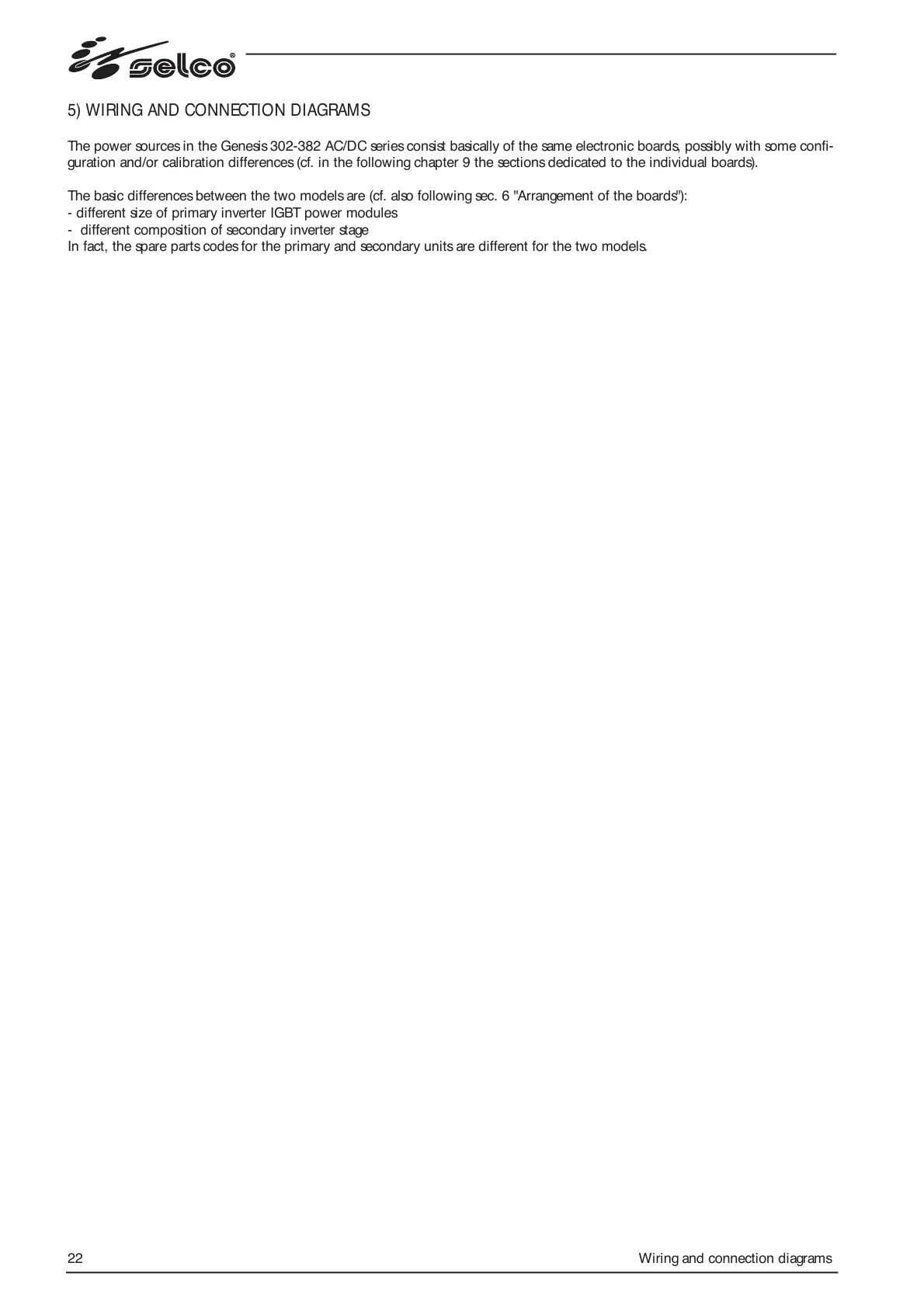

5) WIRING AND CONNECTION DIAGRAMS
The power sources in the Genesis 302-382 AC/DC series consist basically of the same electronic boards, possibly with some confi-
guration and/or calibration differences (cf. in the following chapter 9 the sections dedicated to the individual boards).
The basic differences between the two models are (cf. also following sec. 6 "Arrangement of the boards"):
- different size of primary inverter IGBT power modules
- different composition of secondary inverter stage
In fact, the spare parts codes for the primary and secondary units are different for the two models.
