ATSEL HMI User Manual
Time set up
Function introduction
The clock setting function can be divided into three functions: downloading system
time to HMI, writing time to PLC and synchronizing with PLC.
1. Download system time to HMI

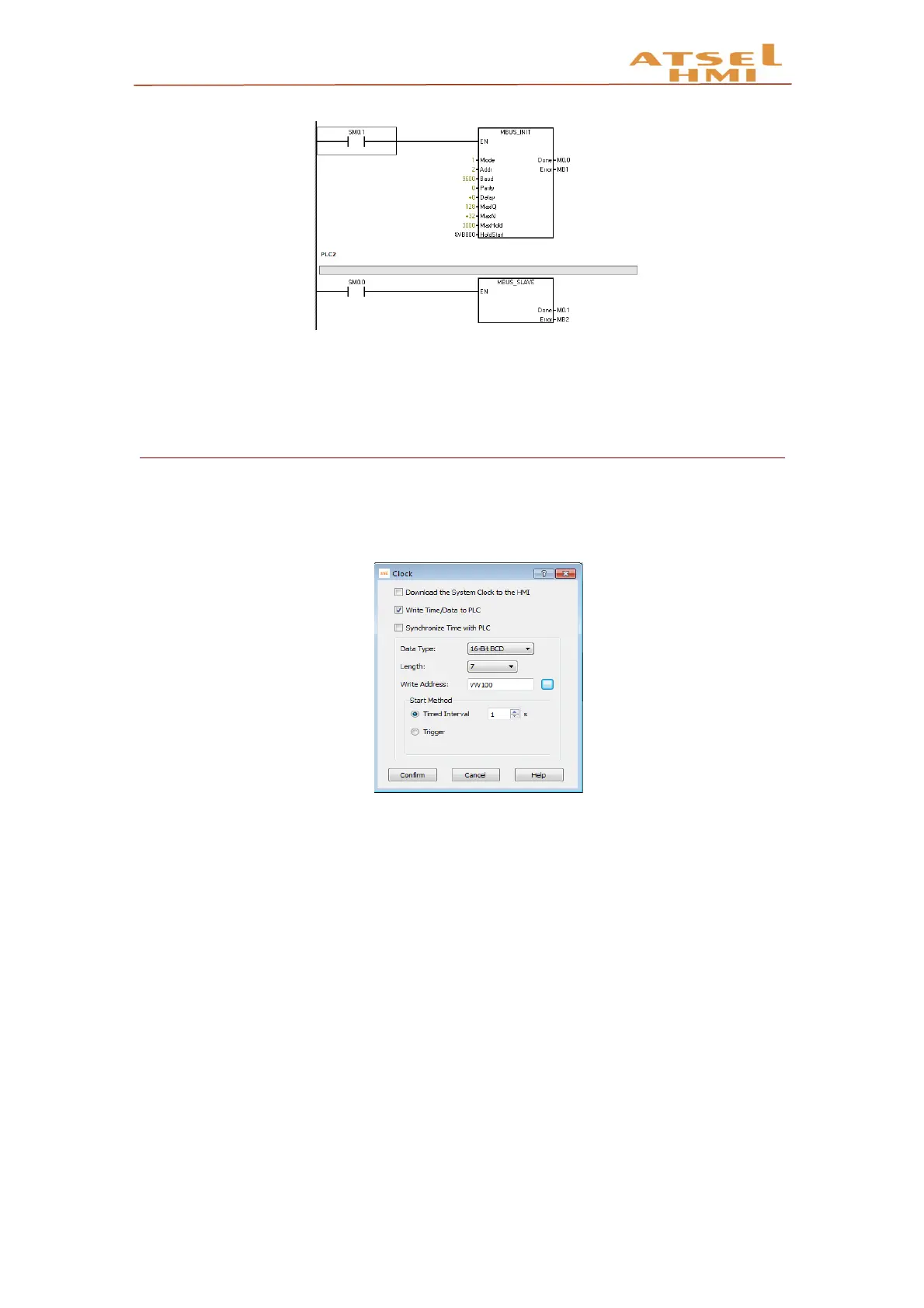

2. Write time to PLC
 Trigger: when the trigger address is 1, write the system time information to the
corresponding PLC address. The data type and length are defaults. The default
value of data type is 16 bit BCD, and the default value of length is 7.
 Write address: write the system time to the corresponding PLC address.
 The start-up model
 Time interval: set the time interval as a time unit and write the system time
information to the corresponding PLC address circularly.
 Trigger: when the trigger address is 1, write the system time information to the
corresponding PLC address.
