SP PRO SYNC Interconnection
Every SP PRO in a Powerchain system must be interconnected via its SYNC interface. Connect every
SP PRO together via the SYNC-1 or SYNC-2 connection, using the supplied cat5 cables.
The SYNC-1 and SYNC-2 connection points are identical, so either may be used for each connection.
Each SP PRO can be connected together in any sequence, with the most logical sequence being
connections between adjacent SP PROs. Ensure that all SP PROs in the Powerchain system are linked into
one single SYNC chain.
Note: Termination connectors MUST be fitted to the two unused SYNC connectors.

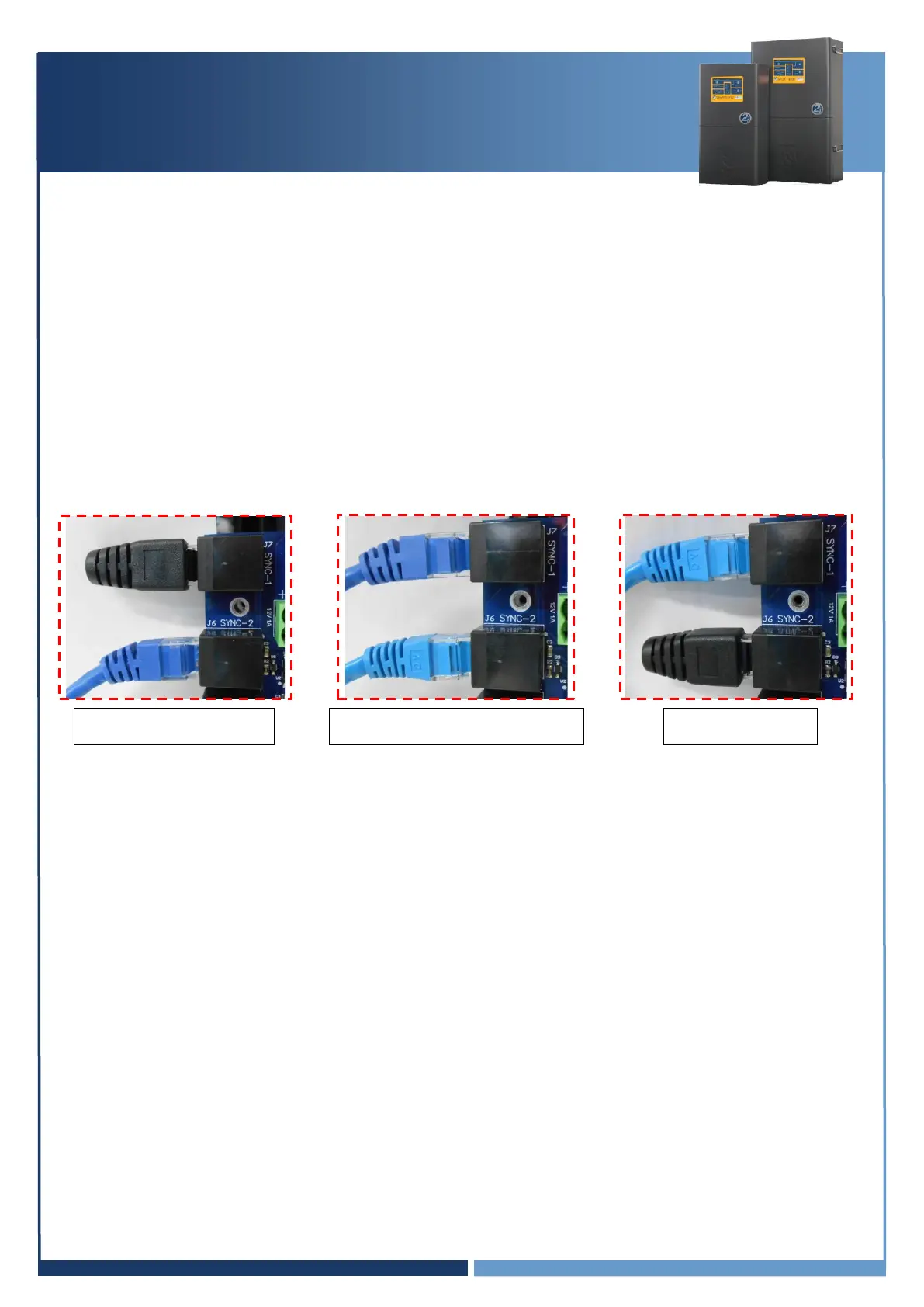

SYNC interconnection of the SP PROs
