6
Step 2: Check information
In order to install antenna, you need to find skew, elevation and azimuth angle by referring the table on the
back of the manual. If you can’t find your location, please refer to the information of the nearest area from
your location. This manual will show you the installation example to receive ASTRA1 satellite in Brest region
of France. The angle information for Brest region is Sk : -12.6°, El : 30°, Az : 149.6°
Check
A1
A1
B1
B1
S5
S2
S3
N1
Check 30
A1
B1
B2
B1

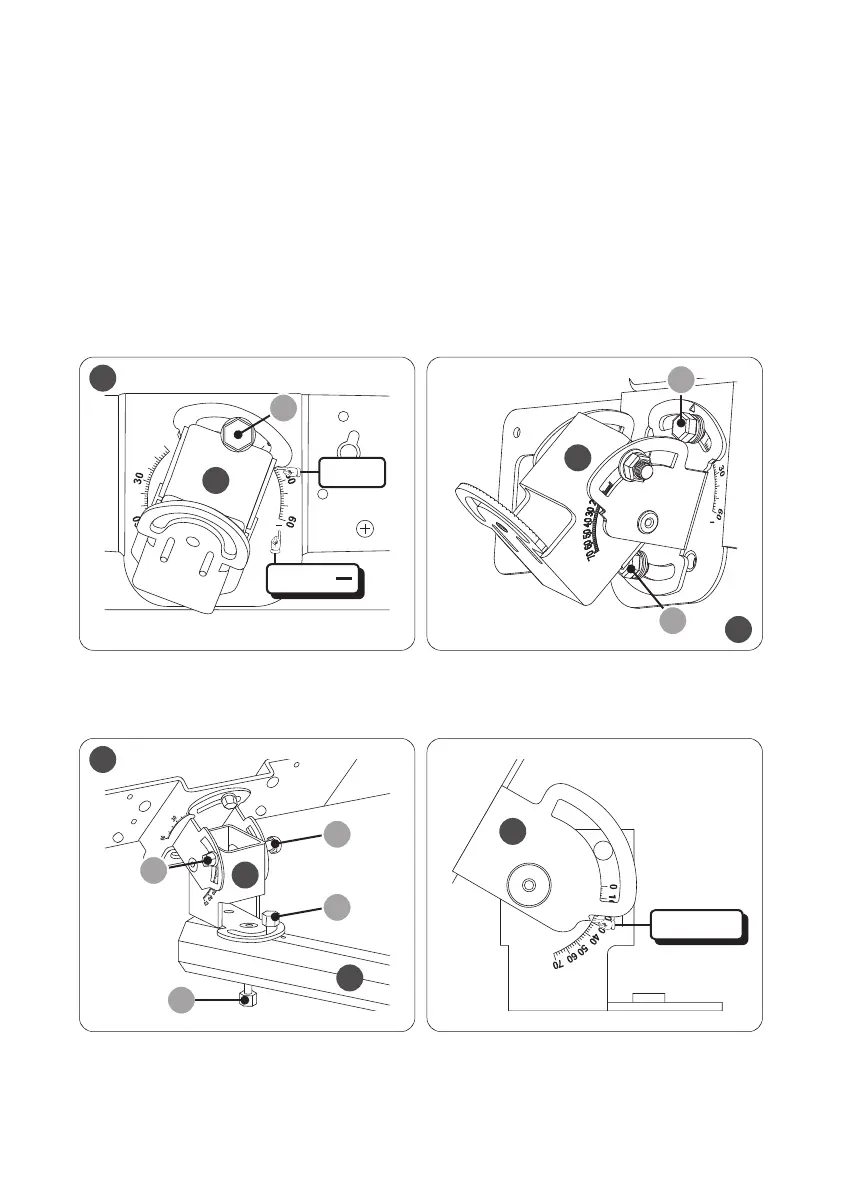

Fix skew - Joint angle bracket (B1) and antenna body (A1)
Joint angle bracket and antenna body by screw adjusting skew angle at -12.6
1)
Fix elevation - Joint antenna body (A1) and main support (B2)
Joint antenna body and main support. For delicate adjustment elevation and azimuth angle, please don’t
fix bolt and nut tightly.
2)
Step 3: Part assembly
S2
S2
S2
-12.6
