9
ENGLISH
15mm
CONNECTOR COVER
F CONNECTOR
8mm
3mm
Step 5: SELFSAT-H22dCSS+ installation and how to use
SELFSAT-H22dCSS+ antenna provides one dCSS output.

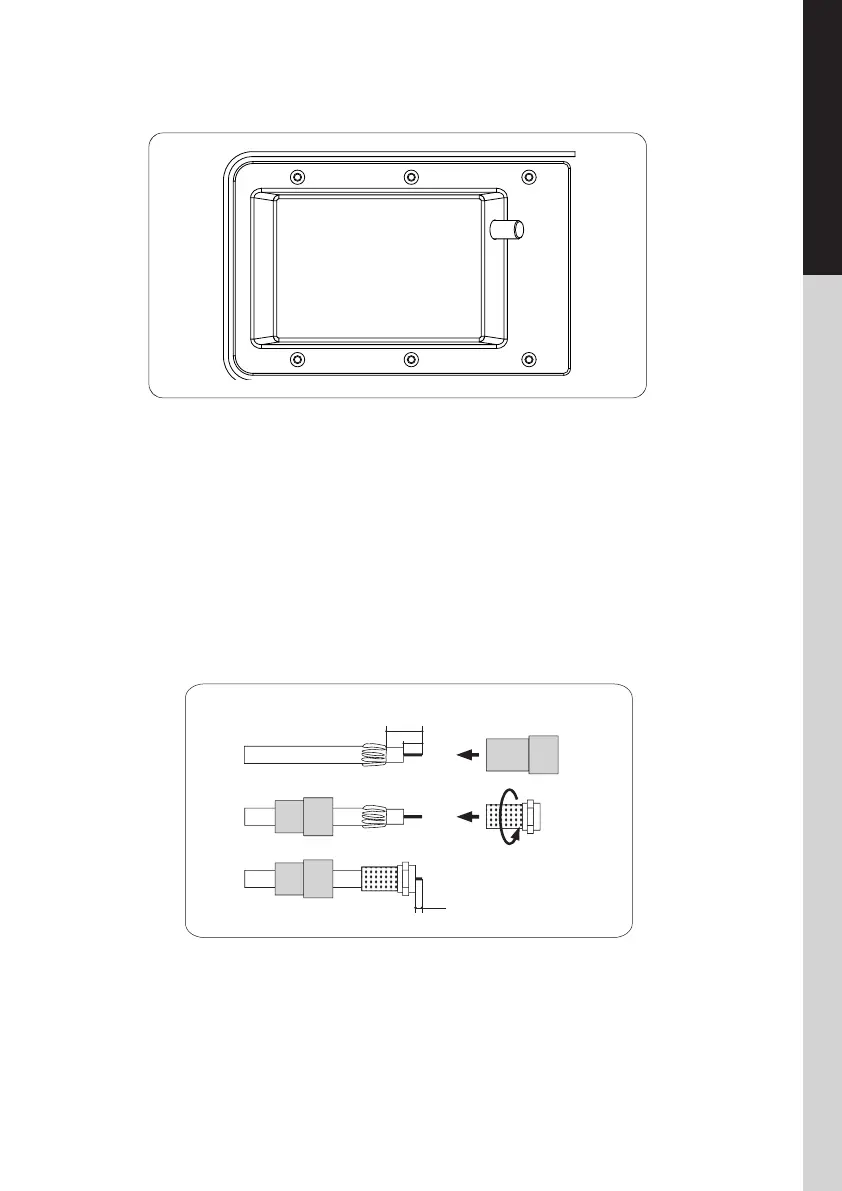

1) Connect the SELFSAT-H22dCSS+ antenna to the STB
Once you have installed the antenna in an open space or mounted the way you want it to be, the next step is
to connect them all together.
In order to be able to watch your favorite satellite programs, you need to connect your satellite antenna to a
STB with a cable. The cable between the antenna and the STB should not exceed 30m as it
will decrease the quality of the signal. The use of a long or bad quality cable and/or unisolated jacks can cause
lowering the signal level, it would be preferable to use an RG6 Coaxial cable (HF 17VATC or 19VATC cable), in
order to minimize a signal loss.
Just connect the RF coaxial cable from the SELFSAT-H22dCSS+ antenna to your STB.
- How to prepare the cable?
