General Cutting Chamber
and Knife Settings

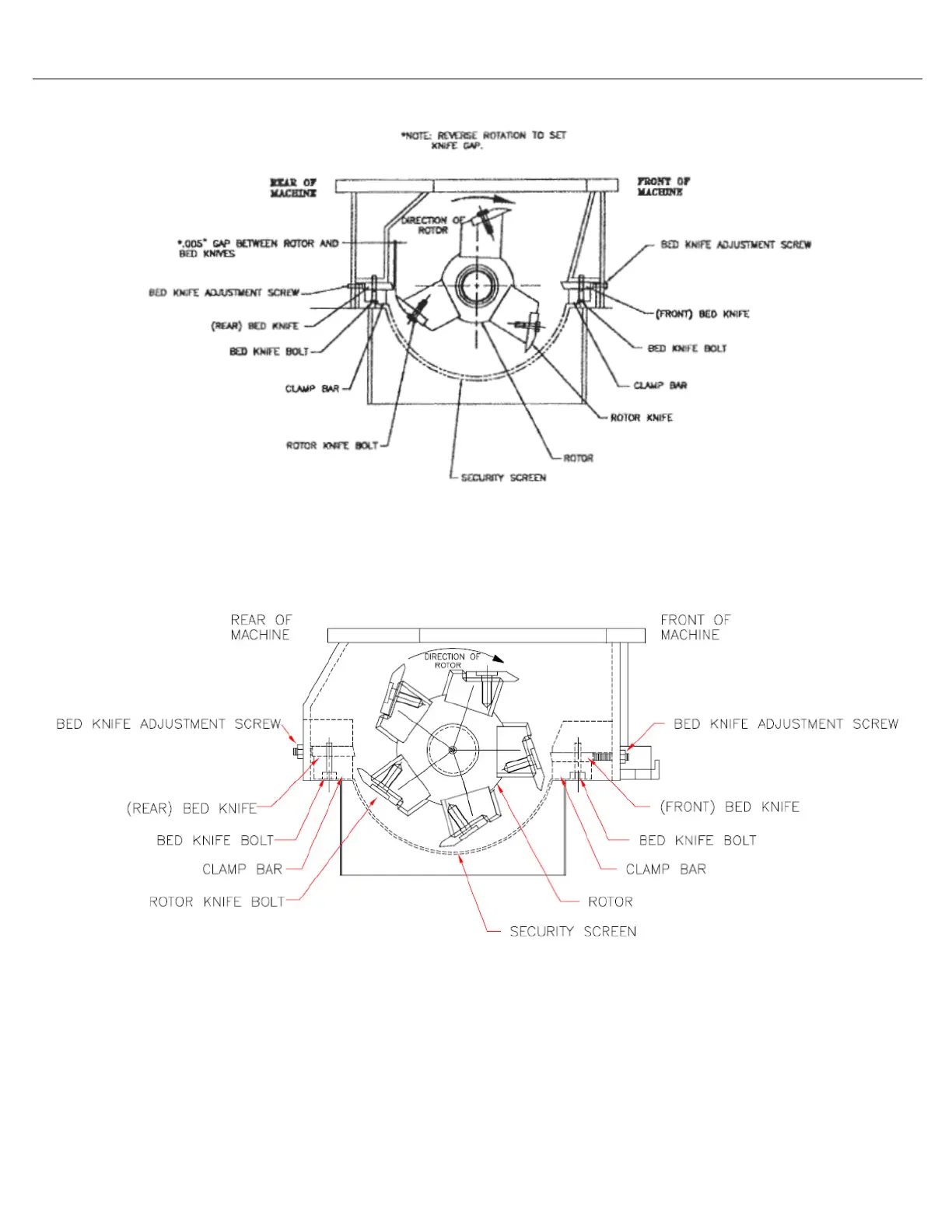

Typical Standard Cutting Chamber Assembly
(3 Rotor and 2 Bed Knives)
Typical Standard Cutting Chamber Assembly
(5 Rotor and 2 Bed Knives)
