Wall Mounting (NEMA 14-50 Version)

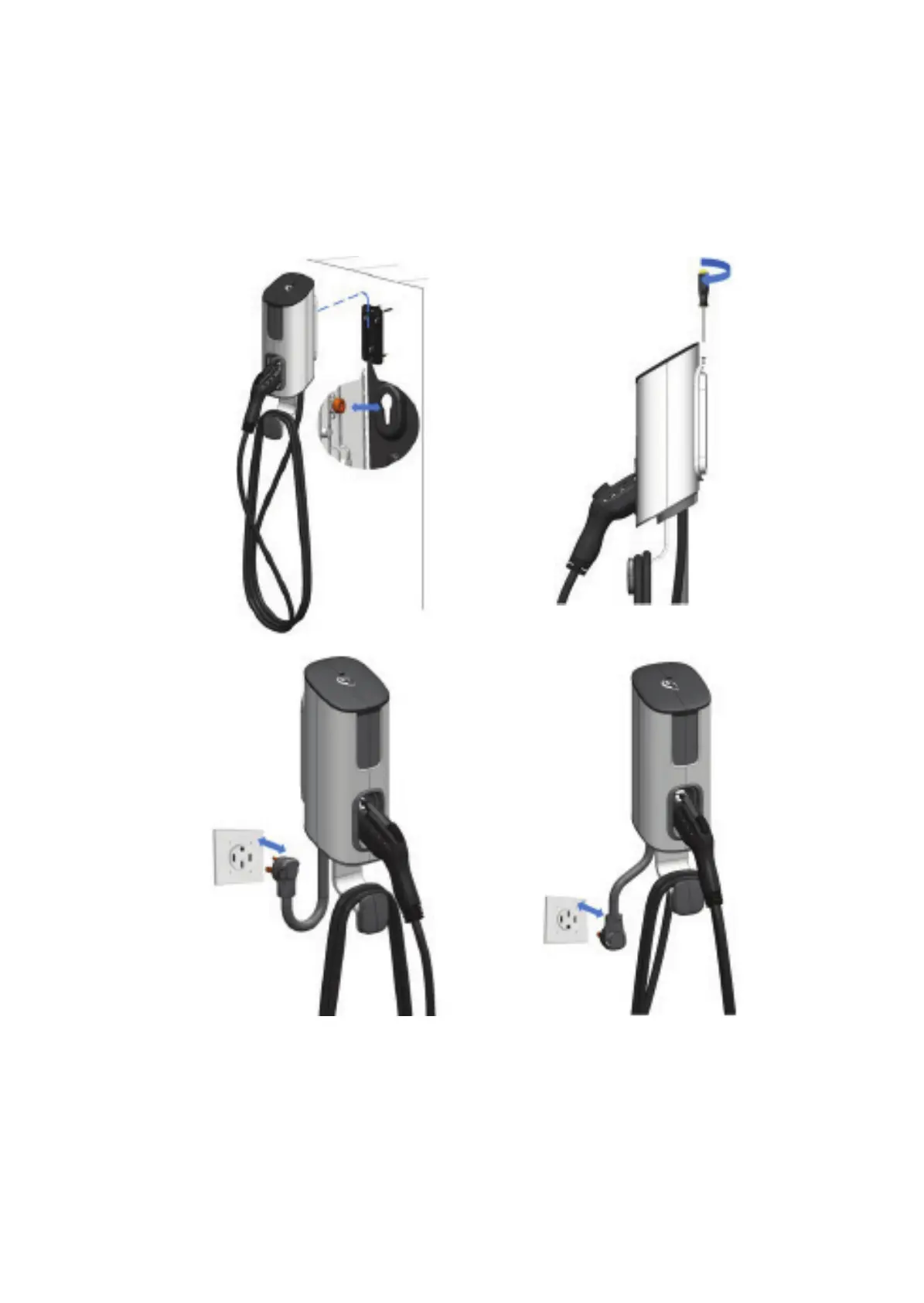

1. Locate the 3 mounting screws on the rear of the charger. Position them into the corresponding keyhole slots on
the wall mount bracket. Slide downward until fully seated.
2. Reinstall the top mounting screw using the supplied Allen wrench to secure the charger. The charger should
feel secure after it is fully seated. If the charger can be easily moved then remove the charger, slightly tighten
the three mounting screws on the rear of the charger and replace the charger on the bracket.
3. Insert the NEMA 14-50 plug into the NEMA 14-50 receptacle. Ensure that the plug is fully seated into
the receptacle.
