SemaConnect 4 EV Series - Hardwired Wall Mounting

7
Wall Mounting (Hardwired Version)
The hardwired version of the SemaConnect Series 4 EV Home Charger is manufactured with 3 feet of cable that
has been listed by a Nationally Recognized Testing Laboratory (NRTL) to the appropriate UL standards for the
specied ampere ratings.
Ensure that the selected charger location is within reach of the site rated junction box using the supplied 3 feet of
manufactured cable.

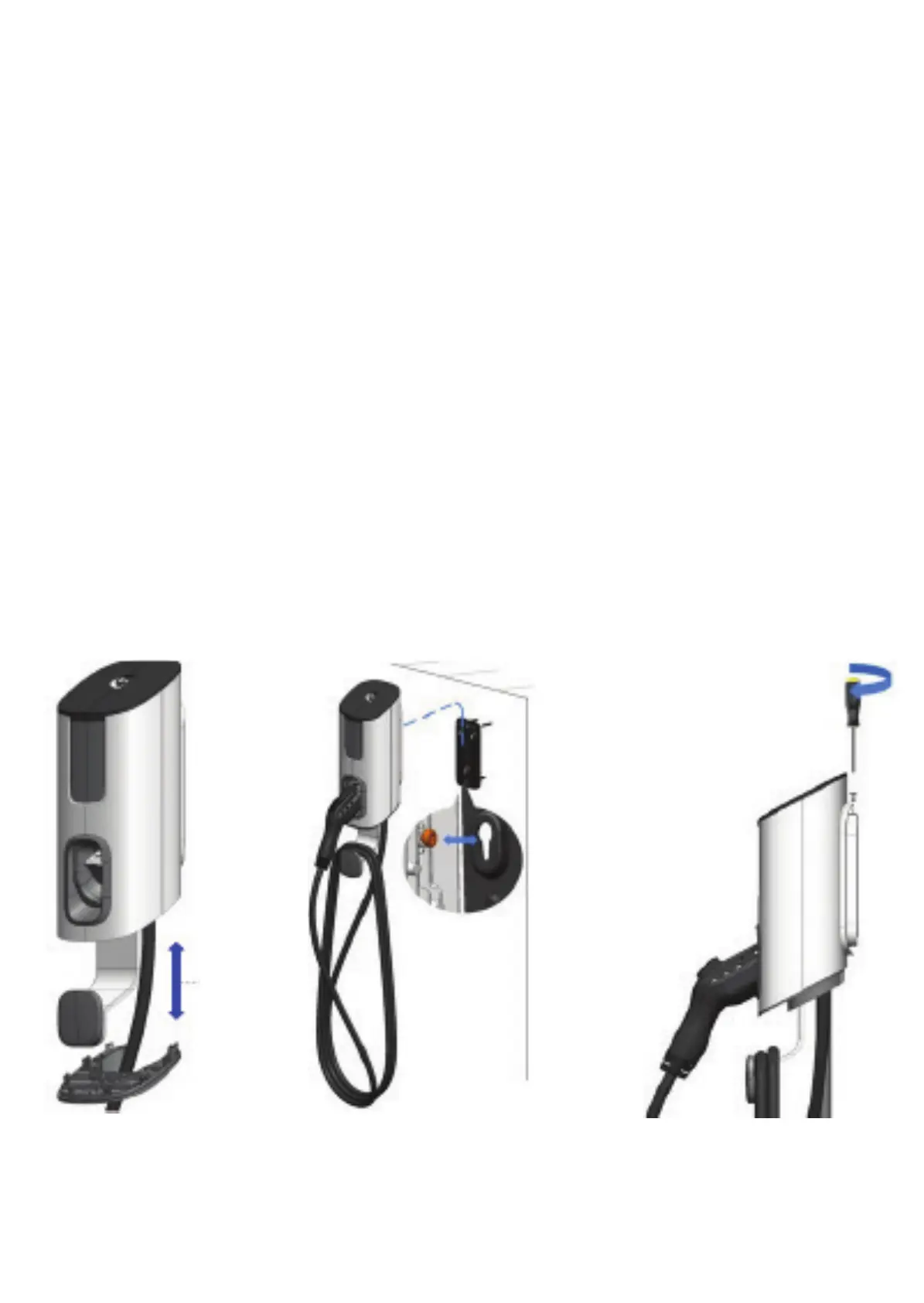

1. To sufciently attach and tighten the 3/4” Liquid Tight Flexible Metal Conduit (LFMC) to the charger, the
bottom plate must be removed. Place the charger face down on a safe surface to avoid damage. Grasp the
outside of the charger with both hands, position thumbs on the inner edge of the protective lower cover and
apply downward pressure on the cover to unseat it from the charging station. Store protective cover in a safe
place to avoid damage or loss.
2. Measure and cut 3/4” LFMC to sufcient length between the charger and site rated junction box. Attach and
tighten the 3/4“ LFMC to the charger using the manufacturer-supplied 3/4“ LFMC connector. Re-install the
protective cover.
3. Locate the 3 mounting screws on the rear of the charger. Position them into the corresponding keyhole slots
on the wall mount bracket. Slide downward until fully seated.
4. Reinstall the top mounting screw using the supplied Allen wrench to secure the charger. The charger should
feel secure after it is fully seated. If the charger can be easily moved then remove the charger, slightly
tighten the 3 mounting screws on the rear of the charger and replace the charger on the bracket.
5. Attach and tighten the 3/4“ LFMC to the site rated junction box. Connect the supplied black and red
conductors to the 240-volt supply (ungrounded) conductors, and the supplied green conductor to the
grounding conductor.
Install SemaConnect Series 4 EV Home Charger in accordance with all State, Local, and National Electric Codes.
