pg. 15
!
Installation Instructions
1) Check Boxes for Correct Content
2) Pre-Installation Preparation

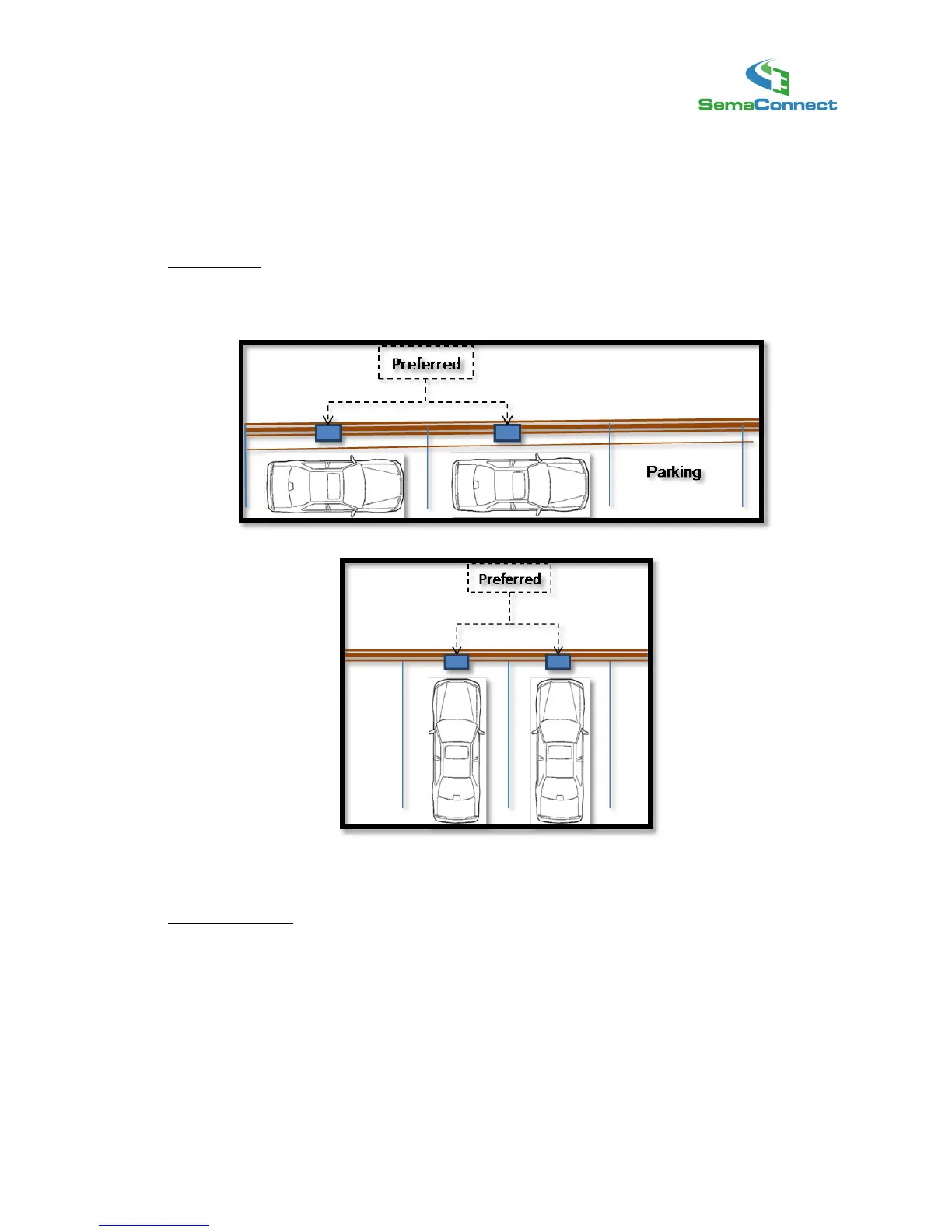

Site Selection
The charging station should be positioned such the distance between the charging station and
electric vehicle is sufficient to minimize likelihood of damage (suggested min. 3 ft).Two alternatives
are illustrated below
Preparing the Wall
At the selected location, place the wall-mount template on the wall such that the top of the template
is at a height of 49 inches (Check local codes). The equipment should be installed at least 18
inches above the floor.
With the help of a Level, ensure the template is in an upright position. Mark locations for the bolt
locations. If running wire inside wall also mark Wire Wall Hole.
