SemaConnect ChargePro 620 - Wiring Color Code; Wiring Diagram

!
pg. 6
!
Wiring Color Code
The illustrations and diagrams in this document reflect Level-2 wiring color code.
Strictly adhere to the wire color codes to ensure proper installation.
Use 10 AWG wire minimum (ensure compliance with electrical codes).
COLOR%CODE%
BLACK%
RED%
GREEN%
SERVICE%
PHASE%A%(L1)%
PHASE%B%(L2)%
GROUND%

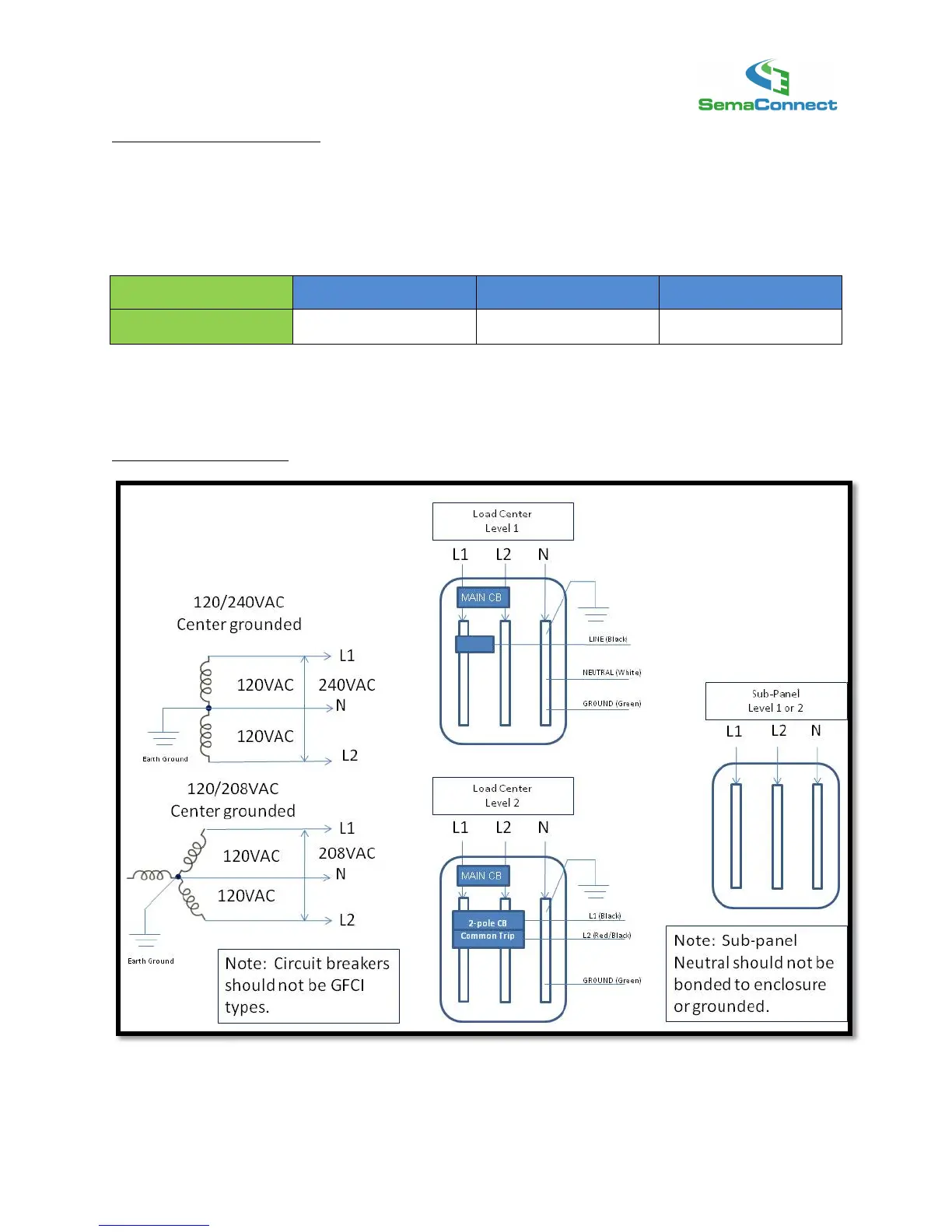

Wiring Diagram
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
