pg. 23
!
!

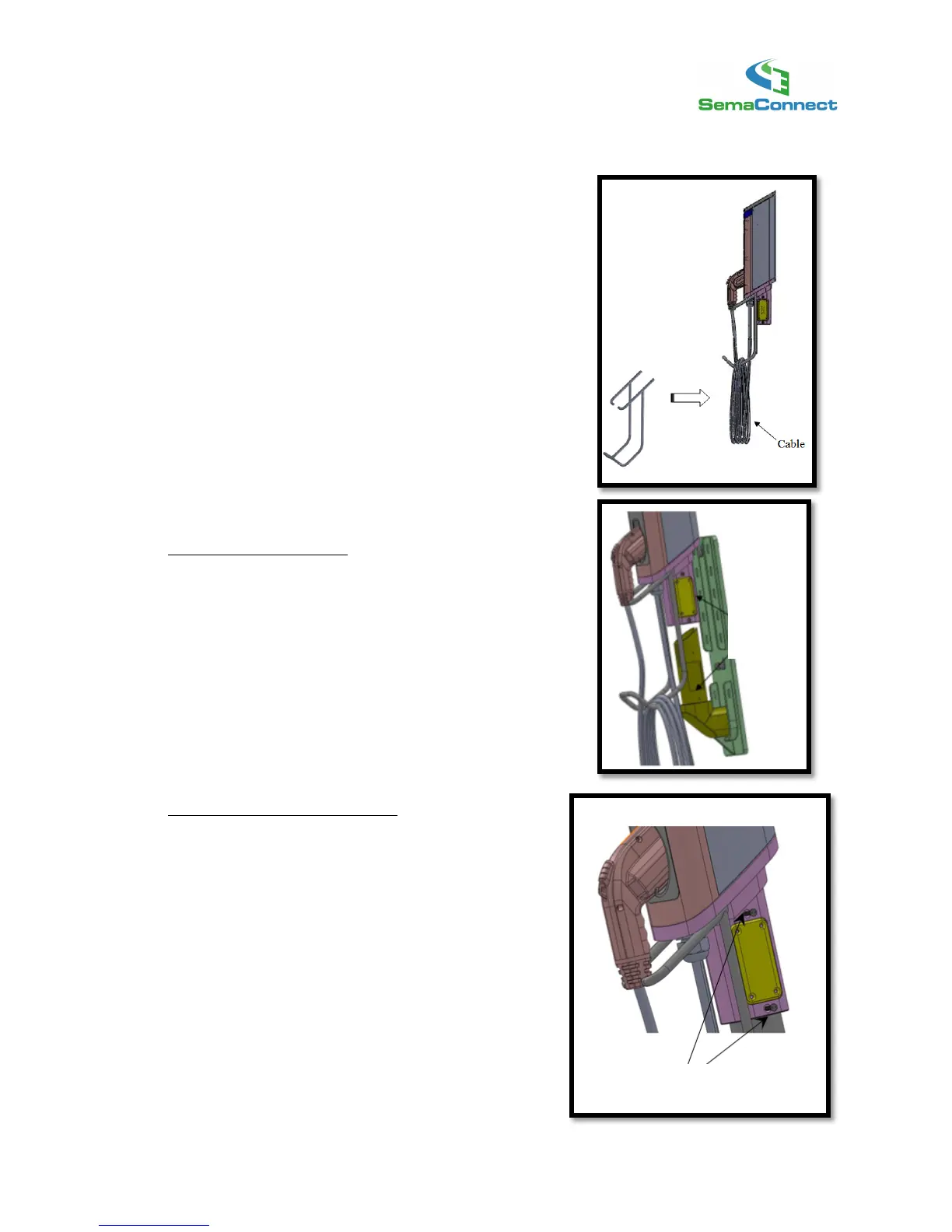

4) Attach Cable Rack!
Attach the Cable Rack to the underside of the Charging
Station Head Unit (see diagram) using the four (4) Cable
Rack screws.
After tightening screws, check that the Cable Rack is secure
and is firmly attached to the Head Unit.
5) Install the Charging Station Head Unit
Mount the charging station
Carefully insert the Charging Station Head Unit on top of
the Wall Mount Bracket Post as shown in the diagram.
Align the access panel on the Charging Station Head Unit
with the panel on the Wall/Pole Mount Bracket Post.
Firmly fasten the charging station
Attach the Charging Station Head Unit to the Post
using the four (4) mounting screws provided (two on
each side).
Ensure the charging station is plumb using a Level.
Check that the Head Unit is now securely fastened to
the Post.
