Wireless & Sensing Products
Development Kit User Guide Rev.1.0
UG.DEV.SX1280-1.W.APP February 2017
12 of 15
Semtech
7. Radio Settings
The radio settings available depend upon the modulation, denoted
Mod in the sub-menu Radio Settings. For each
modem you can modify the modulation and power parameters. The registered settings are proper to each
modulation.
LORA Modulation 7.1.
The radio settings available for
LORA modulation are:
- The Frequency (
Freq) as described in
Section 7.5
- The Transmission Power (Tx Pow): in steps of 1 dBm between -18 dBm and
+13 dBm
- Param 1: choose a Spreading Factor between SF5 and SF10
-
Param 2 : choose a BandWidth (BW) of either 400 kHz, 800 kHz or 1.6 MHz
-
Param 3: The Coding Rate (CR) of the Forward Error Correction applied to
the packet, of either CR 4/5, 4/6,4/7, 4/8 or CRLI 4/5, 4/6, 4/7
- Payload: size of the payload between 12 and 248 bytes
FLRC Modulation 7.2.
The radio settings available for
FLRC modulation are:
- The Frequency (
Freq) as described in
Section 7.5
- The Transmission Power (Tx Power): in steps of 1 dBm between -18 dBm
and +13 dBm
-
Param 1: choose a data rate and an associated bandwidth (BW)
-
Param 2 : The Coding Rate (CR) of the Forward Error Correction applied to
the packet, of either 1, ½ or 3/4
-
Param 3: Bandwidth-Time bit period product (BT) of either 1, 0.5 or OFF
- Payload: size of the payload between 12 and 120 bytes

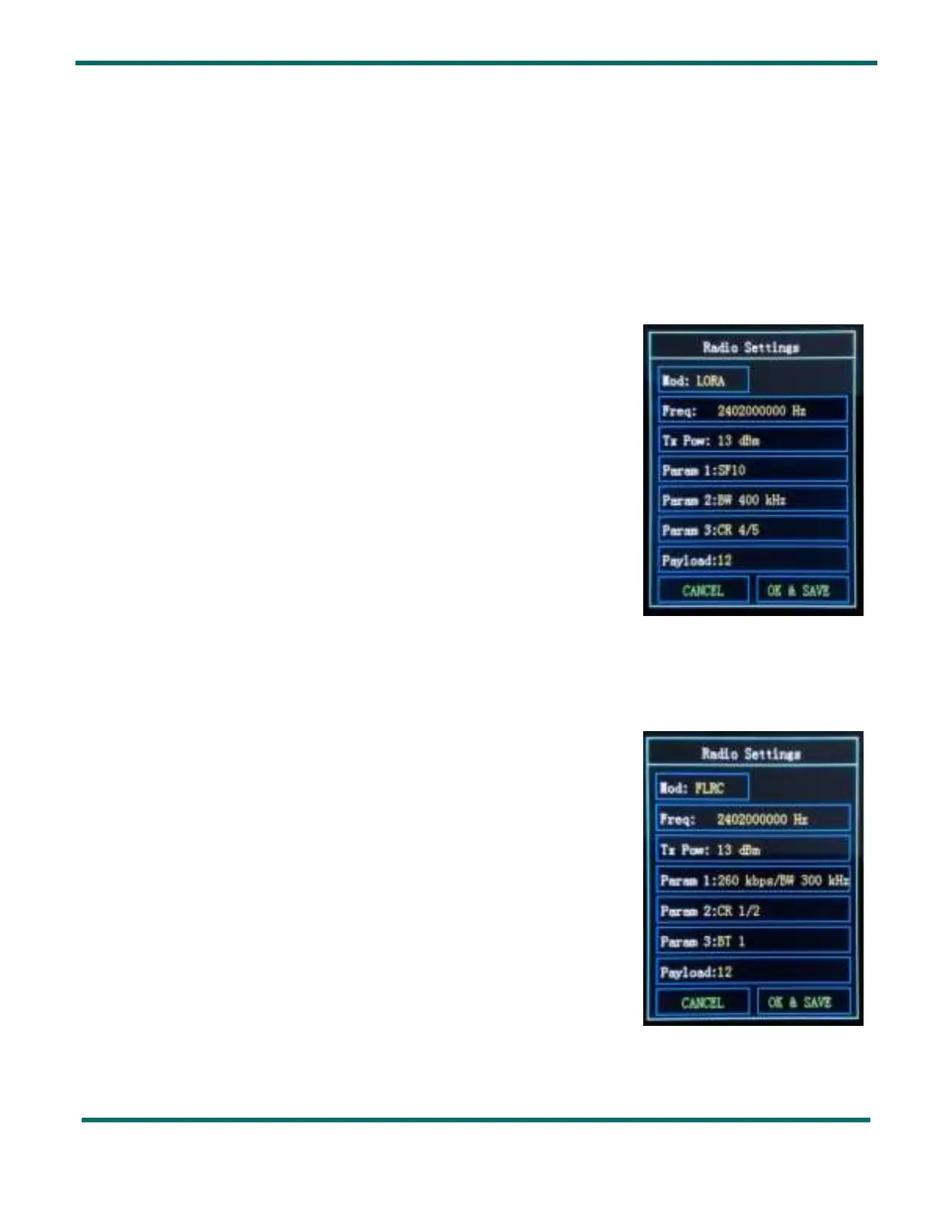

Figure 14: LORA Radio Settings Display
Figure 15: FLRC Radio Settings Display
