Wireless & Sensing Products
Development Kit User Guide Rev.1.0
UG.DEV.SX1280-1.W.APP February 2017
4 of 15
Semtech
1. Contents of delivery
The Development Kits for the SX1280 and SX1281 transceivers are delivered with the following contents:
- 2 SX1280 Development Kits
- 2 connection cables Mini-USB / USB
Before powering the kit, make sure to assemble the three parts shown in the image below

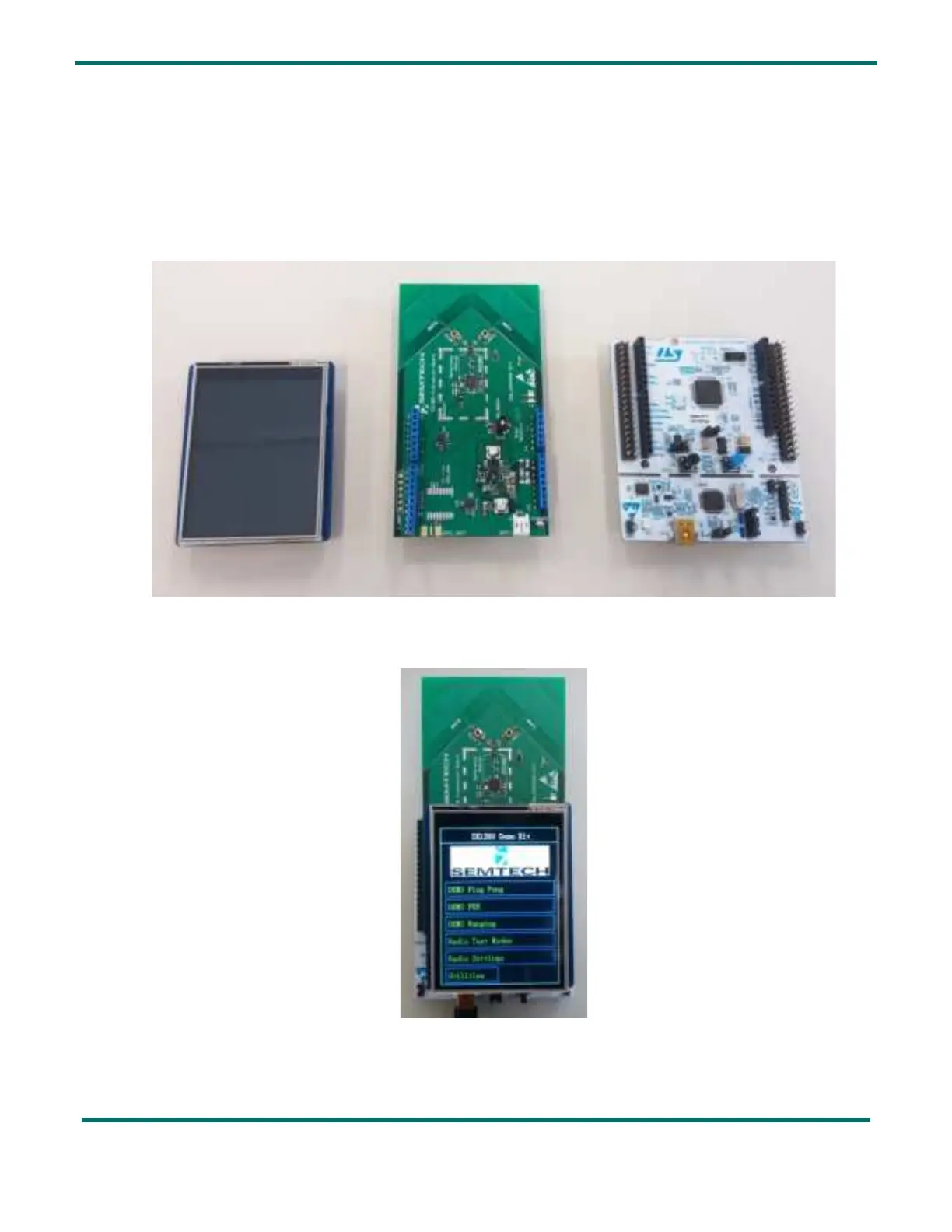

Figure 1: From left to right: screen, radio board and microcontroller MBED board
When you assemble the parts, make sure that they are correctly oriented, as shown below:
Figure 2: Screen, radio board and MBed board correctly assembled
