OPERATING MODE
The Gateway allows you to operate in the following mode:

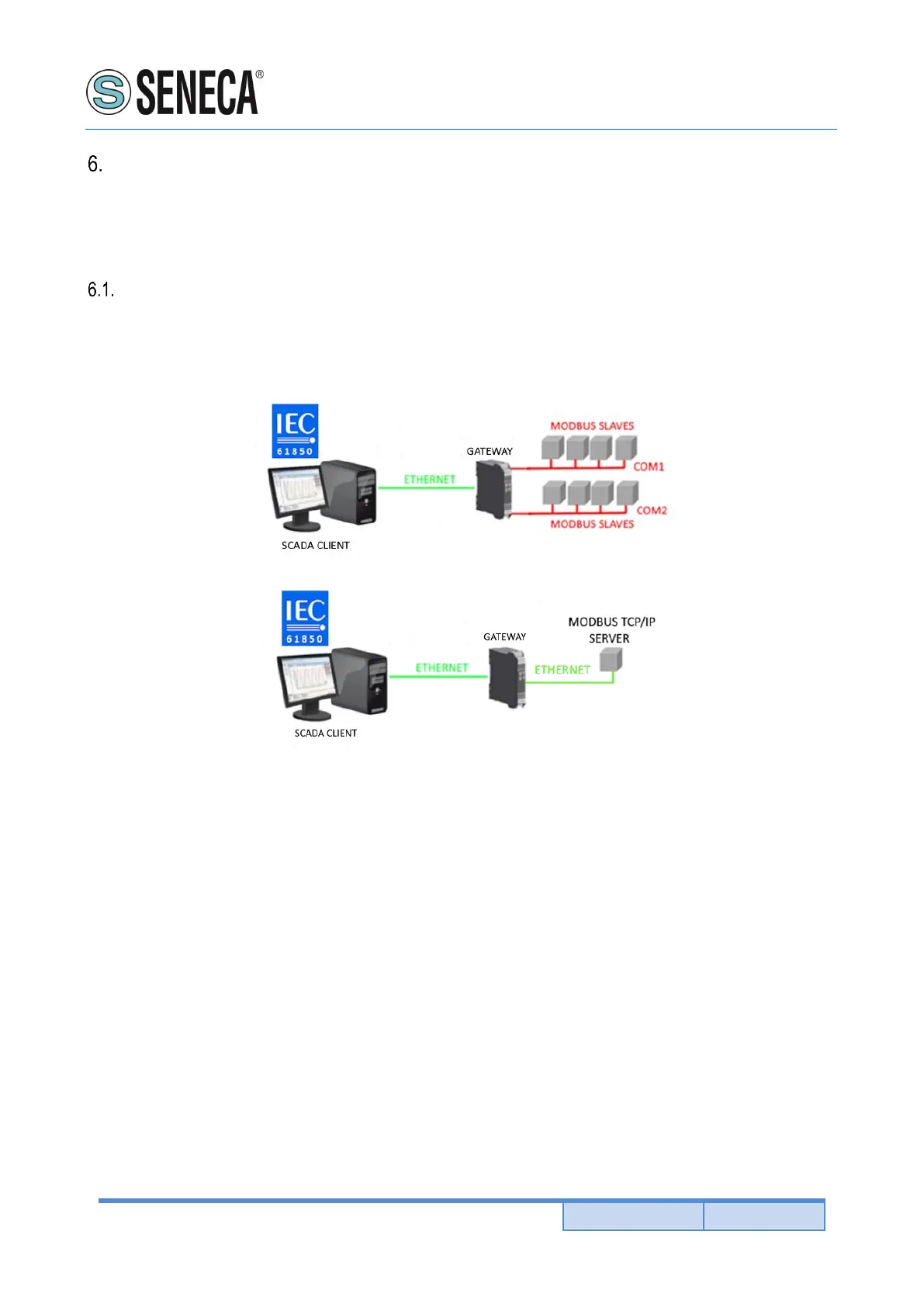

GATEWAY IEC 61850 SERVER / MODBUS RTU/TCP MASTER
GATEWAY IEC 61850 SERVER / MODBUS MASTER
This operating mode allows to connect an IEC 61850 SCADA client with Modbus RTU/ASCII Slave and/or
remote TCP Server I/O devices
The Gateway, on the field side, works as a Modbus master / Modbus Client device and on the other side as an
IEC 61850 server via Ethernet.
The Modbus requests (read or write commands) are configured in the gateway device and an ICD file is
automatically generated according to the SCL standard.
Once this file is imported into the SCADA (it is also possible to search for the node) all the configured IO will be
accessible without any other configuration.
In addition to the serial devices, it is also possible to connect up to 3 remote Modbus TCP-IP servers.
