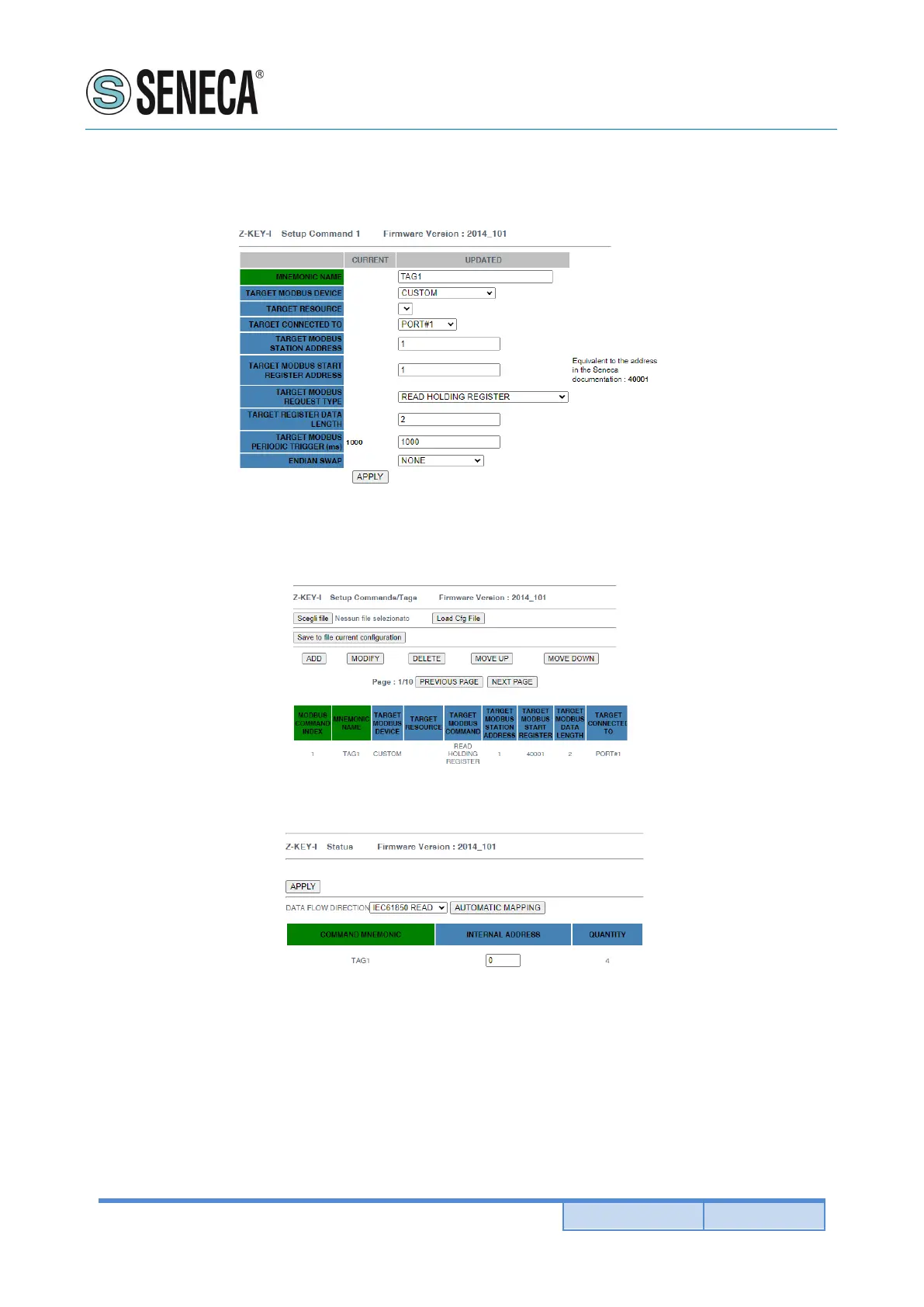

Let's read 2 holding registers 40001 and 40002 (offset 0 and 1) from the device with station address 1, press
the "ADD" button:
Confirm with "APPLY">
Now the command will appear in the command list:
Now the read bytes are updated in the internal memory of the gateway, let's go to the I/O Mapping page:
