Sennheiser evolution wireless series EM 100 - Overview of the Displays

Product overview
9

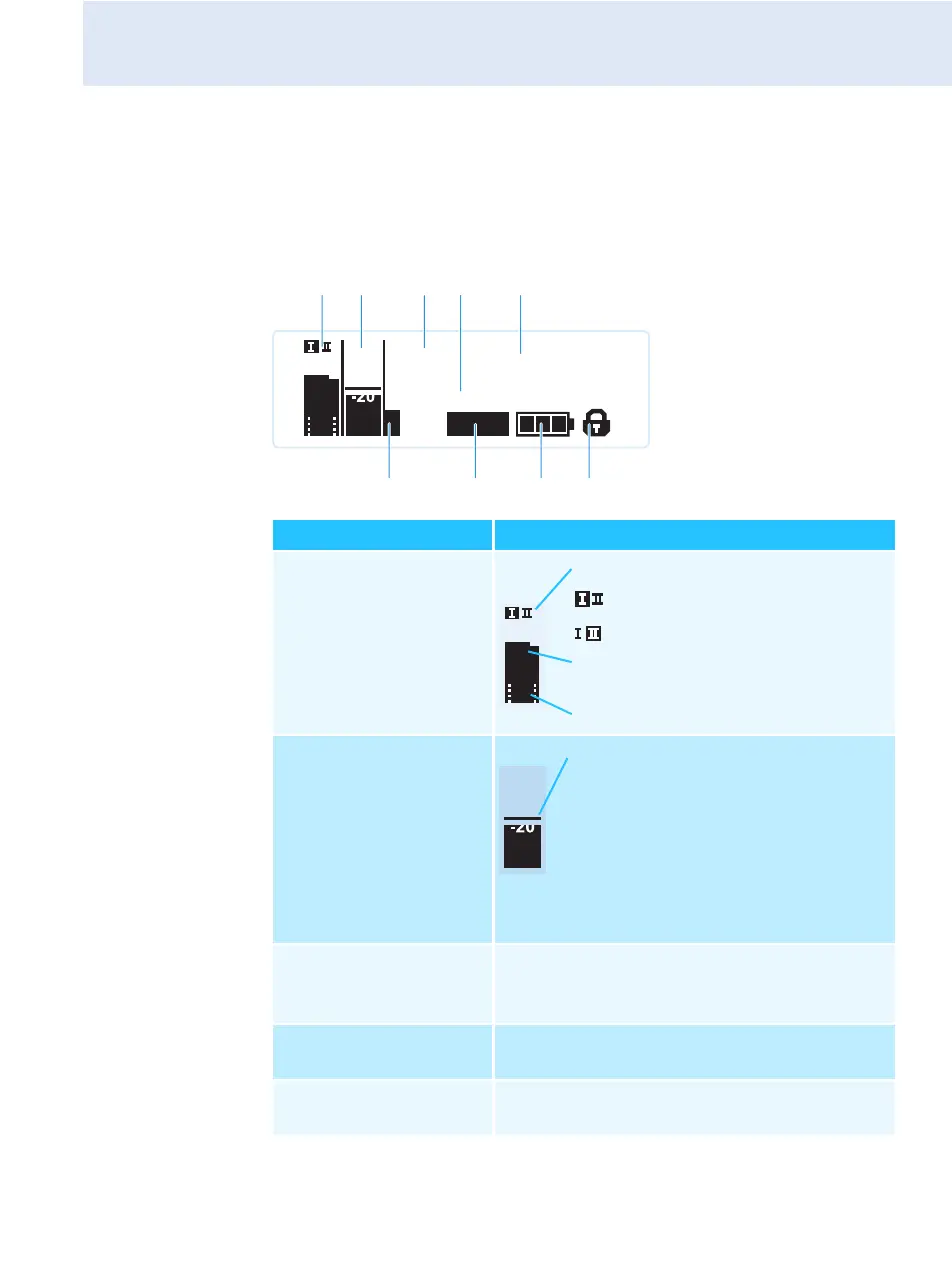

Overview of the displays
After switch-on, the receiver displays the standard display “Receiver
Parameters”. For further illustrations and examples of the different stan-
dard displays, please refer to page 24. This standard display displays the
operating states of the receiver.
Display Meaning
 RF level “RF”
(Radio Frequency)
 Audio level “AF”
(Audio Frequency,
see page 36)
 Frequency bank
and channel
(see page 35)
Current frequency bank and channel number
 Frequency
(see page 35)
Current receiving frequency
 Name
(see page 36)
Freely selectable name of the receiver
533.875
ew100 G3
20.12
MUTE
MHz
P
PEAK
-10
0
40
25
10
-20
-30
AF
RF


 햴
40
25
10
RF
Diversity display:
Antenna input I is active
Antenna input II is active
RF signal level:
Field strength of the received signal
Squelch threshold level
PEAK
-10
0
-20
-30
AF
Modulation of the transmitter
with peak hold function
When the display for audio level
shows full deflection, the audio level
is excessively high. When the trans-
mitter is overmodulated frequently
or for extended periods of time, the
“PEAK” display is shown inverted.
