Sennheiser evolution wireless series EM 100 - Product Overview; Overview of the EM 100 G3 Receiver

Product overview
8
Product overview
Overview of the EM 100 G3 receiver

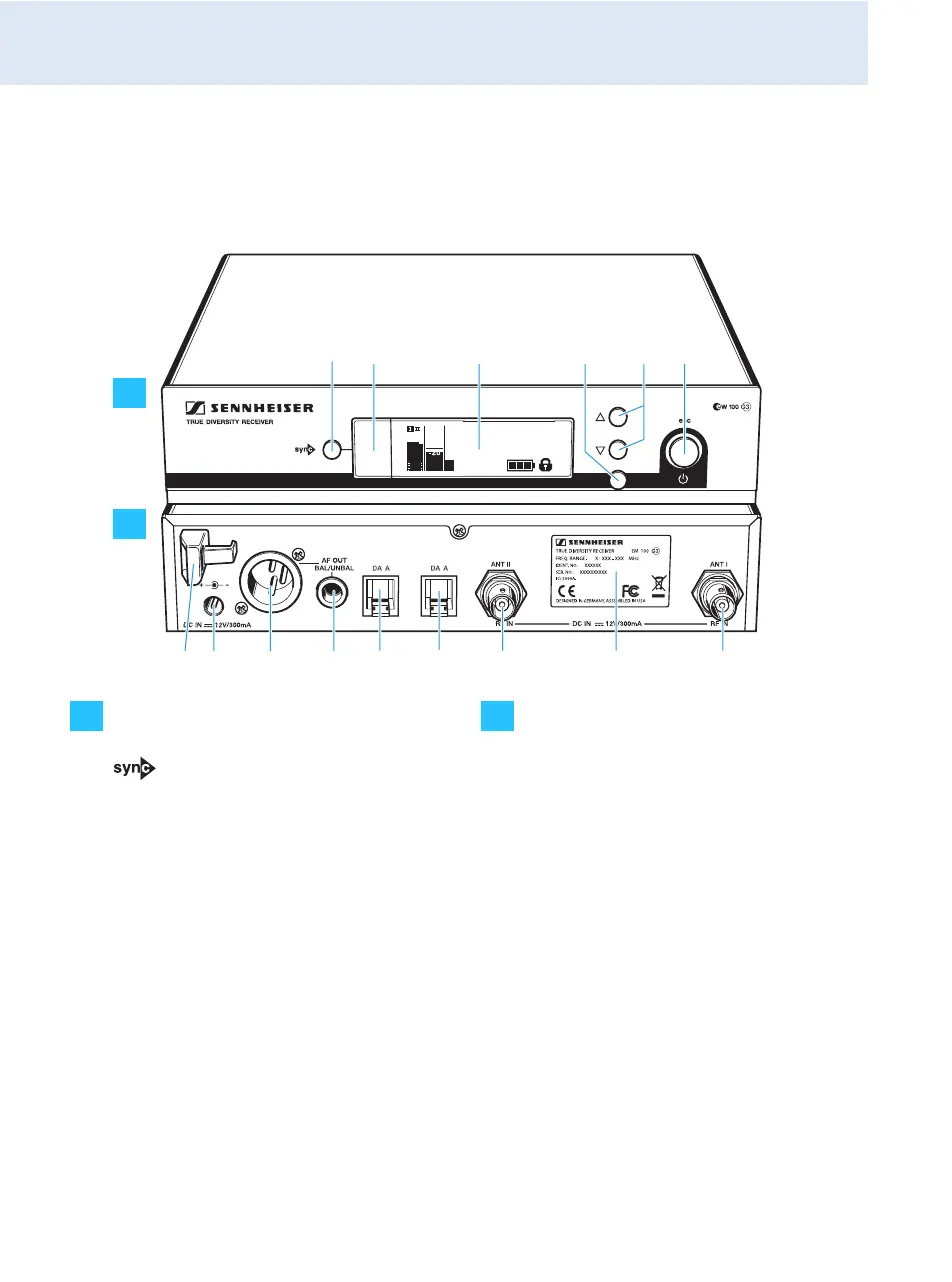

Operating elements – front panel Operating elements – rear panel
 button
 Infra-red interface
 Display panel, backlit in orange
 SET button
 UP/DOWN button
 STANDBY button;
ESC function (cancel)
 Cable grip for power supply DC cable
 DC socket (DC IN) for connection of
NT 2 mains unit
 Audio output (AF OUT BAL),
XLR-3M socket, balanced
 Audio output (AF OUT UNBAL),
¼” (6.3 mm) jack socket, unbalanced
 Service interface (DATA)
 Service interface (DATA)
 Antenna input II (ANT II) with remote
power supply input, BNC socket
 Type plate
 Antenna input I (ANT I) with remote
power supply input, BNC socket
