Putting the receiver into operation
16

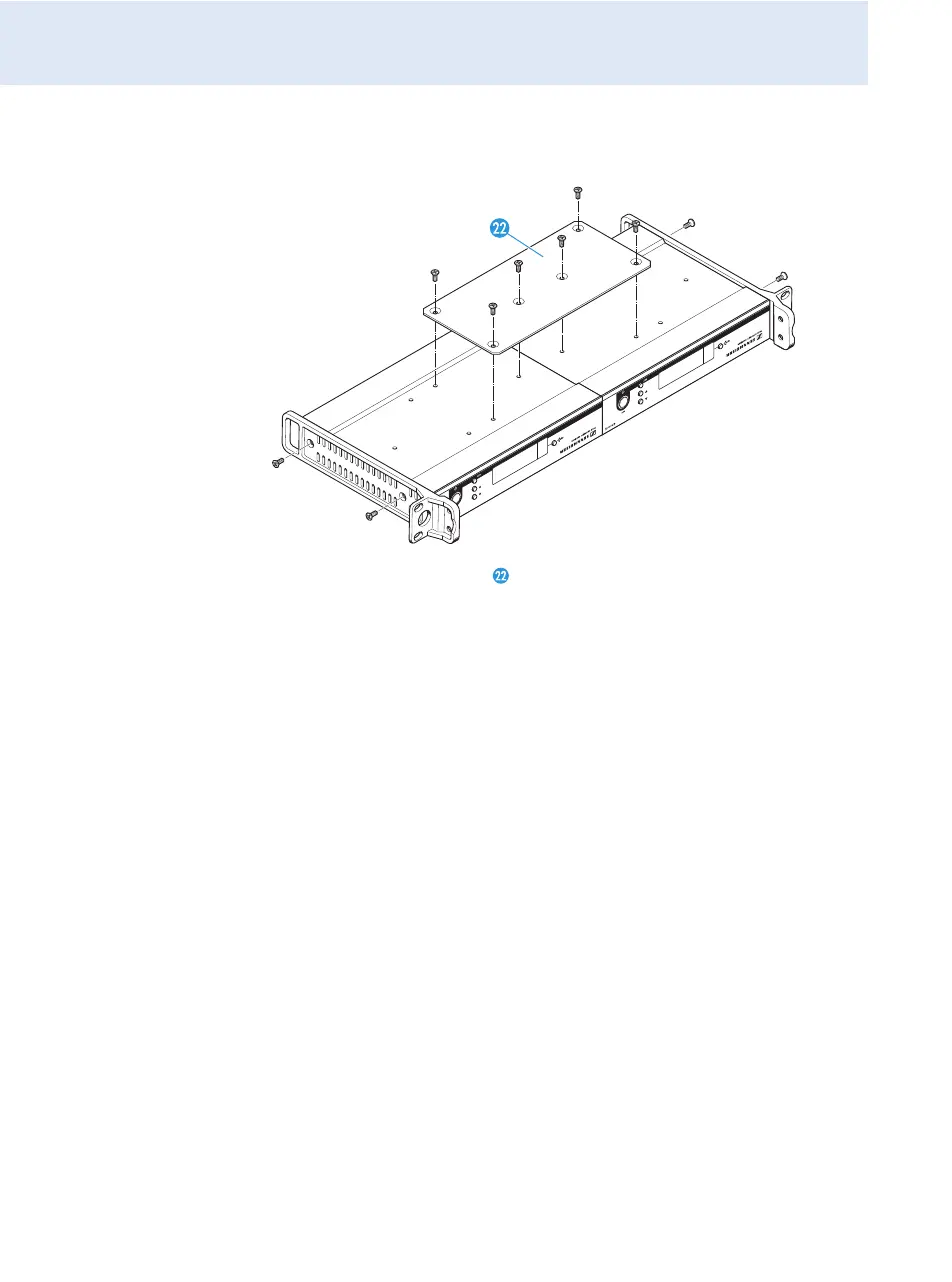

To mount the receivers into a rack using the GA 3 rack adapter:
왘 Place the two receivers side by side upside-down onto a flat surface.
왘 Secure the jointing plate to the receivers using six recessed head
screws (M 3x6).
The rack mount “ears” are mounted instead of the stacking elements:
왘 Secure the rack mount “ears” to the receivers in the same way as
described for the stacking elements (see page 11).
To mount the antennas:
왘 Use remote antennas, if necessary in conjunction with the ASA 1
antenna splitter (see “Accessories and spare parts” on page 49).
To mount the receivers into the rack:
왘 Slide the receivers into the 19” rack.
왘 Secure the rack mount “ears” to the 19” rack.
