SENNHEISER ELECTRONIC GMBH & CO. KG
COMPONENT MAINTENANCE MANUAL
HMEC 26-SERIES
Page 2004
Feb 10/10
23-41-48
Cable -BV-K
1 2
Audio Hi left (wh) Audio Hi right (or)
2
Microphone Hi (rd)
12 3
12 3
Connector assignment
3
Audio Lo (br)
3
Microphone Lo (bl/scr)
not assigned (yl)
or
br
wh
rd
scr *
bl
yl
br yl
scr * gr wh bl rd
or
PCB drawn as example
n.c. n.c.
n.c. n.c.
**
**
To avoid short circuits * cover the screen with commercial insulation tube. ** cover the soldering points of the battery contacts on the rear side with the delivered insulating foil
Figure 2004

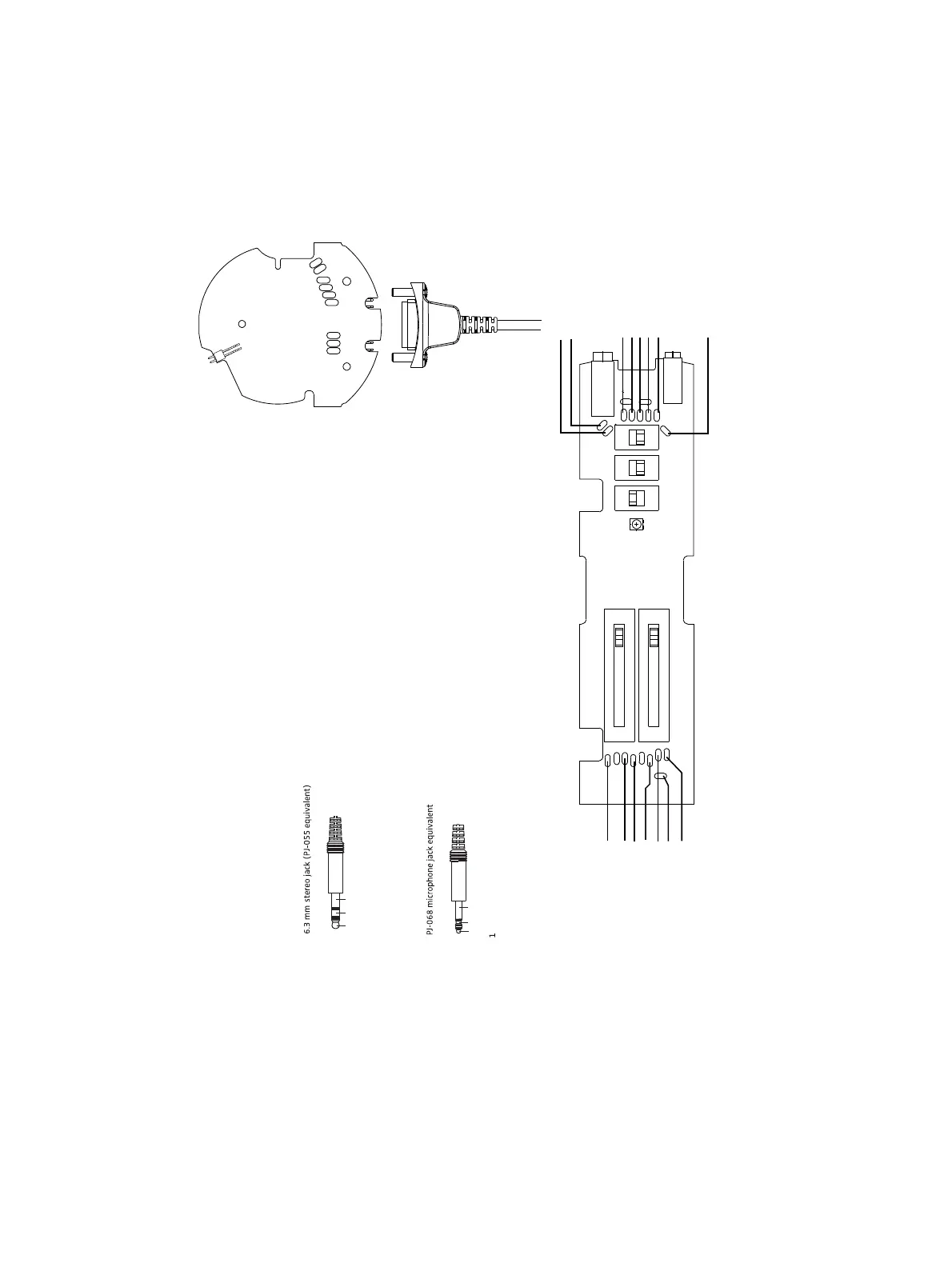

Wiring diagram Cable -BV-K
