Sennheiser HMEC 26 - Page 41

SENNHEISER ELECTRONIC GMBH & CO. KG
COMPONENT MAINTENANCE MANUAL
HMEC 26-SERIES
Page 2005
Feb 10/10
23-41-48
Connector assignment Cable -BV-CP
Solder side
1
2
3
4
5
1 2 3
Audio Hi (wh/or) Audio Lo / DC- (br/gr) Microphone Hi (rd)
4 5
Microphone Lo (bl/scr) NoiseGard DC+ (yl)
or
br
wh
rd
bl
yl
scr *
n.c.
gr
br yl
scr * gr wh bl rd
or
PCB drawn as example
n.c. n.c.
**
**
To avoid short circuits * cover the screen with commercial insulation tube. ** cover the soldering points of the battery contacts on the rear side with the delivered insulating foil
Figure 2005

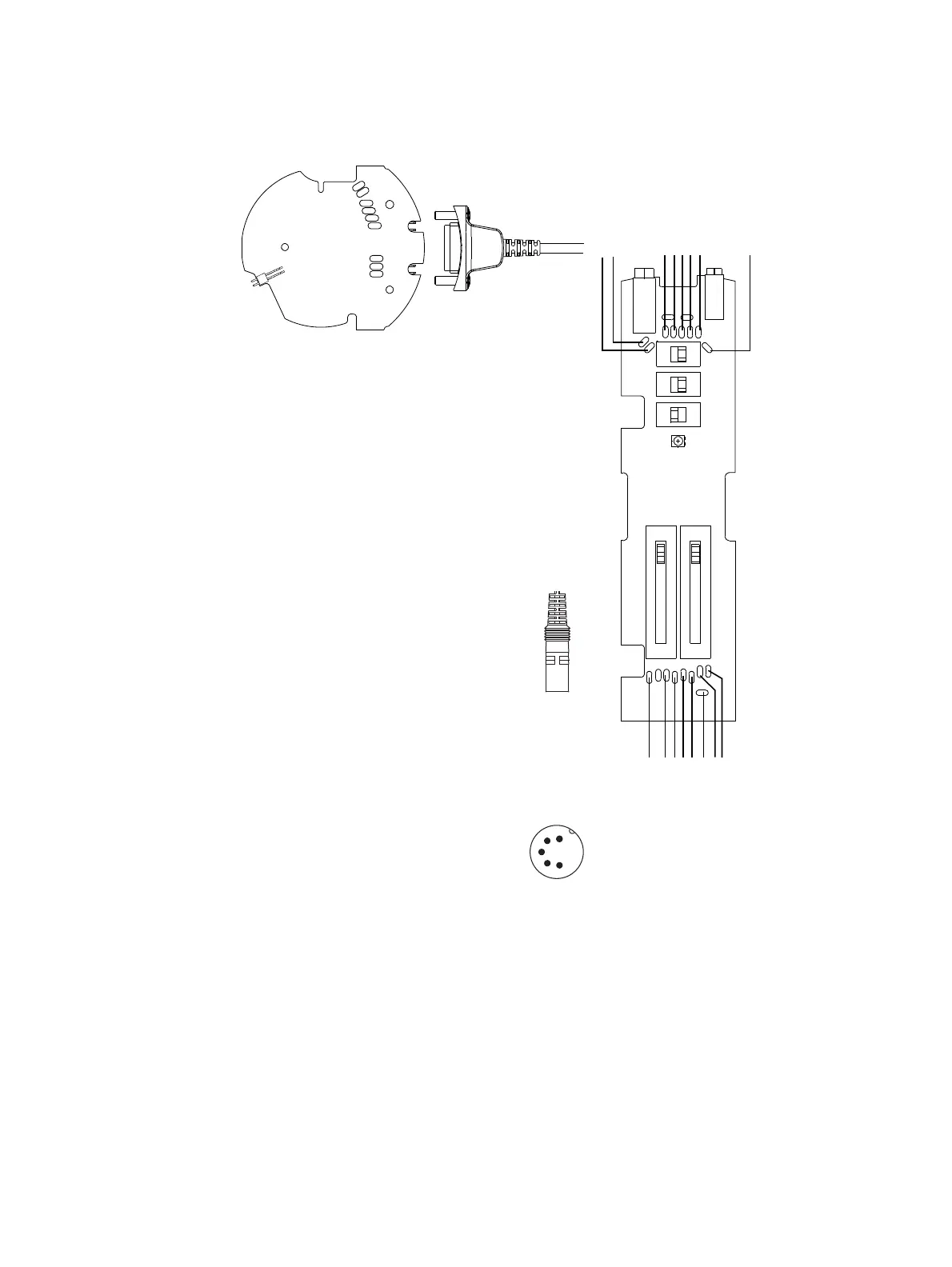

Wiring diagram Cable -BV-CP
Oct 30/08
