Chapter 8: Controlling the Output
103
&KDSWHU&RQWUROOLQJWKH2XWSXW
4HE3ENSAPHONEINCLUDESARELAYOUTPUTTHATCANBEUSEDTO
CONTROLALIGHTSIRENOROTHERDEVICE4HEOUTPUTISA&ORM#
.ORMALLY/PEN.ORMALLY#LOSEDMECHANICALRELAYANDISRATED
FORUPTO6!#6$#!!SAMPLEWIRINGDIAGRAMISSHOWN
below:

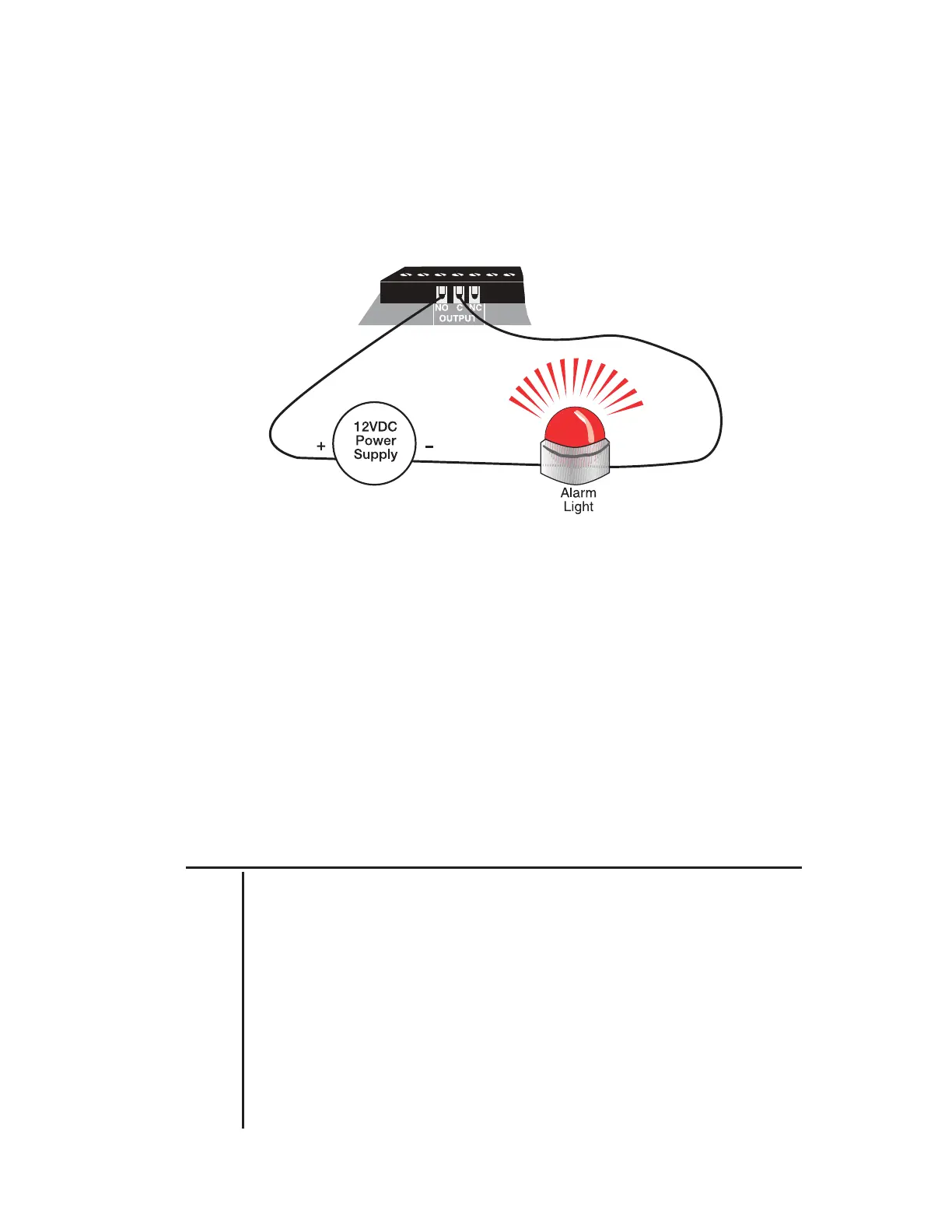

Figure 1: Relay output connected to alarm
4HEOUTPUTCANBEPROGRAMMEDTOOPERATEINONEOFAUTOMATIC
MODESORITCANOPERATEINMANUALMODEDEFAULT4HE
automatic modes allow the output to automatically turn on and
off based on individual alarms or any alarm. In manual mode the
OUTPUTISCONTROLLEDVIAKEYPADCOMMANDORREMOTELYVIATOUCH
tone phone. A description of each mode is described below.
8.1 Output Modes
-ODE $ESCRIPTION
1
Output on when zone 1 goes into alarm. Off when alarm is
acknowledged.
2
Output on when zone 2 goes into alarm. Off when alarm is
acknowledged.
3 Output on when zone 3 goes into alarm. Off when alarm is
acknowledged.
4 Output on when zone 4 goes into alarm. Off when alarm is
acknowledged.
5 Output on when zone 5 goes into alarm. Off when alarm is
acknowledged.
