MT3401E.doc rev.0 21/05/13 Pagina 78 di 86

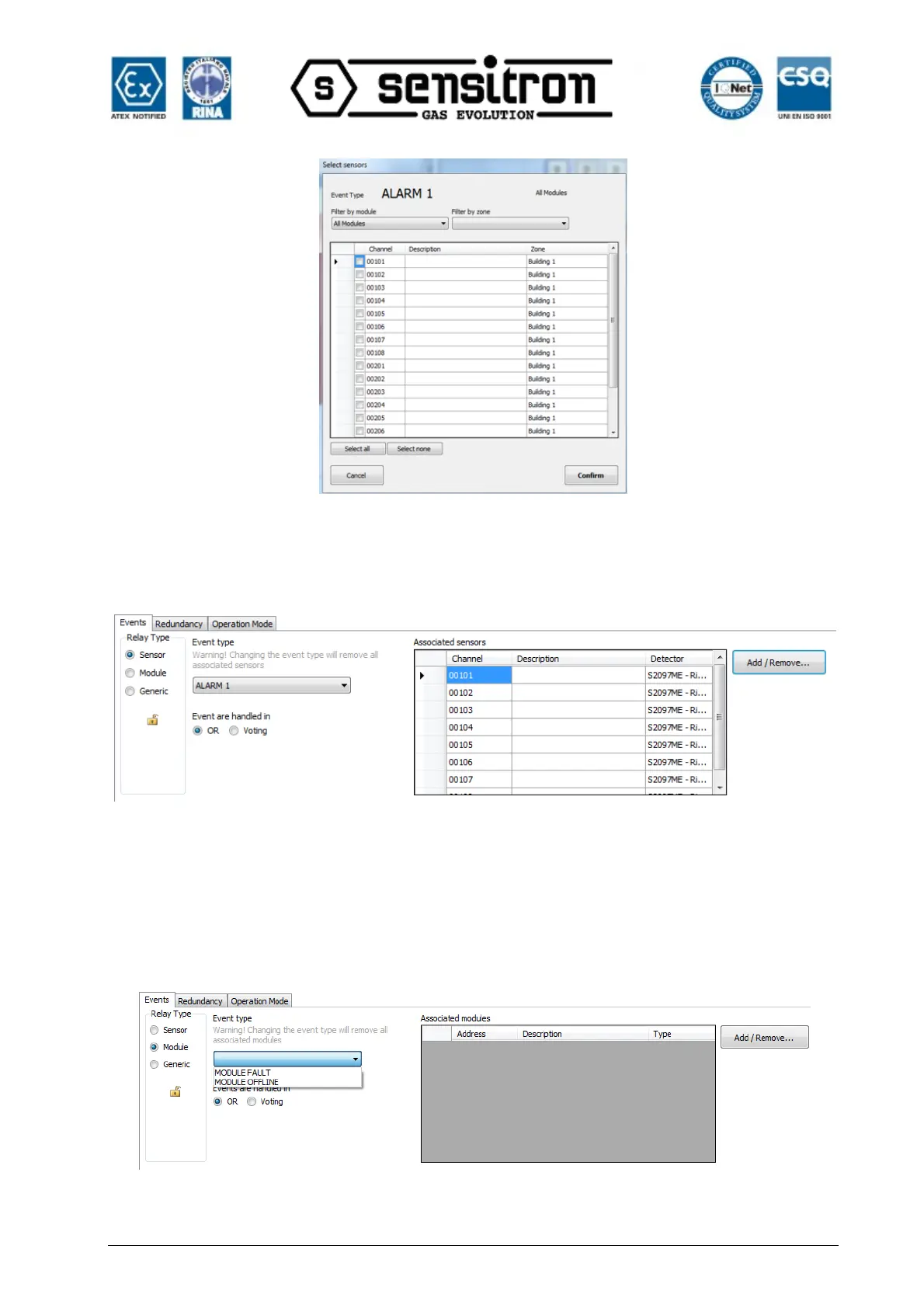

Fig. 4.5.6 e) Channel choice screen
After pushing the “Confirm” key, the output will be set with an event coming from one or
more sensors.
Fig. 4.5.6 f) Output setting summarizing screen
It is not possible to select different types of events associated to just one output. An
output set for the Alarm 1 cannot be set for the Alarm 2 or 3 as well.
Module event: Select Event Module to associate an output to a Fault or an Off Line
mode.
Fig. 4.5.6 g) Module output setting summarizing screen
